NI (National Instruments) PXIe-6739 16-Bit, 64-Channel, 1 MS/s PXI Analog Output Module

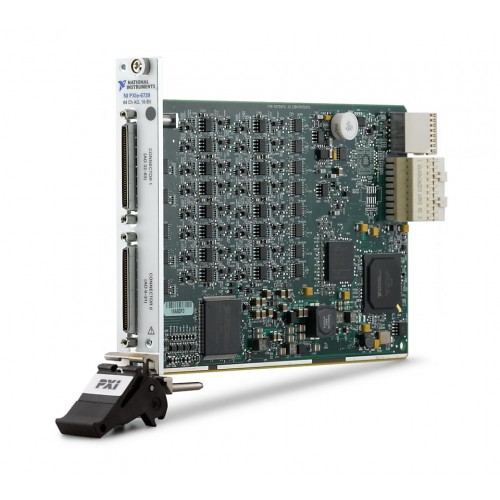

1 image: Click to enlarge
NI (National Instruments) · PXI Express

PXIe-6739

The NI PXIe-6739, part number 783801-01, is a PXI Express analog output module with 64 channels, 16-bit resolution, and a maximum analog update rate of 1 MS/s.

ManufacturerNI (National Instruments)
ModelPXIe-6739
Part Number783801-01
Product Type16-Bit, 64-Channel, 1 MS/s PXI Analog Output Module
● Available to Order
Condition: confirmed per unit

Request current pricing and lead time for this model. Our team will confirm the exact equipment configuration and condition.

Fast RFQ

Quote: PXIe-6739

We will reply by email.
Free Shippingfull policy linked
30-Day Warrantystandard coverage
30-Day Returnspolicy applies
Technical Supportmodel & compatibility help
Analog Output Channels64
Analog Output Resolution16 bits
Maximum Analog Update Rate1 MS/s
Analog Output Voltage Range-10 V to 10 V
Bus ConnectorPXI Express
Bus ConnectionPXI Express
SOHO Assistant
Ask about this exact model, a replacement, accessory, driver, rental or repair question.
Ask about specifications, compatibility, availability, rental or repair.
Ask SOHO Assistant
Overview

Product overview

Key product information and technical features.

The PXIe-6739 provides high-density analog voltage output in a PXI Express system. Its 64 output channels offer 16-bit resolution across a -10 V to 10 V range.

Alongside analog output, the module includes 20 bidirectional digital channels with 5 V TTL logic levels and four counters/timers. The front connection uses VHDCI, and the analog outputs are not isolated.

  • 64 analog output channels with 16-bit resolution.
  • Maximum analog update rate of 1 MS/s.
  • Analog voltage output range of -10 V to 10 V.
  • 20 bidirectional digital channels using 5 V TTL logic levels.
  • Four counters/timers, digital triggering, and advanced timing.
  • VHDCI front connection and maximum current drive of 10 mA.
Verified specifications

Technical data

Verified product specifications.

Number of Analog Output Channels64
Analog Output Resolution16 bits
Maximum Analog Update Rate1 MS/s
Analog Output Voltage Range-10 V to 10 V
Bus ConnectorPXI Express
Bus ConnectionPXI Express
Analog Output IsolationNone
Number of Bidirectional Digital Channels20
Digital I/O Logic Levels5 V TTL
Operating Temperature Range0 °C to 55 °C
Number of Counters/Timers4
Front Connection TypeVHDCI
Maximum Current Drive10 mA
NI part numbers783801-01
