NI (National Instruments) PXIe-6738 16-Bit, 32-Channel, 1 MS/s PXI Analog Output Module

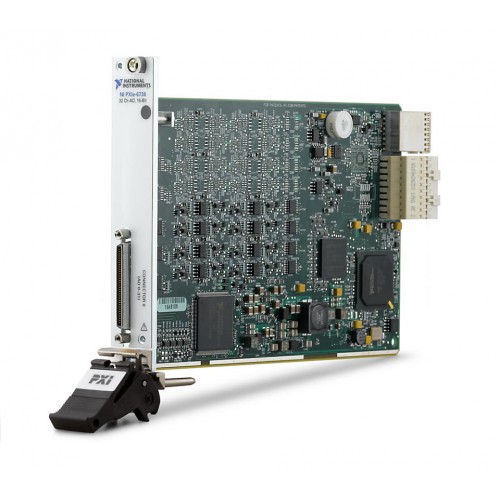

1 image: Click to enlarge
NI (National Instruments) · PXI Express

PXIe-6738

The NI PXIe-6738 is a 32-channel PXI Express analog output module with 16-bit resolution and a maximum analog update rate of 1 MS/s. It provides a -10 V to 10 V output range, digital I/O and four counters/timers.

ManufacturerNI (National Instruments)
ModelPXIe-6738
Part Number783800-01
Product Type16-Bit, 32-Channel, 1 MS/s PXI Analog Output Module
● Available to Order
Condition: confirmed per unit

Request current pricing and lead time for this model. Our team will confirm the exact equipment configuration and condition.

Fast RFQ

Quote: PXIe-6738

We will reply by email.
Free Shippingfull policy linked
30-Day Warrantystandard coverage
30-Day Returnspolicy applies
Technical Supportmodel & compatibility help
Analog Output Channels32
Analog Output Resolution16 bits
Maximum Analog Update Rate1 MS/s
Analog Output Voltage Range-10 V to 10 V
Bus ConnectorPXI Express
Bus ConnectionPXI Express
SOHO Assistant
Ask about this exact model, a replacement, accessory, driver, rental or repair question.
Ask about specifications, compatibility, availability, rental or repair.
Ask SOHO Assistant
Overview

Product overview

Key product information and technical features.

The PXIe-6738 provides high-density analog voltage output for PXI Express systems. Its 32 channels offer 16-bit resolution over a -10 V to 10 V range, with a specified maximum analog update rate of 1 MS/s.

Designed for applications including stimulus-response tests and open-loop simulations, the module also includes digital I/O, four counters/timers, digital triggering and advanced timing. Its front connection uses VHDCI.

  • 32 analog output channels with 16-bit resolution.
  • Maximum analog update rate of 1 MS/s.
  • Analog voltage output range of -10 V to 10 V.
  • 10 bidirectional digital channels with 5 V TTL logic levels.
  • Four counters/timers alongside digital triggering and advanced timing.
  • PXI Express interface with a VHDCI front connection.
Verified specifications

Technical data

Verified product specifications.

Number of Analog Output Channels32
Analog Output Resolution16 bits
Maximum Analog Update Rate1 MS/s
Analog Output Voltage Range-10 V to 10 V
Bus ConnectorPXI Express
Bus ConnectionPXI Express
Analog Output IsolationNone
Number of Bidirectional Digital Channels10
Digital I/O Logic Levels5 V TTL
Operating Temperature Range0 °C to 55 °C
Number of Counters/Timers4
Front Connection TypeVHDCI
Maximum Current Drive10 mA
NI part numbers783800-01
Condition & included items

What the actual unit includes

Confirm condition, included accessories and revision before ordering.

Condition

Confirmed per unit.

Included

Device / accessories confirmed in quote.

Revision

Exact revision confirmed when relevant.

Compatibility

Complete the measurement chain

Review system components and compatibility requirements.

NI

Manufacturer

PXI Express

Bus Connector

PXIe-6738

This product

Platform shown as listed by NI. Confirm controller, chassis and software fit for your system with NI before integration.
Manuals & software

Technical resources

Manuals, software and technical resources for this model.

Getting Started (NI)Getting Started · ni.com
Open →
Letter Of Volatility (NI)Letter Of Volatility · ni.com
Open →
Specifications (NI)Specifications · ni.com
Open →
Dimensional Drawings (NI)Dimensional Drawings · ni.com
Open →
Product Page (NI)Product Page · ni.com
Open →
Shipping, warranty & returns

Commercial terms

Review shipping, warranty and return terms before ordering.

Shipping
Free Shipping. Full policy terms apply.
Warranty
30-Day Warranty. Standard coverage applies.
Returns
30-Day Returns. Return policy applies.
Price / Availability
Contact SOHO ProLab for current quote and availability.
Lifecycle services

Source, rent or repair the exact model

Choose pricing, rental or repair for this exact model.

Get Price

Current price, availability and exact unit details.

Rent This Model

Request the exact model or a suitable alternative.

Repair This Model

Send the model and failure symptoms for review.

FAQ

Product-specific questions

Product-specific answers based on available technical information.

How many analog output channels does the PXIe-6738 provide?

It provides 32 analog output channels with 16-bit resolution and an output voltage range of -10 V to 10 V.

What is the maximum analog update rate?

The specified maximum analog update rate is 1 MS/s. Consult the NI specifications for operating conditions and timing details.

Does the PXIe-6738 include analog inputs or current outputs?

No. The preserved specifications list zero analog input channels and zero current output channels. Its analog outputs are voltage outputs.

What digital I/O and counters are included?

The module includes 10 bidirectional digital channels with 5 V TTL logic levels and four counters/timers.

What bus and front connection does it use?

The PXIe-6738 uses a PXI Express bus interface and a VHDCI front connection.

Ask SOHO AssistantProduct & compatibility help
