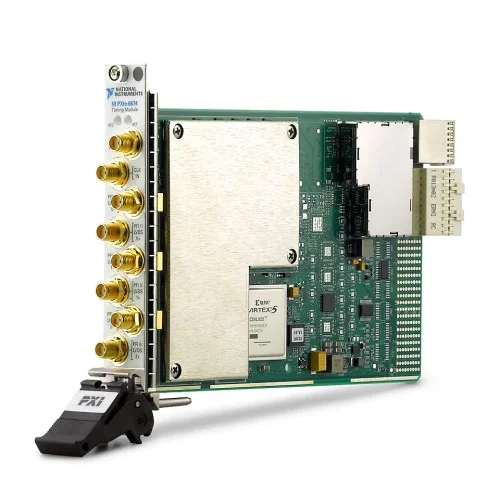

PXIe-6674T

The NI PXIe-6674T is a PXI Express timing and synchronization module with an OCXO reference, clock routing, and trigger access for PXI-based systems.

ManufacturerNI (National Instruments)

ModelPXIe-6674T

Part Number781037-01

Product TypePXIe, OCXO PXI Synchronization Module

● Available to Order

Condition: confirmed per unit

Request current pricing and lead time for this model. Our team will confirm the exact equipment configuration and condition.

Fast RFQ

Quote: PXIe-6674T

Free Shippingfull policy linked

30-Day Warrantystandard coverage

30-Day Returnspolicy applies

Technical Supportmodel & compatibility help

Bus ConnectorPXI Express System Timing

Onboard Clock TypeOCXO

Onboard Clock Accuracy80 ppb

Backplane Clock OverrideYes

Clock ImportYes

Clock ExportYes

SOHO Assistant

Ask about this exact model, a replacement, accessory, driver, rental or repair question.

Ask about specifications, compatibility, availability, rental or repair.

Ask SOHO Assistant

Overview

Product overview

Key product information and technical features.

The PXIe-6674T uses the PXI Express System Timing interface and an onboard OCXO clock with 80 ppb accuracy. It supports backplane clock override, clock import, and clock export.

The module generates and routes clocks and triggers between devices in a PXI Express chassis and to other PXI and PXI Express chassis or third-party instrumentation. Trigger access includes PXI_DSTAR, PXI_STAR, and PXI_TRIG, with support for PXIe-DStarA, PXIe-DStarB, and PXIe-DStarC LVDS trigger signals.

Onboard OCXO reference with 80 ppb clock accuracy.
Generates a stable 10 MHz clock from the precision OCXO reference and a second clock from the DDS clock generation circuit.
Supports backplane clock override, clock import, and clock export.
Provides PXI_DSTAR, PXI_STAR, and PXI_TRIG trigger access, including PXIe-DStarA, PXIe-DStarB, and PXIe-DStarC LVDS trigger signals.
Routes clocks and triggers within PXI Express systems and to external chassis or third-party instrumentation.

Verified specifications

Technical data

Verified product specifications.

Bus Connector	PXI Express System Timing
Onboard Clock Type	OCXO
Onboard Clock Accuracy	80 ppb
Backplane Clock Override	Yes
Clock Import	Yes
Clock Export	Yes
Trigger Access	PXI_DSTAR, PXI_STAR, PXI_TRIG
NI part numbers	781037-01
