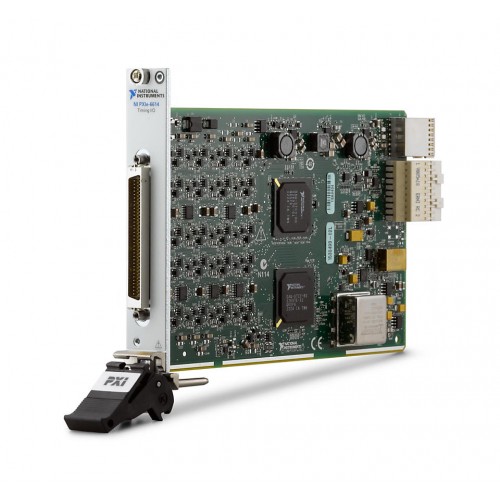

NI (National Instruments) PXIe-6614 PXIe, 5 V, 8-Channel, Precision Reference PXI Counter/Timer Module
1 image: Click to enlarge
NI (National Instruments) · PXI

PXIe-6614

The NI PXIe-6614, part number 782353-01, is a PXI Express precision counter/timer module with eight counter/timers and an onboard high-precision oscillator. It also provides 40 bidirectional digital channels with 5 V TTL logic levels.

ManufacturerNI (National Instruments)
ModelPXIe-6614
Part Number782353-01
Product TypePXIe, 5 V, 8-Channel, Precision Reference PXI Counter/Timer Module
● Available to Order
Condition: confirmed per unit

Request current pricing and lead time for this model. Our team will confirm the exact equipment configuration and condition.

Fast RFQ

Quote: PXIe-6614

We will reply by email.
Free Shippingfull policy linked
30-Day Warrantystandard coverage
30-Day Returnspolicy applies
Technical Supportmodel & compatibility help
Bus ConnectorPXI Express
Onboard High-Precision OscillatorYes
Number of Counters/Timers8
Measure Frequency80 MHz
Bus ConnectionPXI Express
Front Connection TypeSCSI Type
SOHO Assistant
Ask about this exact model, a replacement, accessory, driver, rental or repair question.
Ask about specifications, compatibility, availability, rental or repair.
Ask SOHO Assistant
Overview

Product overview

Key product information and technical features.

The PXIe-6614 supports encoder position measurement, event counting, period measurement, pulse-width measurement and frequency measurement. Its counter/timer functions also include pulse and pulse-train generation.

The module combines an onboard high-precision oscillator with digital debouncing filters and TTL/CMOS-compatible digital I/O. It belongs to the PXI platform and uses a PXI Express bus connection.

  • Eight counter/timers for measurement and pulse-generation functions.
  • Onboard high-precision oscillator for precision reference applications.
  • 40 bidirectional digital channels with 5 V TTL logic levels.
  • PXI Express bus interface and SCSI Type front connection.
  • Digital debouncing filters.
  • Operating temperature range of 0 °C to 55 °C.
Verified specifications

Technical data

Verified product specifications.

Bus ConnectorPXI Express
Onboard High-Precision OscillatorYes
Number of Counters/Timers8
Measure Frequency80 MHz
Bus ConnectionPXI Express
Front Connection TypeSCSI Type
Number of Bidirectional Digital Channels40
Digital I/O Logic Levels5 V TTL
Operating Temperature Range0 °C to 55 °C
Supported Hardware PlatformPXI
NI part numbers782353-01
Condition & included items

What the actual unit includes

Confirm condition, included accessories and revision before ordering.

Condition

Confirmed per unit.

Included

Device / accessories confirmed in quote.

Revision

Exact revision confirmed when relevant.

Compatibility

Complete the measurement chain

Review system components and compatibility requirements.

NI

Manufacturer

PXI

Supported Hardware Platform

PXIe-6614

This product

Platform shown as listed by NI. Confirm controller, chassis and software fit for your system with NI before integration.
Manuals & software

Technical resources

Manuals, software and technical resources for this model.

Getting Started (NI)Getting Started · ni.com
Open →
Specifications (NI)Specifications · ni.com
Open →
Letter Of Volatility (NI)Letter Of Volatility · ni.com
Open →
Dimensional Drawings (NI)Dimensional Drawings · ni.com
Open →
Product Page (NI)Product Page · ni.com
Open →
Shipping, warranty & returns

Commercial terms

Review shipping, warranty and return terms before ordering.

Shipping
Free Shipping. Full policy terms apply.
Warranty
30-Day Warranty. Standard coverage applies.
Returns
30-Day Returns. Return policy applies.
Price / Availability
Contact SOHO ProLab for current quote and availability.
Lifecycle services

Source, rent or repair the exact model

Choose pricing, rental or repair for this exact model.

Get Price

Current price, availability and exact unit details.

Rent This Model

Request the exact model or a suitable alternative.

Repair This Model

Send the model and failure symptoms for review.

FAQ

Product-specific questions

Product-specific answers based on available technical information.

What is the NI part number for the PXIe-6614?

The listed NI part number is 782353-01.

What measurements and functions does the PXIe-6614 support?

It supports encoder position measurement, event counting, period measurement, pulse-width measurement, frequency measurement, pulse generation and pulse-train generation.

How many counter/timers and digital channels does it provide?

The PXIe-6614 provides eight counter/timers and 40 bidirectional digital channels.

What digital I/O logic level does it use?

The listed digital I/O logic level is 5 V TTL.

Does the PXIe-6614 provide analog inputs?

No. The listed number of analog input channels is zero.
