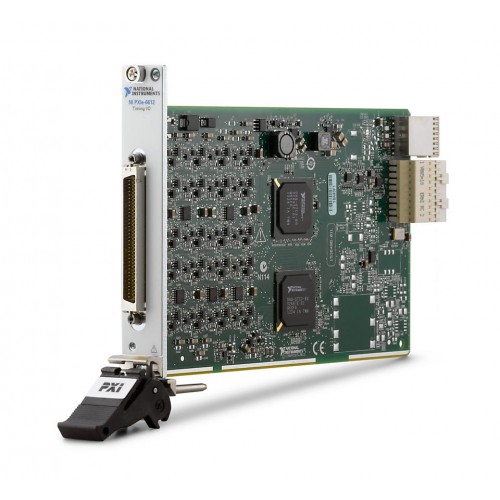

NI (National Instruments) PXIe-6612 PXIe, 5 V, 8-Channel PXI Counter/Timer Module
1 image: Click to enlarge
NI (National Instruments) · PXI

PXIe-6612

The NI PXIe-6612, part number 782352-01, is a PXI Express counter/timer module with eight counter/timers and 40 bidirectional digital channels.

ManufacturerNI (National Instruments)
ModelPXIe-6612
Part Number782352-01
Product TypePXIe, 5 V, 8-Channel PXI Counter/Timer Module
● Available to Order
Condition: confirmed per unit

Request current pricing and lead time for this model. Our team will confirm the exact equipment configuration and condition.

Fast RFQ

Quote: PXIe-6612

We will reply by email.
Free Shippingfull policy linked
30-Day Warrantystandard coverage
30-Day Returnspolicy applies
Technical Supportmodel & compatibility help
Bus ConnectorPXI Express
Number of Counters/Timers8
Measure Frequency80 MHz
Bus ConnectionPXI Express
Front Connection TypeSCSI Type
Onboard High-Precision OscillatorNo
SOHO Assistant
Ask about this exact model, a replacement, accessory, driver, rental or repair question.
Ask about specifications, compatibility, availability, rental or repair.
Ask SOHO Assistant
Overview

Product overview

Key product information and technical features.

The PXIe-6612 provides counter/timer functions within the PXI platform through a PXI Express interface. It performs encoder position measurement, event counting, period measurement, pulse-width measurement, frequency measurement, pulse generation and pulse-train generation.

The module includes digital debouncing filters, TTL/CMOS-compatible digital I/O and support for three simultaneous high-speed DMA transfers. Its specified operating temperature range is 0 °C to 55 °C.

  • Eight counter/timers for counting, timing and pulse-generation tasks.
  • Forty bidirectional digital channels with 5 V TTL logic levels.
  • Supports encoder position, frequency, period and pulse-width measurements.
  • Digital debouncing filters for input signal processing.
  • Supports three simultaneous high-speed DMA transfers.
Verified specifications

Technical data

Verified product specifications.

Bus ConnectorPXI Express
Onboard High-Precision OscillatorNo
Number of Counters/Timers8
Measure Frequency80 MHz
Bus ConnectionPXI Express
Front Connection TypeSCSI Type
Number of Bidirectional Digital Channels40
Digital I/O Logic Levels5 V TTL
Operating Temperature Range0 °C to 55 °C
Supported Hardware PlatformPXI
NI part numbers782352-01
Condition & included items

What the actual unit includes

Confirm condition, included accessories and revision before ordering.

Condition

Confirmed per unit.

Included

Device / accessories confirmed in quote.

Revision

Exact revision confirmed when relevant.

Compatibility

Complete the measurement chain

Review system components and compatibility requirements.

NI

Manufacturer

PXI

Supported Hardware Platform

PXIe-6612

This product

Platform shown as listed by NI. Confirm controller, chassis and software fit for your system with NI before integration.
Manuals & software

Technical resources

Manuals, software and technical resources for this model.

Getting Started (NI)Getting Started · ni.com
Open →
Letter Of Volatility (NI)Letter Of Volatility · ni.com
Open →
Specifications (NI)Specifications · ni.com
Open →
Dimensional Drawings (NI)Dimensional Drawings · ni.com
Open →
Product Page (NI)Product Page · ni.com
Open →
Shipping, warranty & returns

Commercial terms

Review shipping, warranty and return terms before ordering.

Shipping
Free Shipping. Full policy terms apply.
Warranty
30-Day Warranty. Standard coverage applies.
Returns
30-Day Returns. Return policy applies.
Price / Availability
Contact SOHO ProLab for current quote and availability.
Lifecycle services

Source, rent or repair the exact model

Choose pricing, rental or repair for this exact model.

Get Price

Current price, availability and exact unit details.

Rent This Model

Request the exact model or a suitable alternative.

Repair This Model

Send the model and failure symptoms for review.

FAQ

Product-specific questions

Product-specific answers based on available technical information.

How many counter/timers does the PXIe-6612 have?

The PXIe-6612 has eight counter/timers and 40 bidirectional digital channels.

What measurement and generation functions does it support?

It supports encoder position measurement, event counting, period measurement, pulse-width measurement, frequency measurement, pulse generation and pulse-train generation.

Does the PXIe-6612 include a high-precision oscillator?

No. The supplied verified specification lists no onboard high-precision oscillator.

Which bus interface does the PXIe-6612 use?

It uses PXI Express. Confirm that the intended chassis slot supports this interface before integration.
