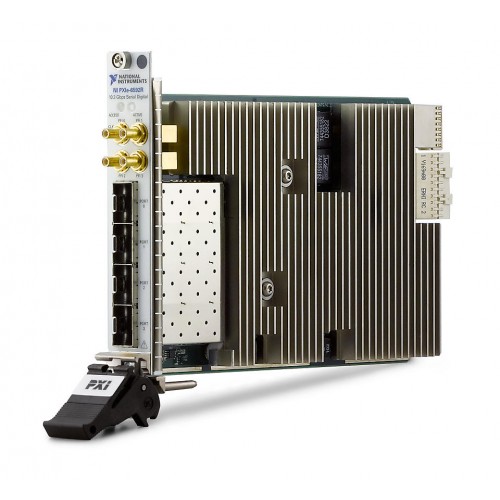

PXIe-6592

The NI PXIe-6592 is a reconfigurable PXI Express high-speed serial instrument with 4 serial channels and a maximum data rate of 10.31 Gbits/s. It includes a Kintex-7 410T FPGA and 2 GB of DRAM.

ManufacturerNI (National Instruments)

ModelPXIe-6592

Part Number783639-01

Product TypePXIe, 10 Gbps, 4-Channel PXI High-Speed Serial Instrument

● Available to Order

Condition: confirmed per unit

Request current pricing and lead time for this model. Our team will confirm the exact equipment configuration and condition.

Fast RFQ

Quote: PXIe-6592

Free Shippingfull policy linked

30-Day Warrantystandard coverage

30-Day Returnspolicy applies

Technical Supportmodel & compatibility help

Bidirectional Digital Channels4

Maximum Data Rate10.31 Gbits/s

Dynamic RAM (DRAM)2 GB

PXI Backplane LinkPCI-Express Gen2 x 8

FPGAKintex-7 410T

Operating Temperature Range0 °C to 45 °C

SOHO Assistant

Ask about this exact model, a replacement, accessory, driver, rental or repair question.

Ask about specifications, compatibility, availability, rental or repair.

Ask SOHO Assistant

Overview

Product overview

Key product information and technical features.

The PXIe-6592 is designed to validate, interface with, and test serial protocols. Its Xilinx Kintex-7 FPGA is programmable in LabVIEW FPGA for application-specific customization and reuse.

The instrument provides 4 serial channels with up to 4 transmit and 4 receive lanes. Onboard resources include 2 GB of DRAM and a PCI Express Gen2 x8 backplane link, with support for peer-to-peer streaming.

Four serial channels with a maximum data rate of 10.31 Gbits/s.
Reconfigurable Kintex-7 410T FPGA with 28.6 Mbit of block RAM and 1540 DSP slices.
2 GB of onboard DRAM and a PCI Express Gen2 x8 backplane link.
Supports peer-to-peer streaming.
Front connections include SFP+ and SMB; auxiliary I/O includes 4 HSS and 4 GPIO.
Digital I/O supports logic levels of 1.2 V, 1.5 V, 1.8 V, 2.5 V, and 3.3 V.

Verified specifications

Technical data

Verified product specifications.

Number of Bidirectional Digital Channels	4
Maximum Data Rate	10.31 Gbits/s
Dynamic RAM (DRAM)	2 GB
PXI Backplane Link	PCI-Express Gen2 x 8
FPGA	Kintex-7 410T
Operating Temperature Range	0 °C to 45 °C
Front Connection Type	SFP+, SMB
Isolation Type	None
Number of Serial Channels	4
Supported Hardware Platform	PXI
Reconfigurable	Yes
Supports Peer To Peer Streaming	Yes
Bus Connection	PXI Express
Digital I/O Termination	10 kOhm
Digital I/O Logic Levels	1.2 V, 1.5 V, 1.8 V, 2.5 V, 3.3 V
Output Voltage Range	0 V to 3.3 V
Maximum Clock Rate	500 MHz
Module Width	1
Number of External Clock Inputs	1
Signaling Type	Single-Ended
Auxiliary I/O	4 HSS, 4 GPIO
Block RAM (BRAM)	28.6 Mbit
DSP Slices	1540
NI part numbers	783639-01
