NI (National Instruments) · PXI

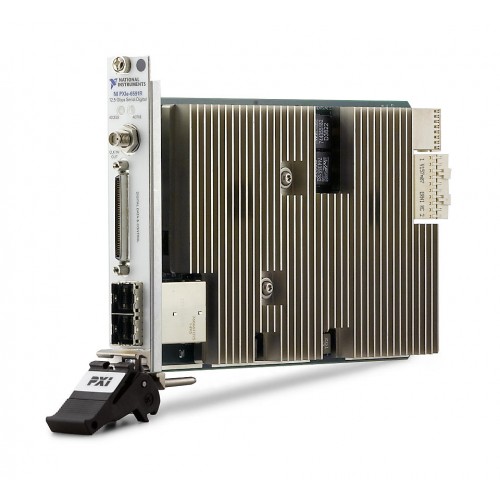

PXIe-6591

The NI PXIe-6591 is an 8-channel PXI Express high-speed serial instrument with a maximum data rate of 12.5 Gbit/s. Its reconfigurable architecture combines a Kintex-7 410T FPGA with 2 GB of DRAM.

ManufacturerNI (National Instruments)

ModelPXIe-6591

Part Number783638-01

Product TypePXIe, 12.5 Gbps, 8-Channel PXI High-Speed Serial Instrument

● Available to Order

Condition: confirmed per unit

Request current pricing and lead time for this model. Our team will confirm the exact equipment configuration and condition.

Fast RFQ

Quote: PXIe-6591

Free Shippingfull policy linked

30-Day Warrantystandard coverage

30-Day Returnspolicy applies

Technical Supportmodel & compatibility help

Bidirectional Digital Channels8

Maximum Data Rate12.5 Gbits/s

Dynamic RAM (DRAM)2 GB

PXI Backplane LinkPCI-Express Gen2 x 8

FPGAKintex-7 410T

Operating Temperature Range0 °C to 45 °C

SOHO Assistant

Ask about this exact model, a replacement, accessory, driver, rental or repair question.

Ask about specifications, compatibility, availability, rental or repair.

Ask SOHO Assistant

Overview

Product overview

Key product information and technical features.

The PXIe-6591 is designed to validate, interface through and test serial protocols. It uses FPGA multigigabit transceivers with up to eight transmit and receive lanes in a PXI Express module.

The instrument includes digital I/O supporting multiple logic families with per-line, per-cycle direction control. Programming through the LabVIEW FPGA Module enables application-specific customization and reuse.

Eight serial channels and eight bidirectional digital channels.
Maximum serial data rate of 12.5 Gbit/s.
Kintex-7 410T FPGA with 2 GB DRAM, 28.6 Mbit block RAM and 1,540 DSP slices.
Single-slot PXI Express module with a PCI Express Gen2 x8 backplane link.
Reconfigurable architecture with peer-to-peer streaming support.
Front connections include VHDCI, SMA and Mini-SAS HD.

Verified specifications

Technical data

Verified product specifications.

Number of Bidirectional Digital Channels	8
Maximum Data Rate	12.5 Gbits/s
Dynamic RAM (DRAM)	2 GB
PXI Backplane Link	PCI-Express Gen2 x 8
FPGA	Kintex-7 410T
Operating Temperature Range	0 °C to 45 °C
Front Connection Type	VHDCI, SMA, Mini-SAS HD
Isolation Type	None
Number of Serial Channels	8
Supported Hardware Platform	PXI
Reconfigurable	Yes
Supports Peer To Peer Streaming	Yes
Bus Connection	PXI Express
Digital I/O Termination	50 kOhm
Digital I/O Logic Levels	1.2 V, 1.5 V, 1.8 V, 2.5 V, 3.3 V
Output Voltage Range	0 V to 3.3 V
Maximum Clock Rate	500 MHz
Module Width	1
Number of External Clock Inputs	1
Signaling Type	Single-Ended
Auxiliary I/O	4 HSS, 20 GPIO
Block RAM (BRAM)	28.6 Mbit
DSP Slices	1540
NI part numbers	783638-01

Condition & included items

What the actual unit includes

Confirm condition, included accessories and revision before ordering.

Condition

Confirmed per unit.

Included

Device / accessories confirmed in quote.

Revision

Exact revision confirmed when relevant.

Compatibility

Complete the measurement chain

Review system components and compatibility requirements.

NI

Manufacturer

PXI

Supported Hardware Platform

PXIe-6591

This product

Platform shown as listed by NI. Confirm controller, chassis and software fit for your system with NI before integration.

Manuals & software

Technical resources

Manuals, software and technical resources for this model.

Getting Started (NI)Getting Started · ni.com

Open →

Specifications (NI)Specifications · ni.com

Open →

Dimensional Drawings (NI)Dimensional Drawings · ni.com

Open →

Product Page (NI)Product Page · ni.com

Open →

Shipping, warranty & returns

Commercial terms

Review shipping, warranty and return terms before ordering.

Shipping

Free Shipping. Full policy terms apply.

Warranty

30-Day Warranty. Standard coverage applies.

Returns

30-Day Returns. Return policy applies.

Price / Availability

Contact SOHO ProLab for current quote and availability.

Lifecycle services

Source, rent or repair the exact model

Choose pricing, rental or repair for this exact model.

Get Price

Current price, availability and exact unit details.

Rent This Model

Request the exact model or a suitable alternative.

Repair This Model

Send the model and failure symptoms for review.

Explore equipment

Electronic Test and Instrumentation

Shipping, warranty and returns

FAQ

Product-specific questions

Product-specific answers based on available technical information.

What is the listed NI part number?

The retained catalog part number is 783638-01. The existing part-number evidence describes it as the NI PXIe-6591R high-speed serial instrument; this catalog record retains the PXIe-6591 model name.

How many channels does the PXIe-6591 provide?

The retained specifications list eight serial channels and eight bidirectional digital channels.

Is the PXIe-6591 reconfigurable?

Yes. It uses a Kintex-7 410T FPGA, supports application-specific programming through the LabVIEW FPGA Module and supports peer-to-peer streaming.

What are the operating temperature limits?

The specified operating temperature range is 0 °C to 45 °C.
