NI (National Instruments) · PXI

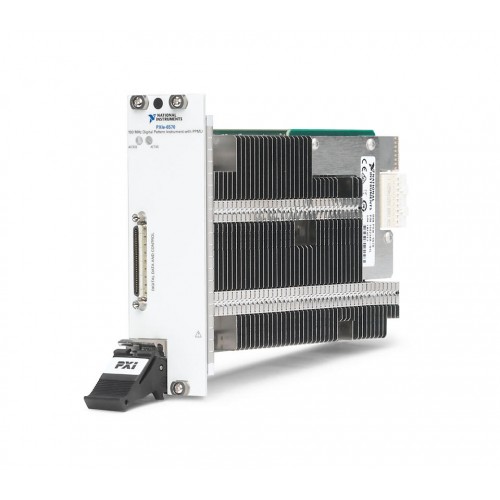

PXIe-6570

The NI PXIe-6570 is a 32-channel digital pattern instrument with a PXI Express interface and a 2-slot module width. It supports a 100 MVector/s pattern rate and a maximum clock rate of 200 MHz.

ManufacturerNI (National Instruments)

ModelPXIe-6570

Part Number785283-01

Product Type2-Slot, 100 MVector/s PXI Digital Pattern Instrument

● Available to Order

Condition: confirmed per unit

Request current pricing and lead time for this model. Our team will confirm the exact equipment configuration and condition.

Fast RFQ

Quote: PXIe-6570

Free Shippingfull policy linked

30-Day Warrantystandard coverage

30-Day Returnspolicy applies

Technical Supportmodel & compatibility help

Maximum Active Load24 mA

Module Width2

Bidirectional Digital Channels32

Supported Hardware PlatformPXI

Bus ConnectionPXI Express

Output Voltage Range-2 V to 6 V

SOHO Assistant

Ask about this exact model, a replacement, accessory, driver, rental or repair question.

Ask about specifications, compatibility, availability, rental or repair.

Ask SOHO Assistant

Overview

Product overview

Key product information and technical features.

The PXIe-6570 is a 2-slot, 100 MVector/s PXI digital pattern instrument with 32 bidirectional digital channels. It connects through PXI Express and is listed under NI part number 785283-01.

Designed for semiconductor characterization and production test, the instrument uses the Digital Pattern Editor to configure pin maps, specifications, levels, timing, and patterns. Debugging tools include Shmoo, a digital scope, and viewers for history RAM, pin states, and system status.

32 bidirectional digital channels for digital pattern testing.
100 MVector/s pattern rate and a maximum clock rate of 200 MHz.
Digital input and output voltage ranges of -2 V to 6 V.
Maximum active load of 24 mA.
PXI Express bus connection in a 2-slot module.
Digital Pattern Editor configuration tools, Shmoo, digital scope, and history RAM, pin-state, and system-status viewers.

Verified specifications

Technical data

Verified product specifications.

Maximum Active Load	24 mA
Module Width	2
Number of Bidirectional Digital Channels	32
Supported Hardware Platform	PXI
Bus Connection	PXI Express
Output Voltage Range	-2 V to 6 V
Maximum Clock Rate	200 MHz
Digital Input Voltage Range	-2 V to 6 V
NI part numbers	785283-01

Condition & included items

What the actual unit includes

Confirm condition, included accessories and revision before ordering.

Condition

Confirmed per unit.

Included

Device / accessories confirmed in quote.

Revision

Exact revision confirmed when relevant.

Compatibility

Complete the measurement chain

Review system components and compatibility requirements.

NI

Manufacturer

PXI

Supported Hardware Platform

PXIe-6570

This product

Platform shown as listed by NI. Confirm controller, chassis and software fit for your system with NI before integration.

Manuals & software

Technical resources

Manuals, software and technical resources for this model.

Letter Of Volatility (NI)Letter Of Volatility · ni.com

Open →

Specifications (NI)Specifications · ni.com

Open →

User Manual (NI)User Manual · ni.com

Open →

Dimensional Drawings (NI)Dimensional Drawings · ni.com

Open →

Product Page (NI)Product Page · ni.com

Open →

Shipping, warranty & returns

Commercial terms

Review shipping, warranty and return terms before ordering.

Shipping

Free Shipping. Full policy terms apply.

Warranty

30-Day Warranty. Standard coverage applies.

Returns

30-Day Returns. Return policy applies.

Price / Availability

Contact SOHO ProLab for current quote and availability.

Lifecycle services

Source, rent or repair the exact model

Choose pricing, rental or repair for this exact model.

Get Price

Current price, availability and exact unit details.

Rent This Model

Request the exact model or a suitable alternative.

Repair This Model

Send the model and failure symptoms for review.

Explore equipment

Electronic Test and Instrumentation

Shipping, warranty and returns

FAQ

Product-specific questions

Product-specific answers based on available technical information.

What is the NI part number for the PXIe-6570?

The listed NI part number is 785283-01.

How many digital channels does the PXIe-6570 have?

It has 32 bidirectional digital channels.

What are the digital input and output voltage ranges?

Both the digital input voltage range and the output voltage range are -2 V to 6 V.

What interface and module width does it use?

The PXIe-6570 uses a PXI Express bus connection and occupies 2 slots.

What configuration and debugging tools are associated with the PXIe-6570?

The Digital Pattern Editor supports configuration of pin maps, specifications, levels, timing, and patterns. Debugging tools include Shmoo, a digital scope, and viewers for history RAM, pin states, and system status.
