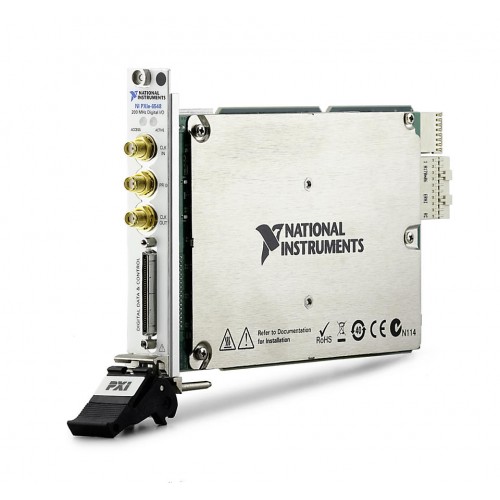

PXIe-6548

The NI PXIe-6548 is a PXI Express digital waveform instrument with 32 bidirectional digital channels, programmable 1.2 V to 3.3 V logic levels, and hardware compare support. Its maximum clock rate is 200 MHz.

ManufacturerNI (National Instruments)

ModelPXIe-6548

Part Number781012-02 · 781012-03

Product TypePXIe, 200 MHz, 32-Channel PXI Digital Waveform Instrument

● Available to Order

Condition: confirmed per unit

Request current pricing and lead time for this model. Our team will confirm the exact equipment configuration and condition.

Fast RFQ

Quote: PXIe-6548

Free Shippingfull policy linked

30-Day Warrantystandard coverage

30-Day Returnspolicy applies

Technical Supportmodel & compatibility help

Bidirectional Digital Channels32

Logic Levels And RangeProgrammable, 1.2V - 3.3V, 1.2V - 3.3V

Supports Hardware CompareYes

Signaling TypeSingle-Ended

Active LoadNo

Supports PMUNo

SOHO Assistant

Ask about this exact model, a replacement, accessory, driver, rental or repair question.

Ask about specifications, compatibility, availability, rental or repair.

Ask SOHO Assistant

Overview

Product overview

Key product information and technical features.

The PXIe-6548 combines digital waveform generation and analysis for interfacing and basic characterization testing. Its 32 single-ended digital pins support programmable voltage levels with 100 mV resolution.

The module uses a PXI Express bus connection and occupies one module width. Advanced synchronization, hardware comparison for bit-error testing, and per-bank digital timing features support coordinated digital test setups.

32 bidirectional digital channels with single-ended signaling.
Programmable digital I/O logic levels with a 1.2 V to 3.3 V output voltage range.
Maximum clock rate of 200 MHz, generation rate of 400 Mbits/s, and acquisition rate of 300 Mbits/s.
Hardware compare support for bit-error testing.
Advanced synchronization and per-bank digital timing features.
50 kΩ digital I/O termination; no active load or PMU support.

Verified specifications

Technical data

Verified product specifications.

Active Load	No
Number of Bidirectional Digital Channels	32
Logic Levels And Range	Programmable, 1.2V - 3.3V, 1.2V - 3.3V
Supports Hardware Compare	Yes
Supports PMU	No
Signaling Type	Single-Ended
Maximum Generation Rate	400 Mbits/s
Maximum Acquisition Rate	300 Mbits/s
Supported Hardware Platform	PXI
Bus Connection	PXI Express
Digital I/O Termination	50 kOhm
Digital I/O Logic Levels	Programmable
Output Voltage Range	1.2 V to 3.3 V
Maximum Clock Rate	200 MHz
Maximum Data Rate	400 Mbits/s
Module Width	1
NI part numbers	781012-02, 781012-03
