PXIe-6547

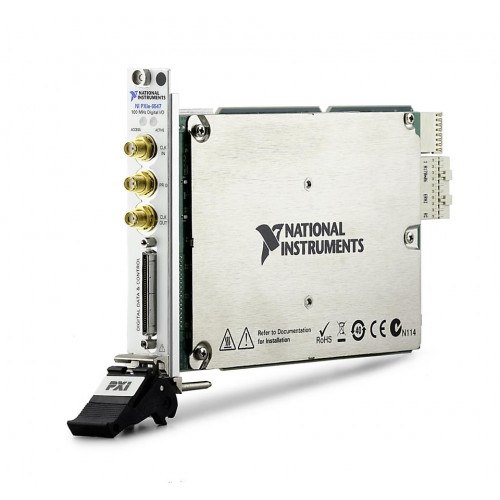

The NI PXIe-6547 is a PXI Express digital waveform instrument with 32 bidirectional, single-ended digital channels, programmable 1.2 V to 3.3 V logic levels, and a maximum clock rate of 100 MHz.

ManufacturerNI (National Instruments)

ModelPXIe-6547

Part Number781011-03 · 781011-02

Product TypePXIe, 100 MHz, 32-Channel PXI Express PXI Digital Waveform Instrument

● Available to Order

Condition: confirmed per unit

Request current pricing and lead time for this model. Our team will confirm the exact equipment configuration and condition.

Fast RFQ

Quote: PXIe-6547

Free Shippingfull policy linked

30-Day Warrantystandard coverage

30-Day Returnspolicy applies

Technical Supportmodel & compatibility help

Bidirectional Digital Channels32

Logic Levels And RangeProgrammable, 1.2V - 3.3V, 1.2V - 3.3V

Supports Hardware CompareYes

Signaling TypeSingle-Ended

Active LoadNo

Supports PMUNo

SOHO Assistant

Ask about this exact model, a replacement, accessory, driver, rental or repair question.

Ask about specifications, compatibility, availability, rental or repair.

Ask SOHO Assistant

Overview

Product overview

Key product information and technical features.

The PXIe-6547 combines digital waveform generation and analysis for digital interfacing and basic characterization. Its 32 single-ended digital pins support programmable voltage levels with 100 mV resolution.

The instrument provides generation and acquisition rates up to 200 Mbits/s, hardware compare, advanced synchronization capabilities, and per-bank digital timing features. It uses a PXI Express bus connection and occupies one module slot.

32 bidirectional digital channels with single-ended signaling.
Programmable 1.2 V to 3.3 V logic levels with 100 mV resolution.
Maximum clock rate of 100 MHz and maximum data rate of 200 Mbits/s.
Digital generation and acquisition at up to 200 Mbits/s each.
Hardware compare, advanced synchronization, and per-bank digital timing features.
Single-module-width PXI Express instrument.

Verified specifications

Technical data

Verified product specifications.

Active Load	No
Number of Bidirectional Digital Channels	32
Logic Levels And Range	Programmable, 1.2V - 3.3V, 1.2V - 3.3V
Supports Hardware Compare	Yes
Supports PMU	No
Signaling Type	Single-Ended
Maximum Generation Rate	200 Mbits/s
Maximum Acquisition Rate	200 Mbits/s
Supported Hardware Platform	PXI
Bus Connection	PXI Express
Digital I/O Termination	50 kOhm
Digital I/O Logic Levels	Programmable
Output Voltage Range	1.2 V to 3.3 V
Maximum Clock Rate	100 MHz
Maximum Data Rate	200 Mbits/s
Module Width	1
NI part numbers	781011-03, 781011-02
