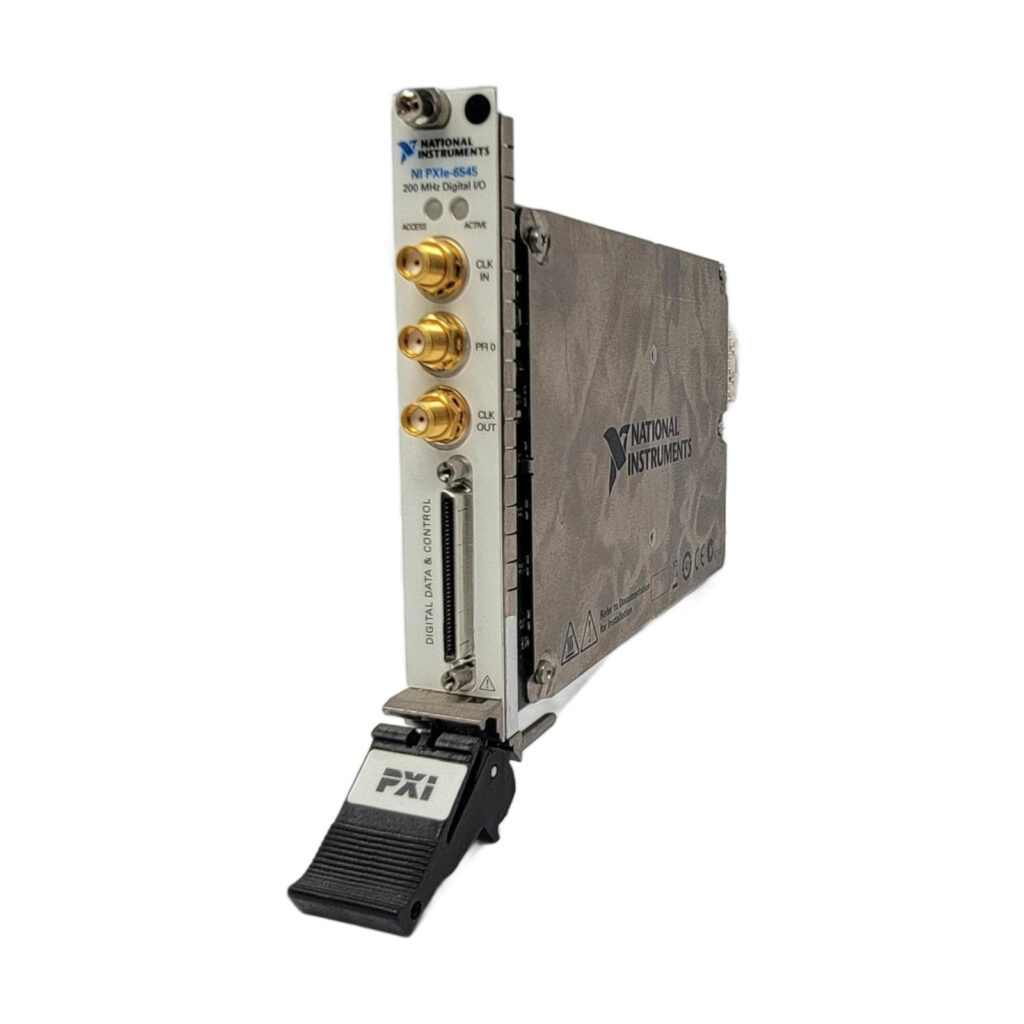

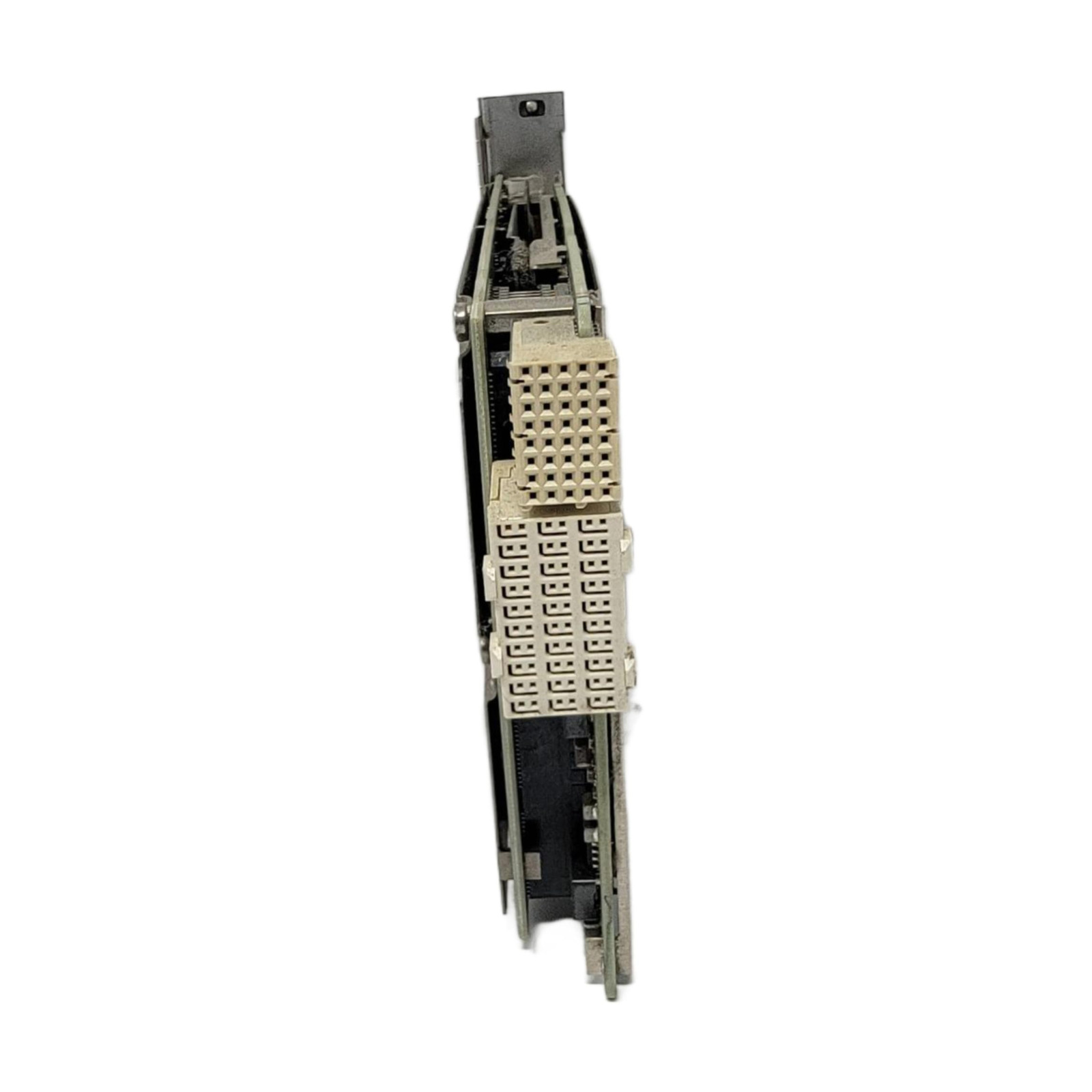

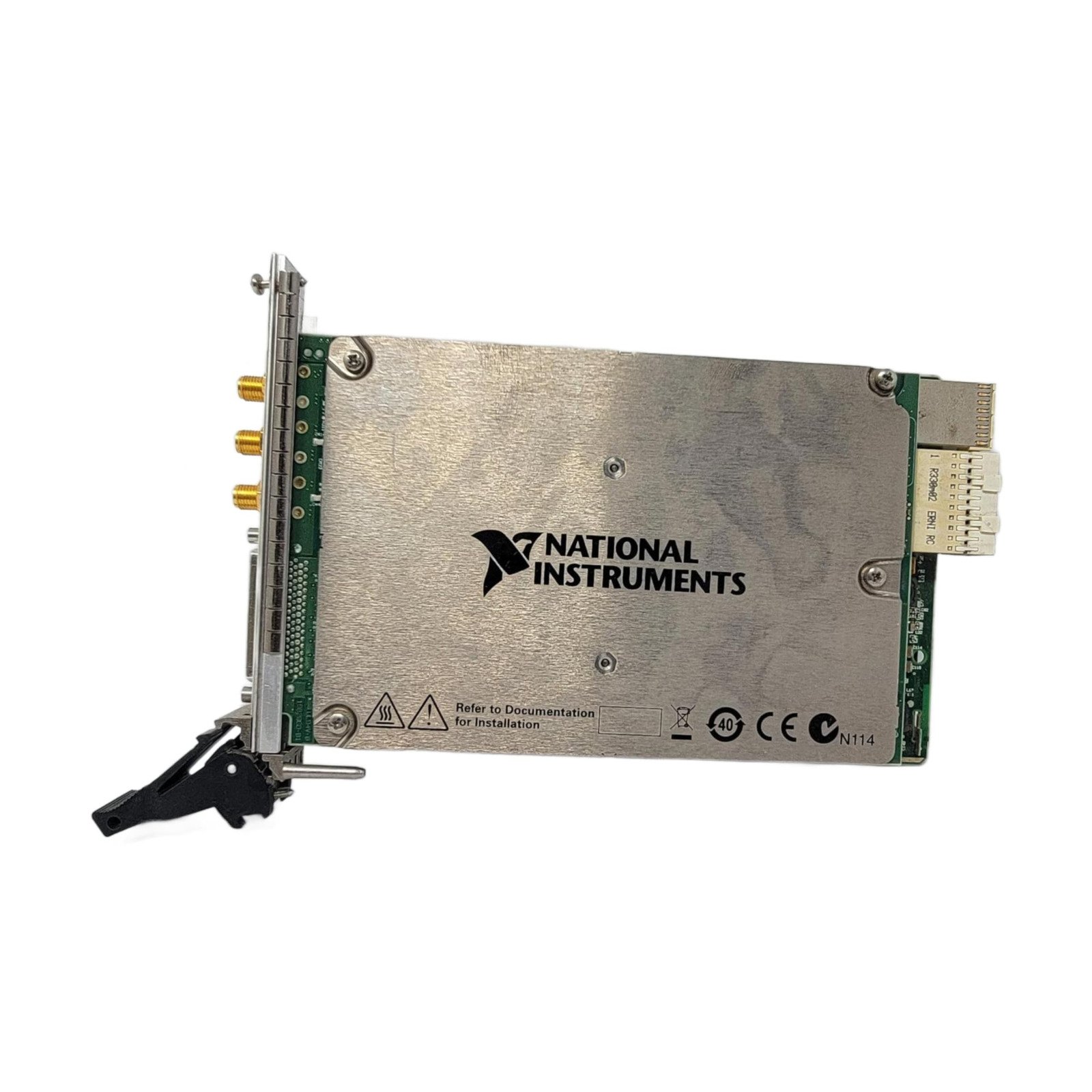

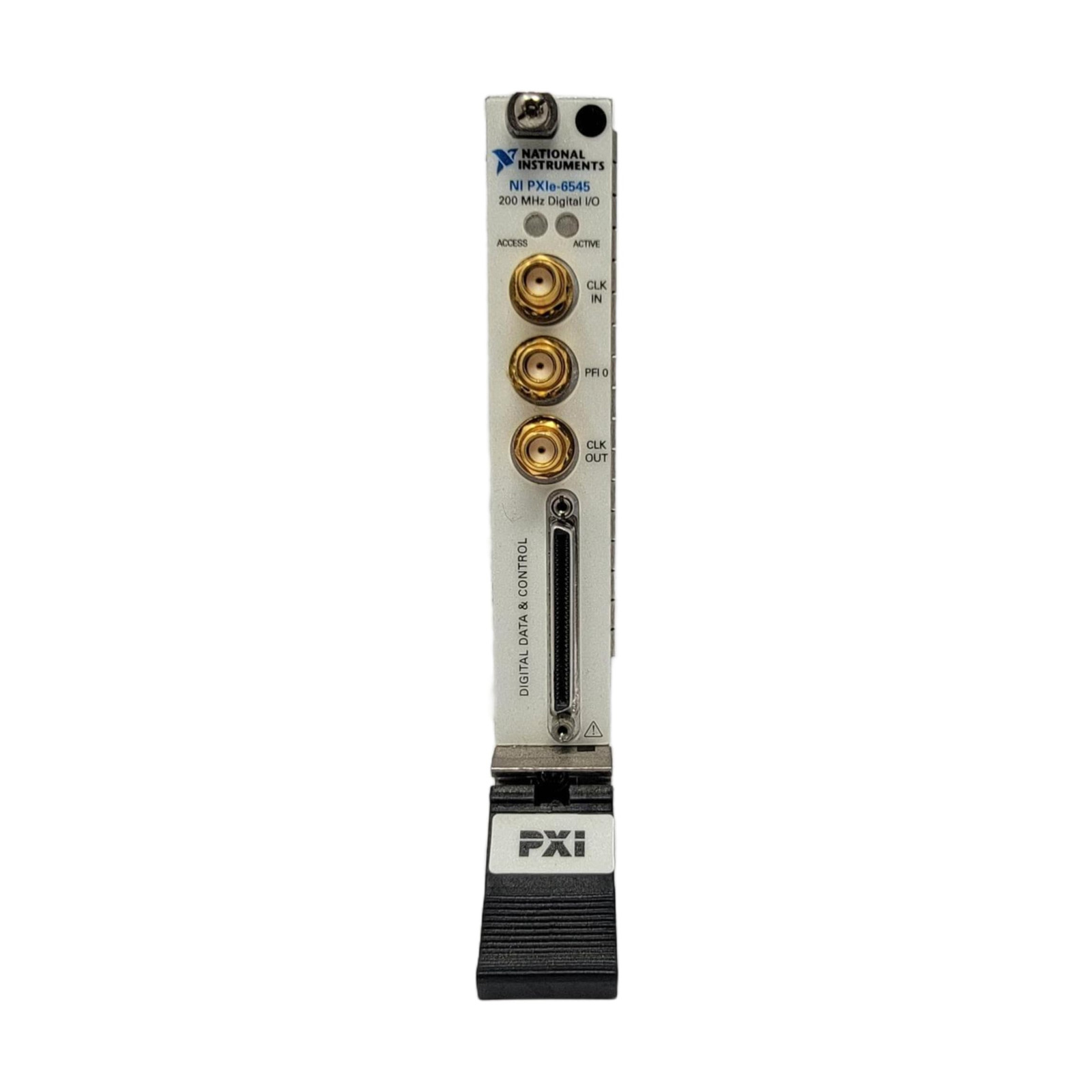

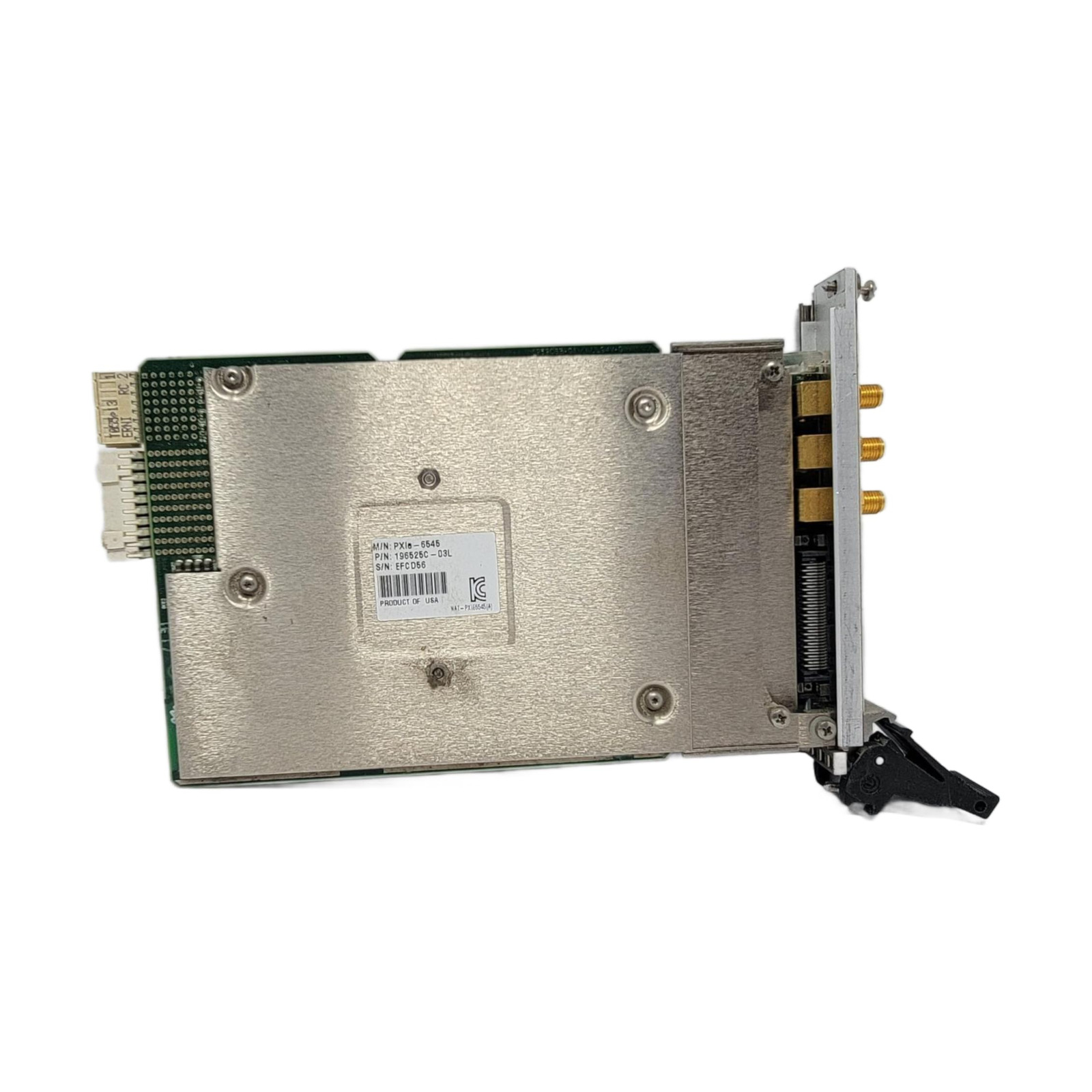

PXIe-6545

The NI PXIe-6545 is a 32-channel digital waveform instrument with single-ended digital I/O, selectable logic levels from 1.2 V to 3.3 V, and PXI Express connectivity. Its maximum clock rate is 200 MHz.

ManufacturerNI (National Instruments)

ModelPXIe-6545

Part Number780993-03 · 780993-02

Product Type200 MHz, 32-Channel PXI Digital Waveform Instrument

● Available to Order

Condition: confirmed per unit

Request current pricing and lead time for this model. Our team will confirm the exact equipment configuration and condition.

Fast RFQ

Quote: PXIe-6545

Free Shippingfull policy linked

30-Day Warrantystandard coverage

30-Day Returnspolicy applies

Technical Supportmodel & compatibility help

Bidirectional Digital Channels32

Logic Levels And Range1.2 V, 1.5 V, 1.8 V, 2.5 V, 3.3 V, 1.2V - 3.3V, 1.2V - 3.3V

Signaling TypeSingle-Ended

Active LoadNo

Supports Hardware CompareNo

Supports PMUNo

SOHO Assistant

Ask about this exact model, a replacement, accessory, driver, rental or repair question.

Ask about specifications, compatibility, availability, rental or repair.

Ask SOHO Assistant

Overview

Product overview

Key product information and technical features.

The PXIe-6545 combines digital waveform generation and acquisition with 32 bidirectional, single-ended channels. Its selectable digital I/O logic levels cover 1.2 V, 1.5 V, 1.8 V, 2.5 V, and 3.3 V.

The instrument connects through PXI Express within the PXI platform. Clock and data-rate limits should be distinguished when planning a system: the listed maximum clock rate is 200 MHz, while maximum acquisition and generation rates are 200 Mbits/s and 100 Mbits/s, respectively.

32 bidirectional digital channels with single-ended signaling.
Selectable digital I/O logic levels of 1.2 V, 1.5 V, 1.8 V, 2.5 V, and 3.3 V.
Maximum clock rate of 200 MHz and maximum acquisition rate of 200 Mbits/s.
Maximum generation rate of 100 Mbits/s.
PXI Express bus connection in a one-module-width format.
Does not provide active load, hardware compare, or PMU functions.

Verified specifications

Technical data

Verified product specifications.

Active Load	No
Number of Bidirectional Digital Channels	32
Logic Levels And Range	1.2 V, 1.5 V, 1.8 V, 2.5 V, 3.3 V, 1.2V - 3.3V, 1.2V - 3.3V
Supports Hardware Compare	No
Supports PMU	No
Signaling Type	Single-Ended
Maximum Generation Rate	100 Mbits/s
Maximum Acquisition Rate	200 Mbits/s
Supported Hardware Platform	PXI
Bus Connection	PXI Express
Digital I/O Termination	50 kOhm
Digital I/O Logic Levels	1.2 V, 1.5 V, 1.8 V, 2.5 V, 3.3 V
Output Voltage Range	1.2 V to 3.3 V
Maximum Clock Rate	200 MHz
Maximum Data Rate	100 Mbits/s
Module Width	1
NI part numbers	780993-03, 780993-02
