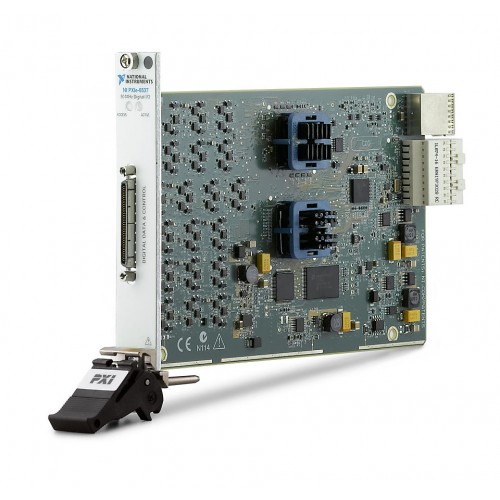

PXIe-6537, front view
PXIe-6537, front view additional viewPXIe-6537, front view additional viewPXIe-6537, front view additional view
4 images: additional views below.Click to enlarge
NI (National Instruments) · PXI

PXIe-6537

The NI PXIe-6537 is a 32-channel digital I/O module with PXI Express connectivity, a 50 MHz maximum clock rate, and selectable 2.5 V, 3.3 V, and 5 V TTL logic levels.

ManufacturerNI (National Instruments)
ModelPXIe-6537
Part Number779989-01
Product Type32-Channel, 50 MHz, 200 MB/s PXI Digital I/O Module
● Available to Order
Condition: confirmed per unit

Request current pricing and lead time for this model. Our team will confirm the exact equipment configuration and condition.

Fast RFQ

Quote: PXIe-6537

We will reply by email.
Free Shippingfull policy linked
30-Day Warrantystandard coverage
30-Day Returnspolicy applies
Technical Supportmodel & compatibility help
Bus ConnectorPXI Express
Single-Ended Digital I/O Channel Current Drive32 mA
Digital I/O Logic Levels2.5 V, 3.3 V, 5 V TTL
Bidirectional Digital Channels32
Digital Input Voltage Range-1 V to 6 V
Output Voltage Range0 V to 5 V
SOHO Assistant
Ask about this exact model, a replacement, accessory, driver, rental or repair question.
Ask about specifications, compatibility, availability, rental or repair.
Ask SOHO Assistant
Overview

Product overview

Key product information and technical features.

The PXIe-6537 provides 32 bidirectional, single-ended digital I/O channels for a PXI system using a PXI Express bus connection. Selectable logic levels allow its digital interface to be configured for 2.5 V, 3.3 V, or 5 V TTL operation.

The module has a VHDCI front connection and two external clock inputs. Its specified digital input voltage range is -1 V to 6 V, and its output voltage range is 0 V to 5 V.

  • 32 bidirectional digital channels with single-ended signaling.
  • Maximum clock rate of 50 MHz.
  • Selectable 2.5 V, 3.3 V, and 5 V TTL digital I/O logic levels.
  • PXI Express bus interface and VHDCI front connection.
  • Two external clock inputs.
  • Single-ended digital I/O channel current drive specified as 32 mA.
Verified specifications

Technical data

Verified product specifications.

Bus ConnectorPXI Express
Single-Ended Digital I/O Channel Current Drive32 mA
Digital I/O Logic Levels2.5 V, 3.3 V, 5 V TTL
Number of Bidirectional Digital Channels32
Digital Input Voltage Range-1 V to 6 V
Output Voltage Range0 V to 5 V
Maximum Clock Rate50 MHz
Signaling TypeSingle-Ended
ReconfigurableYes
Bus ConnectionPXI Express
Front Connection TypeVHDCI
Number of External Clock Inputs2
Supported Hardware PlatformPXI
Digital I/O Termination50 kOhm
Maximum Acquisition Rate50 MB/s
Maximum Generation Rate50 MB/s
Maximum Data Rate50 MB/s
Module Width1
NI part numbers779989-01
Condition & included items

What the actual unit includes

Confirm condition, included accessories and revision before ordering.

Condition

Confirmed per unit.

Included

Device / accessories confirmed in quote.

Revision

Exact revision confirmed when relevant.

Compatibility

Complete the measurement chain

Review system components and compatibility requirements.

NI

Manufacturer

PXI

Supported Hardware Platform

PXIe-6537

This product

Platform shown as listed by NI. Confirm controller, chassis and software fit for your system with NI before integration.
Manuals & software

Technical resources

Manuals, software and technical resources for this model.

Getting Started (NI)Getting Started · ni.com
Open →
Letter Of Volatility (NI)Letter Of Volatility · ni.com
Open →
Specifications (NI)Specifications · ni.com
Open →
Dimensional Drawings (NI)Dimensional Drawings · ni.com
Open →
Product Page (NI)Product Page · ni.com
Open →
Shipping, warranty & returns

Commercial terms

Review shipping, warranty and return terms before ordering.

Shipping
Free Shipping. Full policy terms apply.
Warranty
30-Day Warranty. Standard coverage applies.
Returns
30-Day Returns. Return policy applies.
Price / Availability
Contact SOHO ProLab for current quote and availability.
Lifecycle services

Source, rent or repair the exact model

Choose pricing, rental or repair for this exact model.

Get Price

Current price, availability and exact unit details.

Rent This Model

Request the exact model or a suitable alternative.

Repair This Model

Send the model and failure symptoms for review.

Explore equipment

Data Acquisition and Control Systems

Shipping, warranty and returns

FAQ

Product-specific questions

Product-specific answers based on available technical information.

How many digital I/O channels does the PXIe-6537 have?

It has 32 bidirectional digital channels with single-ended signaling.

What logic levels does the PXIe-6537 support?

It supports selectable 2.5 V, 3.3 V, and 5 V TTL digital I/O logic levels.

What connections does the module use?

It uses a PXI Express bus connection and a VHDCI front connection.

What is the maximum clock rate?

The specified maximum clock rate is 50 MHz.
