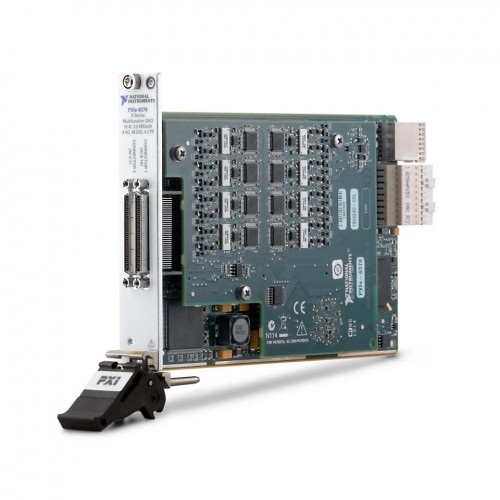

PXIe-6378

Name: PXIe-6378
Brand: NI (National Instruments)

The NI PXIe-6378, part number 781476-01, is a PXI Express multifunction I/O module with 16 simultaneously sampled analog inputs, 4 analog outputs and 48 bidirectional digital channels.

ManufacturerNI (National Instruments)

ModelPXIe-6378

Part Number781476-01

Product TypePXIe, 16 AI (16-Bit, 3.5 MS/s/ch), 4 AO, 48 DIO, PXI Multifunction I/O Module

● Available to Order

Condition: confirmed per unit

Request current pricing and lead time for this model. Our team will confirm the exact equipment configuration and condition.

Fast RFQ

Quote: PXIe-6378

Free Shippingfull policy linked

30-Day Warrantystandard coverage

30-Day Returnspolicy applies

Technical Supportmodel & compatibility help

Analog Input Resolution16 bits

Simultaneous SamplingYes

Maximum Sample Rate3.57 MS/s/ch

Analog Input Absolute Accuracy313 μV

Number of Counters/Timers4

SOHO Assistant

Ask about this exact model, a replacement, accessory, driver, rental or repair question.

Ask about specifications, compatibility, availability, rental or repair.

Ask SOHO Assistant

Overview

Product overview

Key product information and technical features.

The PXIe-6378 combines analog input, analog output, digital I/O and counter/timer functions in a PXI Express module. Its 16 differential analog inputs support simultaneous sampling with 16-bit resolution at a maximum rate of 3.57 MS/s per channel.

Analog input ranges are ±10 V, ±5 V, ±2 V and ±1 V. Four 16-bit analog outputs provide a ±10 V output range, while 48 bidirectional digital channels and four counters/timers extend the module's I/O capabilities.

16 differential analog input channels with simultaneous sampling and 16-bit resolution.
Maximum analog input sample rate of 3.57 MS/s per channel.
Four 16-bit analog outputs with a maximum update rate of 3.3 MS/s per channel.
48 bidirectional digital channels with 5 V logic levels.
Four counters/timers for additional timing functions.
PXI Express interface and VHDCI front connection.

Verified specifications

Technical data

Verified product specifications.

Analog Input Resolution	16 bits
Simultaneous Sampling	Yes
Maximum Sample Rate	3.57 MS/s/ch
Analog Input Absolute Accuracy	313 μV
Number of Counters/Timers	4
Number of Analog Output Channels	4
Maximum Analog Update Rate	3.3 MS/s/ch
Bus Connector	PXI Express
Number of Bidirectional Digital Channels	48
Electrical Signal Measured	Voltage
Analog Input FIFO Buffer Size	12268 samples
Maximum Number of Differential Analog Input Channels	16
Reconfigurable	No
Number of Analog Input Channels	16
Maximum Digital Update Rate	100 ns
Operating Temperature Range	0 °C to 55 °C
Bus Connection	PXI Express
Digital I/O Logic Levels	5 V
Front Connection Type	VHDCI
Maximum Clock Rate	10 MHz
Number of External Clock Inputs	8
Signaling Type	Single-Ended
Analog Input Voltage Range	-10 V to 10 V -5 V to 5 V -2 V to 2 V -1 V to 1 V
Number of Voltage Output Channels	4
Analog Output Voltage Range	-10 V to 10 V
Analog Output Resolution	16 bits
NI part numbers	781476-01
