NI (National Instruments) PXIe-6366 PXIe, 8 AI (16-Bit, 2 MS/s/ch), 2 AO, 24 DIO, PXI Multifunction I/O Module

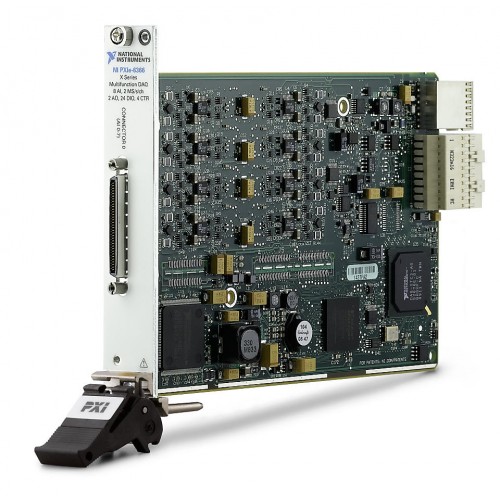

1 image: Click to enlarge
NI (National Instruments) · PXI Express

PXIe-6366

The NI PXIe-6366 is a simultaneous-sampling PXI Express multifunction DAQ module with 8 differential, 16-bit analog inputs at up to 2 MS/s per channel. It also provides 2 analog outputs, 24 bidirectional digital channels and 4 counters/timers.

ManufacturerNI (National Instruments)
ModelPXIe-6366
Part Number781057-01
Product TypePXIe, 8 AI (16-Bit, 2 MS/s/ch), 2 AO, 24 DIO, PXI Multifunction I/O Module
● Available to Order
Condition: confirmed per unit

Request current pricing and lead time for this model. Our team will confirm the exact equipment configuration and condition.

Fast RFQ

Quote: PXIe-6366

We will reply by email.
Free Shippingfull policy linked
30-Day Warrantystandard coverage
30-Day Returnspolicy applies
Technical Supportmodel & compatibility help
Analog Input Resolution16 bits
Simultaneous SamplingYes
Maximum Sample Rate2 MS/s/ch
Analog Input Absolute Accuracy313 μV
Number of Counters/Timers4
SOHO Assistant
Ask about this exact model, a replacement, accessory, driver, rental or repair question.
Ask about specifications, compatibility, availability, rental or repair.
Ask SOHO Assistant
Overview

Product overview

Key product information and technical features.

The PXIe-6366 combines simultaneous analog input acquisition with analog output, digital I/O and counter/timer functions in a PXI Express module. Its 8 differential analog inputs provide 16-bit resolution and a maximum sample rate of 2 MS/s per channel.

The module includes 2 analog output channels, 24 bidirectional digital channels and 4 counters/timers. A VHDCI front connection provides the signal interface; consult the model-specific specifications and drawings when planning system wiring and installation.

  • 8 differential analog input channels with simultaneous sampling, 16-bit resolution and a maximum sample rate of 2 MS/s/ch.
  • Selectable analog input voltage ranges of ±10 V, ±5 V, ±2 V and ±1 V.
  • 2 analog output channels with 16-bit resolution, a ±10 V output range and a maximum update rate of 3.3 MS/s/ch.
  • 24 bidirectional digital channels with 5 V logic levels.
  • 4 counters/timers alongside analog and digital I/O.
  • PXI Express bus interface and VHDCI front connection.
Verified specifications

Technical data

Verified product specifications.

Analog Input Resolution16 bits
Simultaneous SamplingYes
Maximum Sample Rate2 MS/s/ch
Analog Input Absolute Accuracy313 μV
Number of Counters/Timers4
Number of Analog Output Channels2
Maximum Analog Update Rate3.3 MS/s/ch
Bus ConnectorPXI Express
Number of Bidirectional Digital Channels24
Electrical Signal MeasuredVoltage
Analog Input FIFO Buffer Size8182 samples
Maximum Number of Differential Analog Input Channels8
ReconfigurableNo
Number of Analog Input Channels8
Maximum Digital Update Rate100 ns
Operating Temperature Range0 °C to 55 °C
Bus ConnectionPXI Express
Digital I/O Logic Levels5 V
Front Connection TypeVHDCI
Maximum Clock Rate10 MHz
Signaling TypeSingle-Ended
Analog Input Voltage Range-10 V to 10 V -5 V to 5 V -2 V to 2 V -1 V to 1 V
Number of Voltage Output Channels2
Analog Output Voltage Range-10 V to 10 V
Analog Output Resolution16 bits
NI part numbers781057-01
Condition & included items

What the actual unit includes

Confirm condition, included accessories and revision before ordering.

Condition

Confirmed per unit.

Included

Device / accessories confirmed in quote.

Revision

Exact revision confirmed when relevant.

Compatibility

Complete the measurement chain

Review system components and compatibility requirements.

NI

Manufacturer

PXI Express

Bus Connector

PXIe-6366

This product

Platform shown as listed by NI. Confirm controller, chassis and software fit for your system with NI before integration.
Manuals & software

Technical resources

Manuals, software and technical resources for this model.

Getting Started (NI)Getting Started · ni.com
Open →
Specifications (NI)Specifications · ni.com
Open →
Dimensional Drawings (NI)Dimensional Drawings · ni.com
Open →
Product Page (NI)Product Page · ni.com
Open →
Shipping, warranty & returns

Commercial terms

Review shipping, warranty and return terms before ordering.

Shipping
Free Shipping. Full policy terms apply.
Warranty
30-Day Warranty. Standard coverage applies.
Returns
30-Day Returns. Return policy applies.
Price / Availability
Contact SOHO ProLab for current quote and availability.
Lifecycle services

Source, rent or repair the exact model

Choose pricing, rental or repair for this exact model.

Get Price

Current price, availability and exact unit details.

Rent This Model

Request the exact model or a suitable alternative.

Repair This Model

Send the model and failure symptoms for review.

FAQ

Product-specific questions

Product-specific answers based on available technical information.

How many analog input channels does the PXIe-6366 have?

It has 8 differential analog input channels with 16-bit resolution. The supplied specifications list no single-ended analog input channels.

Does the PXIe-6366 sample its analog inputs simultaneously?

Yes. It supports simultaneous sampling at up to 2 MS/s per channel.

What analog output capabilities are provided?

The module provides 2 analog output channels with 16-bit resolution, a ±10 V range and a maximum update rate of 3.3 MS/s/ch.

What digital I/O and counters are included?
