PXIe-6365

Name: PXIe-6365
Brand: NI (National Instruments)

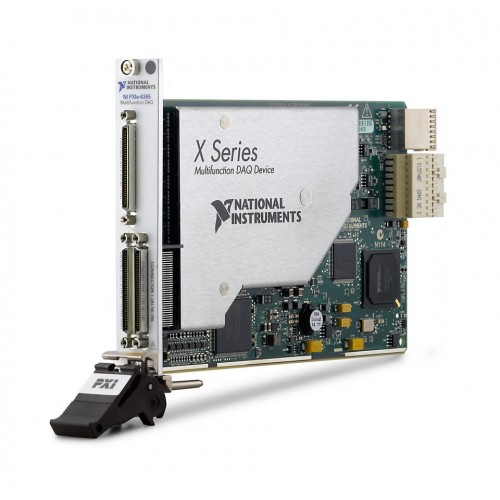

The NI PXIe-6365, part number 783633-01, is a PXI Express multifunction I/O module with up to 144 single-ended or 72 differential analog inputs, 2 analog outputs, and 24 bidirectional digital channels.

ManufacturerNI (National Instruments)

ModelPXIe-6365

Part Number783633-01

Product TypePXIe, 144 AI (16-Bit, 2 MS/s), 2 AO, 24 DIO, PXI Multifunction I/O Module

● Available to Order

Condition: confirmed per unit

Request current pricing and lead time for this model. Our team will confirm the exact equipment configuration and condition.

Fast RFQ

Quote: PXIe-6365

Free Shippingfull policy linked

30-Day Warrantystandard coverage

30-Day Returnspolicy applies

Technical Supportmodel & compatibility help

Max Single-Ended Analog Input Channels144

Analog Input Resolution16 bits

Maximum Sample Rate2 MS/s

Analog Input Absolute Accuracy33 μV

Number of Counters/Timers4

Simultaneous SamplingNo

SOHO Assistant

Ask about this exact model, a replacement, accessory, driver, rental or repair question.

Ask about specifications, compatibility, availability, rental or repair.

Ask SOHO Assistant

Overview

Product overview

Key product information and technical features.

The PXIe-6365 combines voltage acquisition, analog output, digital I/O, and counters/timers in a PXI Express module. Its analog input section offers 16-bit resolution and a maximum sample rate of 2 MS/s, with selectable voltage ranges from ±0.1 V to ±10 V. Simultaneous sampling is not supported.

Two 16-bit analog outputs provide a ±10 V output range, alongside 24 bidirectional digital channels and four counters/timers. The module uses a VHDCI front connection and has a specified operating temperature range of 0 °C to 55 °C.

Up to 144 single-ended or 72 differential analog input channels.
16-bit analog input resolution with a maximum sample rate of 2 MS/s.
Seven analog input voltage ranges: ±0.1 V, ±0.2 V, ±0.5 V, ±1 V, ±2 V, ±5 V, and ±10 V.
Two 16-bit analog output channels with a ±10 V range and a maximum update rate of 2.86 MS/s.
24 bidirectional digital channels with 5 V logic levels.
Four counters/timers complement the analog and digital I/O.

Verified specifications

Technical data

Verified product specifications.

Maximum Number of Single-Ended Analog Input Channels	144
Analog Input Resolution	16 bits
Simultaneous Sampling	No
Maximum Sample Rate	2 MS/s
Analog Input Absolute Accuracy	33 μV
Number of Counters/Timers	4
Number of Analog Output Channels	2
Maximum Analog Update Rate	2.86 MS/s
Bus Connector	PXI Express
Number of Bidirectional Digital Channels	24
Electrical Signal Measured	Voltage
Analog Input FIFO Buffer Size	4095 samples
Maximum Number of Differential Analog Input Channels	72
Reconfigurable	Yes
Number of Analog Input Channels	144
Maximum Digital Update Rate	100 ns
Operating Temperature Range	0 °C to 55 °C
Bus Connection	PXI Express
Digital I/O Logic Levels	5 V
Front Connection Type	VHDCI
Maximum Clock Rate	10 MHz
Number of External Clock Inputs	8
Signaling Type	Single-Ended
Analog Input Voltage Range	-0.1 V to 0.1 V, -0.2 V to 0.2 V, -0.5 V to 0.5 V, -1 V to 1 V, -2 V to 2 V
Analog Input Voltage Range (cont. 2)	-5 V to 5 V, -10 V to 10 V
Number of Voltage Output Channels	2
Analog Output Voltage Range	-10 V to 10 V
Analog Output Resolution	16 bits
NI part numbers	783633-01
