NI (National Instruments) PXIe-6363 PXIe, 32 AI (16-Bit, 2 MS/s), 4 AO, 48 DIO, PXI Multifunction I/O Module

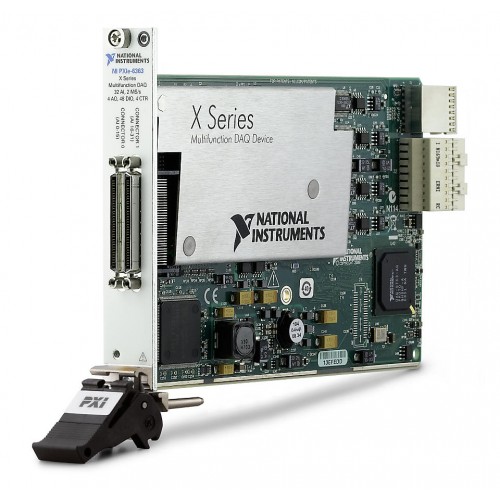

1 image: Click to enlarge

NI (National Instruments) · PXI Express

PXIe-6363

Name: PXIe-6363
Brand: NI (National Instruments)

The NI PXIe-6363 is a PXI Express multifunction I/O module with 32 analog input channels, 4 analog output channels, 48 bidirectional digital channels and 4 counters/timers.

ManufacturerNI (National Instruments)

ModelPXIe-6363

Part Number781056-01

Product TypePXIe, 32 AI (16-Bit, 2 MS/s), 4 AO, 48 DIO, PXI Multifunction I/O Module

● Available to Order

Condition: confirmed per unit

Request current pricing and lead time for this model. Our team will confirm the exact equipment configuration and condition.

Fast RFQ

Quote: PXIe-6363

Free Shippingfull policy linked

30-Day Warrantystandard coverage

30-Day Returnspolicy applies

Technical Supportmodel & compatibility help

Max Single-Ended Analog Input Channels32

Analog Input Resolution16 bits

Maximum Sample Rate2 MS/s

Analog Input Absolute Accuracy33 μV

Number of Counters/Timers4

Simultaneous SamplingNo

SOHO Assistant

Ask about this exact model, a replacement, accessory, driver, rental or repair question.

Ask about specifications, compatibility, availability, rental or repair.

Ask SOHO Assistant

Overview

Product overview

Key product information and technical features.

The PXIe-6363 combines analog input, analog output, digital I/O and counter/timer resources in a PXI Express module. Its analog input section provides 16-bit resolution, a maximum sample rate of 2 MS/s and up to 16 differential channels. Sampling is not simultaneous.

Selectable analog input ranges extend from ±0.1 V to ±10 V. Four 16-bit analog voltage outputs provide a ±10 V output range, alongside 48 bidirectional digital channels and four counters/timers. Consult the NI specifications for the operating conditions associated with maximum rates and accuracy figures.

32 single-ended analog inputs or up to 16 differential inputs, with 16-bit resolution.
Maximum analog input sample rate of 2 MS/s; inputs do not sample simultaneously.
Four 16-bit analog outputs with a ±10 V range and a listed maximum update rate of 2.86 MS/s.
48 bidirectional digital I/O channels with 5 V logic levels.
Four counters/timers provide additional timing resources.
PXI Express bus interface and VHDCI front connection.

Verified specifications

Technical data

Verified product specifications.

Maximum Number of Single-Ended Analog Input Channels	32
Analog Input Resolution	16 bits
Simultaneous Sampling	No
Maximum Sample Rate	2 MS/s
Analog Input Absolute Accuracy	33 μV
Number of Counters/Timers	4
Number of Analog Output Channels	4
Maximum Analog Update Rate	2.86 MS/s
Bus Connector	PXI Express
Number of Bidirectional Digital Channels	48
Electrical Signal Measured	Voltage
Analog Input FIFO Buffer Size	2047 samples
Maximum Number of Differential Analog Input Channels	16
Reconfigurable	No
Number of Analog Input Channels	32
Maximum Digital Update Rate	100 ns
Operating Temperature Range	0 °C to 55 °C
Bus Connection	PXI Express
Digital I/O Logic Levels	5 V
Front Connection Type	VHDCI
Maximum Clock Rate	10 MHz
Number of External Clock Inputs	8
Signaling Type	Single-Ended
Analog Input Voltage Range	-0.1 V to 0.1 V, -0.2 V to 0.2 V, -0.5 V to 0.5 V, -1 V to 1 V, -2 V to 2 V
Analog Input Voltage Range (cont. 2)	-5 V to 5 V, -10 V to 10 V
Number of Voltage Output Channels	4
Analog Output Voltage Range	-10 V to 10 V
Analog Output Resolution	16 bits
NI part numbers	781056-01

Condition & included items

What the actual unit includes

Confirm condition, included accessories and revision before ordering.

Condition

Confirmed per unit.

Included

Device / accessories confirmed in quote.

Revision

Exact revision confirmed when relevant.

Compatibility

Complete the measurement chain

Review system components and compatibility requirements.

NI

Manufacturer

PXI Express

Bus Connector

PXIe-6363

This product

Platform shown as listed by NI. Confirm controller, chassis and software fit for your system with NI before integration.

Manuals & software

Technical resources

Manuals, software and technical resources for this model.

Getting Started (NI)Getting Started · ni.com

Open →

Letter Of Volatility (NI)Letter Of Volatility · ni.com

Open →

Specifications (NI)Specifications · ni.com

Open →

Dimensional Drawings (NI)Dimensional Drawings · ni.com

Open →

Product Page (NI)Product Page · ni.com

Open →

Shipping, warranty & returns

Commercial terms

Review shipping, warranty and return terms before ordering.

Shipping

Free Shipping. Full policy terms apply.

Warranty

30-Day Warranty. Standard coverage applies.

Returns

30-Day Returns. Return policy applies.

Price / Availability

Contact SOHO ProLab for current quote and availability.

Lifecycle services

Source, rent or repair the exact model

Choose pricing, rental or repair for this exact model.

Get Price

Current price, availability and exact unit details.

Rent This Model

Request the exact model or a suitable alternative.

Repair This Model

Send the model and failure symptoms for review.

FAQ

Product-specific questions

Product-specific answers based on available technical information.

What is the NI part number for the PXIe-6363?

The listed NI part number is 781056-01.

How many analog inputs does the PXIe-6363 provide?

It provides up to 32 single-ended or 16 differential analog input channels with 16-bit resolution.

Does the PXIe-6363 sample its analog inputs simultaneously?

No. The PXIe-6363 does not provide simultaneous analog input sampling. Its listed maximum analog input sample rate is 2 MS/s; consult NI specifications for rate conditions.

What analog output capabilities are provided?

The module provides four 16-bit analog voltage outputs with a -10 V to 10 V range and a listed maximum update rate of 2.86 MS/s. Consult NI specifications for update-rate conditions.

What digital I/O and counter resources are provided?

The PXIe-6363 has 48 bidirectional digital channels and four counters/timers.
