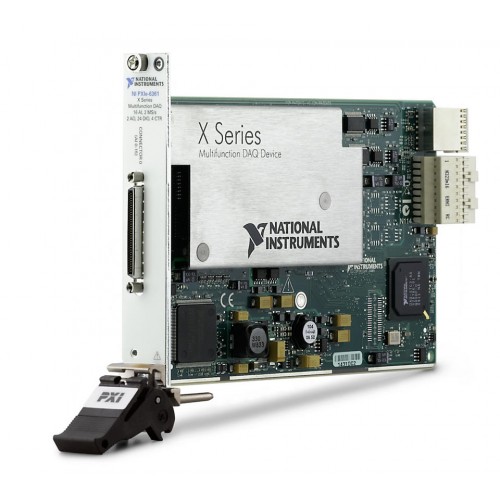

NI (National Instruments) PXIe-6361 PXIe, 16 AI (16-Bit, 2 MS/s), 2 AO, 24 DIO, PXI Multifunction I/O Module
1 image: Click to enlarge
NI (National Instruments) · PXI Express

PXIe-6361

The NI PXIe-6361 is a PXI Express multifunction I/O module combining 16-bit analog input and output with 24 digital I/O channels and 4 counters/timers. It supports up to 16 single-ended or 8 differential analog inputs, with a maximum analog input sample rate of 2 MS/s.

ManufacturerNI (National Instruments)
ModelPXIe-6361
Part Number781055-01
Product TypePXIe, 16 AI (16-Bit, 2 MS/s), 2 AO, 24 DIO, PXI Multifunction I/O Module
● Available to Order
Condition: confirmed per unit

Request current pricing and lead time for this model. Our team will confirm the exact equipment configuration and condition.

Fast RFQ

Quote: PXIe-6361

We will reply by email.
Free Shippingfull policy linked
30-Day Warrantystandard coverage
30-Day Returnspolicy applies
Technical Supportmodel & compatibility help
Max Single-Ended Analog Input Channels16
Analog Input Resolution16 bits
Maximum Sample Rate2 MS/s
Analog Input Absolute Accuracy33 μV
Number of Counters/Timers4
Simultaneous SamplingNo
SOHO Assistant
Ask about this exact model, a replacement, accessory, driver, rental or repair question.
Ask about specifications, compatibility, availability, rental or repair.
Ask SOHO Assistant
Overview

Product overview

Key product information and technical features.

The PXIe-6361 combines voltage measurement, voltage output, digital I/O and counter/timer functions in a PXI Express module. Its analog input supports 16 single-ended channels or up to 8 differential channels, with 16-bit resolution and a maximum sample rate of 2 MS/s.

Two 16-bit analog outputs provide a ±10 V output range. The module also includes 24 bidirectional digital channels, 4 counters/timers and a VHDCI front connection. Analog inputs are not sampled simultaneously; consult the NI specifications for acquisition and timing limits before configuring a multichannel measurement.

  • 16-bit analog input with up to 16 single-ended or 8 differential channels.
  • Selectable bipolar analog input ranges from ±0.1 V to ±10 V.
  • Two 16-bit voltage outputs with a ±10 V range and a maximum update rate of 2.86 MS/s.
  • 24 bidirectional digital I/O channels with 5 V logic levels.
  • Four counters/timers alongside the analog and digital I/O functions.
  • PXI Express bus interface and VHDCI front connection.
Verified specifications

Technical data

Verified product specifications.

Maximum Number of Single-Ended Analog Input Channels16
Analog Input Resolution16 bits
Simultaneous SamplingNo
Maximum Sample Rate2 MS/s
Analog Input Absolute Accuracy33 μV
Number of Counters/Timers4
Number of Analog Output Channels2
Maximum Analog Update Rate2.86 MS/s
Bus ConnectorPXI Express
Number of Bidirectional Digital Channels24
Electrical Signal MeasuredVoltage
Analog Input FIFO Buffer Size2047 samples
Maximum Number of Differential Analog Input Channels8
ReconfigurableNo
Number of Analog Input Channels16
Maximum Digital Update Rate100 ns
Operating Temperature Range0 °C to 55 °C
Bus ConnectionPXI Express
Digital I/O Logic Levels5 V
Front Connection TypeVHDCI
Maximum Clock Rate10 MHz
Number of External Clock Inputs8
Signaling TypeSingle-Ended
Analog Input Voltage Range-0.1 V to 0.1 V, -0.2 V to 0.2 V, -0.5 V to 0.5 V, -1 V to 1 V, -2 V to 2 V
Analog Input Voltage Range (cont. 2)-5 V to 5 V, -10 V to 10 V
Number of Voltage Output Channels2
Analog Output Voltage Range-10 V to 10 V
Analog Output Resolution16 bits
NI part numbers781055-01
