NI (National Instruments) PXIe-6358 PXIe, 16 AI (16-Bit, 1.25 MS/s/ch), 4 AO, 48 DIO, PXI Multifunction I/O Module

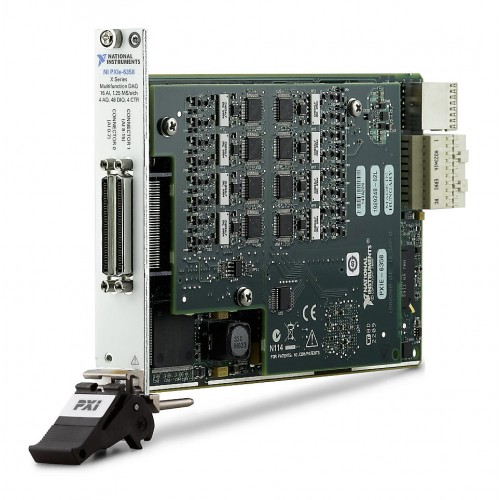

1 image: Click to enlarge

NI (National Instruments) · PXI Express

PXIe-6358

Name: PXIe-6358
Brand: NI (National Instruments)

The NI PXIe-6358 is a PXI Express multifunction I/O module with 16 simultaneous-sampling analog inputs, 4 analog outputs, 48 digital I/O channels, and 4 counters/timers. Its analog inputs provide 16-bit resolution at up to 1.25 MS/s per channel.

ManufacturerNI (National Instruments)

ModelPXIe-6358

Part Number781054-01

Product TypePXIe, 16 AI (16-Bit, 1.25 MS/s/ch), 4 AO, 48 DIO, PXI Multifunction I/O Module

● Available to Order

Condition: confirmed per unit

Request current pricing and lead time for this model. Our team will confirm the exact equipment configuration and condition.

Fast RFQ

Quote: PXIe-6358

Free Shippingfull policy linked

30-Day Warrantystandard coverage

30-Day Returnspolicy applies

Technical Supportmodel & compatibility help

Analog Input Resolution16 bits

Simultaneous SamplingYes

Maximum Sample Rate1.25 MS/s/ch

Analog Input Absolute Accuracy313 μV

Number of Counters/Timers4

SOHO Assistant

Ask about this exact model, a replacement, accessory, driver, rental or repair question.

Ask about specifications, compatibility, availability, rental or repair.

Ask SOHO Assistant

Overview

Product overview

Key product information and technical features.

The PXIe-6358 combines simultaneous voltage acquisition with analog output, digital I/O, and counter/timer functions in a PXI Express module. Its 16 differential analog inputs offer 16-bit resolution and a maximum sample rate of 1.25 MS/s per channel, with selectable bipolar input ranges of ±10 V, ±5 V, ±2 V, and ±1 V.

Four 16-bit analog outputs provide a ±10 V output range. The module also includes 48 bidirectional digital channels and 4 counters/timers, with a VHDCI front connection for signal interfacing.

16 differential analog input channels with simultaneous sampling.
16-bit analog input resolution and acquisition rates up to 1.25 MS/s per channel.
Four 16-bit analog outputs with a ±10 V output range.
48 bidirectional digital I/O channels and 4 counters/timers.
PXI Express bus interface and VHDCI front connection.

Verified specifications

Technical data

Verified product specifications.

Analog Input Resolution	16 bits
Simultaneous Sampling	Yes
Maximum Sample Rate	1.25 MS/s/ch
Analog Input Absolute Accuracy	313 μV
Number of Counters/Timers	4
Number of Analog Output Channels	4
Maximum Analog Update Rate	3.3 MS/s/ch
Bus Connector	PXI Express
Number of Bidirectional Digital Channels	48
Electrical Signal Measured	Voltage
Analog Input FIFO Buffer Size	8182 samples
Maximum Number of Differential Analog Input Channels	16
Reconfigurable	No
Number of Analog Input Channels	16
Maximum Digital Update Rate	100 ns
Operating Temperature Range	0 °C to 55 °C
Bus Connection	PXI Express
Digital I/O Logic Levels	5 V
Front Connection Type	VHDCI
Maximum Clock Rate	10 MHz
Signaling Type	Single-Ended
Analog Input Voltage Range	-10 V to 10 V -5 V to 5 V -2 V to 2 V -1 V to 1 V
Number of Voltage Output Channels	4
Analog Output Voltage Range	-10 V to 10 V
Analog Output Resolution	16 bits
NI part numbers	781054-01
