PXIe-6356

Name: PXIe-6356
Brand: NI (National Instruments)

The NI PXIe-6356, part number 781053-01, is a PXI Express multifunction data acquisition module with 8 simultaneous-sampling analog inputs, 2 analog outputs, 24 bidirectional digital channels and 4 counters/timers.

ManufacturerNI (National Instruments)

ModelPXIe-6356

Part Number781053-01

Product TypePXIe, 8 AI (16-Bit, 1.25 MS/s/ch), 2 AO, 24 DIO, PXI Multifunction I/O Module

● Available to Order

Condition: confirmed per unit

Request current pricing and lead time for this model. Our team will confirm the exact equipment configuration and condition.

Fast RFQ

Quote: PXIe-6356

Free Shippingfull policy linked

30-Day Warrantystandard coverage

30-Day Returnspolicy applies

Technical Supportmodel & compatibility help

Analog Input Resolution16 bits

Simultaneous SamplingYes

Maximum Sample Rate1.25 MS/s/ch

Analog Input Absolute Accuracy313 μV

Number of Counters/Timers4

SOHO Assistant

Ask about this exact model, a replacement, accessory, driver, rental or repair question.

Ask about specifications, compatibility, availability, rental or repair.

Ask SOHO Assistant

Overview

Product overview

Key product information and technical features.

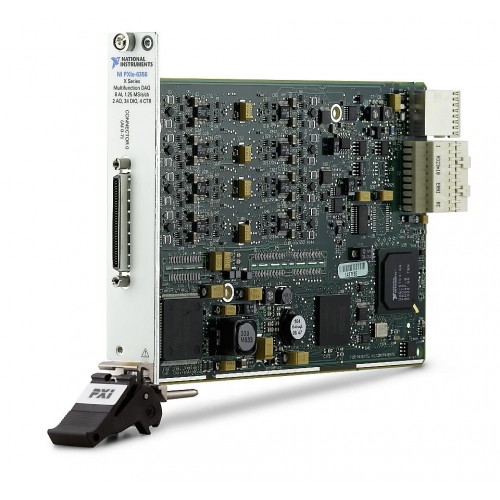

The PXIe-6356 combines simultaneous voltage acquisition with analog output, digital I/O and counter/timer functions in a PXI Express module. Its 8 differential analog inputs provide 16-bit resolution at sample rates up to 1.25 MS/s per channel.

The module provides selectable analog input ranges from ±1 V to ±10 V, two 16-bit analog output channels and a VHDCI front connection. Consult the NI specifications and dimensional drawings when planning signal connections and system integration.

8 differential analog input channels with simultaneous sampling and 16-bit resolution.
Maximum analog input sample rate of 1.25 MS/s per channel.
Selectable analog input ranges of ±10 V, ±5 V, ±2 V and ±1 V.
2 analog output channels with 16-bit resolution and a ±10 V output range.
24 bidirectional digital channels and 4 counters/timers.
PXI Express bus interface with VHDCI front connection.

Verified specifications

Technical data

Verified product specifications.

Analog Input Resolution	16 bits
Simultaneous Sampling	Yes
Maximum Sample Rate	1.25 MS/s/ch
Analog Input Absolute Accuracy	313 μV
Number of Counters/Timers	4
Number of Analog Output Channels	2
Maximum Analog Update Rate	3.3 MS/s/ch
Bus Connector	PXI Express
Number of Bidirectional Digital Channels	24
Electrical Signal Measured	Voltage
Analog Input FIFO Buffer Size	8182 samples
Maximum Number of Differential Analog Input Channels	8
Reconfigurable	No
Number of Analog Input Channels	8
Maximum Digital Update Rate	100 ns
Operating Temperature Range	0 °C to 55 °C
Bus Connection	PXI Express
Digital I/O Logic Levels	5 V
Front Connection Type	VHDCI
Maximum Clock Rate	10 MHz
Number of External Clock Inputs	8
Signaling Type	Single-Ended
Analog Input Voltage Range	-10 V to 10 V -5 V to 5 V -2 V to 2 V -1 V to 1 V
Number of Voltage Output Channels	2
Analog Output Voltage Range	-10 V to 10 V
Analog Output Resolution	16 bits
NI part numbers	781053-01
