PXIe-6355

Name: PXIe-6355
Brand: NI (National Instruments)

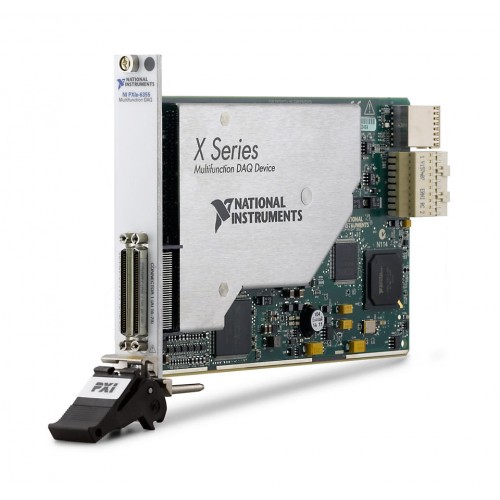

The NI PXIe-6355 is a PXI Express multifunction I/O module with 80 analog inputs, 2 analog outputs, 24 bidirectional digital channels and 4 counters/timers. Its analog inputs provide 16-bit resolution and a maximum sample rate of 1.25 MS/s, without simultaneous sampling.

ManufacturerNI (National Instruments)

ModelPXIe-6355

Part Number783632-01

Product TypePXIe, 80 AI (16-Bit, 1.25 MS/s), 2 AO, 24 DIO, PXI Multifunction I/O Module

● Available to Order

Condition: confirmed per unit

Request current pricing and lead time for this model. Our team will confirm the exact equipment configuration and condition.

Fast RFQ

Quote: PXIe-6355

Free Shippingfull policy linked

30-Day Warrantystandard coverage

30-Day Returnspolicy applies

Technical Supportmodel & compatibility help

Max Single-Ended Analog Input Channels80

Analog Input Resolution16 bits

Maximum Sample Rate1.25 MS/s

Analog Input Absolute Accuracy1520 μV

Number of Counters/Timers4

Simultaneous SamplingNo

SOHO Assistant

Ask about this exact model, a replacement, accessory, driver, rental or repair question.

Ask about specifications, compatibility, availability, rental or repair.

Ask SOHO Assistant

Overview

Product overview

Key product information and technical features.

The PXIe-6355 combines voltage measurement, analog output, digital I/O and counter/timer functions in a PXI Express module. The supplied product record identifies part number 783632-01 for this model.

Its analog input configuration supports up to 80 single-ended or 40 differential channels. Input ranges extend from ±0.1 V to ±10 V, while the two analog outputs provide a ±10 V range. The module uses VHDCI front connections and does not support simultaneous analog input sampling.

80 single-ended or up to 40 differential analog inputs with 16-bit resolution and a maximum sample rate of 1.25 MS/s.
Seven analog input voltage ranges: ±0.1 V, ±0.2 V, ±0.5 V, ±1 V, ±2 V, ±5 V and ±10 V.
Two 16-bit analog outputs with a ±10 V output range and a maximum analog update rate of 2.86 MS/s.
24 bidirectional digital channels with 5 V logic levels.
Four counters/timers complement the analog and digital I/O functions.
PXI Express bus connection and VHDCI front connection.

Verified specifications

Technical data

Verified product specifications.

Maximum Number of Single-Ended Analog Input Channels	80
Analog Input Resolution	16 bits
Simultaneous Sampling	No
Maximum Sample Rate	1.25 MS/s
Analog Input Absolute Accuracy	1520 μV
Number of Counters/Timers	4
Number of Analog Output Channels	2
Maximum Analog Update Rate	2.86 MS/s
Bus Connector	PXI Express
Number of Bidirectional Digital Channels	24
Electrical Signal Measured	Voltage
Analog Input FIFO Buffer Size	4095 samples
Maximum Number of Differential Analog Input Channels	40
Reconfigurable	Yes
Number of Analog Input Channels	80
Maximum Digital Update Rate	100 ns
Operating Temperature Range	0 °C to 55 °C
Bus Connection	PXI Express
Digital I/O Logic Levels	5 V
Front Connection Type	VHDCI
Maximum Clock Rate	10 MHz
Number of External Clock Inputs	8
Signaling Type	Single-Ended
Analog Input Voltage Range	-0.1 V to 0.1 V, -0.2 V to 0.2 V, -0.5 V to 0.5 V, -1 V to 1 V, -2 V to 2 V
Analog Input Voltage Range (cont. 2)	-5 V to 5 V, -10 V to 10 V
Number of Voltage Output Channels	2
Analog Output Voltage Range	-10 V to 10 V
Analog Output Resolution	16 bits
NI part numbers	783632-01
