NI (National Instruments) PXIe-6341 PXIe, 16 AI (16-Bit, 500 kS/s), 2 AO, 24 DIO, PXI Multifunction I/O Module

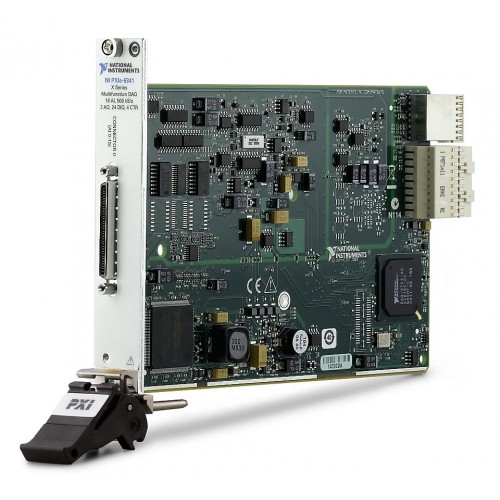

1 image: Click to enlarge

NI (National Instruments) · PXI Express

PXIe-6341

Name: PXIe-6341
Brand: NI (National Instruments)

The NI PXIe-6341 is a PXI Express multifunction I/O module with 16 analog inputs, 2 analog outputs, 24 bidirectional digital channels and four 32-bit counters/timers.

ManufacturerNI (National Instruments)

ModelPXIe-6341

Part Number781052-01

Product TypePXIe, 16 AI (16-Bit, 500 kS/s), 2 AO, 24 DIO, PXI Multifunction I/O Module

● Available to Order

Condition: confirmed per unit

Request current pricing and lead time for this model. Our team will confirm the exact equipment configuration and condition.

Fast RFQ

Quote: PXIe-6341

Free Shippingfull policy linked

30-Day Warrantystandard coverage

30-Day Returnspolicy applies

Technical Supportmodel & compatibility help

Max Single-Ended Analog Input Channels16

Analog Input Resolution16 bits

Maximum Sample Rate500 kS/s

Analog Input Absolute Accuracy60 μV

Number of Counters/Timers4

Simultaneous SamplingNo

SOHO Assistant

Ask about this exact model, a replacement, accessory, driver, rental or repair question.

Ask about specifications, compatibility, availability, rental or repair.

Ask SOHO Assistant

Overview

Product overview

Key product information and technical features.

The PXIe-6341 combines voltage measurement, voltage output, digital I/O and counter/timer functions in a PXI Express module. Its analog input section provides 16-bit resolution and a maximum sample rate of 500 kS/s, with up to 16 single-ended or 8 differential input channels. Simultaneous sampling is not supported.

Two 16-bit analog outputs complement the input section, alongside 24 bidirectional digital channels with 5 V logic levels and four counters/timers. The module uses a VHDCI front connection; consult the NI specifications and drawings when planning signal connections and system integration.

16-bit analog input acquisition at a maximum sample rate of 500 kS/s.
Up to 16 single-ended or 8 differential analog input channels.
Selectable analog input voltage ranges of ±0.2 V, ±1 V, ±5 V and ±10 V.
Two 16-bit analog output channels with a ±10 V output range and a listed maximum update rate of 900 kS/s.
24 bidirectional digital channels with 5 V logic levels.
Four counters/timers provide additional timing and counting functionality.
PXI Express bus interface and VHDCI front connection.

Verified specifications

Technical data

Verified product specifications.

Maximum Number of Single-Ended Analog Input Channels	16
Analog Input Resolution	16 bits
Simultaneous Sampling	No
Maximum Sample Rate	500 kS/s
Analog Input Absolute Accuracy	60 μV
Number of Counters/Timers	4
Number of Analog Output Channels	2
Maximum Analog Update Rate	900 kS/s
Bus Connector	PXI Express
Number of Bidirectional Digital Channels	24
Electrical Signal Measured	Voltage
Analog Input FIFO Buffer Size	2047 samples
Maximum Number of Differential Analog Input Channels	8
Reconfigurable	No
Number of Analog Input Channels	16
Maximum Digital Update Rate	1 µs
Operating Temperature Range	0 °C to 55 °C
Bus Connection	PXI Express
Digital I/O Logic Levels	5 V
Front Connection Type	VHDCI
Maximum Clock Rate	10 MHz
Number of External Clock Inputs	8
Signaling Type	Single-Ended
Analog Input Voltage Range	-0.2 V to 0.2 V -1 V to 1 V -5 V to 5 V -10 V to 10 V
Number of Voltage Output Channels	2
Analog Output Voltage Range	-10 V to 10 V
Analog Output Resolution	16 bits
NI part numbers	781052-01

Condition & included items

What the actual unit includes

Confirm condition, included accessories and revision before ordering.

Condition

Confirmed per unit.

Included

Device / accessories confirmed in quote.

Revision

Exact revision confirmed when relevant.

Compatibility

Complete the measurement chain

Review system components and compatibility requirements.

NI

Manufacturer

PXI Express

Bus Connector

PXIe-6341

This product

Platform shown as listed by NI. Confirm controller, chassis and software fit for your system with NI before integration.

Manuals & software

Technical resources

Manuals, software and technical resources for this model.

Getting Started (NI)Getting Started · ni.com

Open →

Specifications (NI)Specifications · ni.com

Open →

Letter Of Volatility (NI)Letter Of Volatility · ni.com

Open →

Dimensional Drawings (NI)Dimensional Drawings · ni.com

Open →

Product Page (NI)Product Page · ni.com

Open →

Shipping, warranty & returns

Commercial terms

Review shipping, warranty and return terms before ordering.

Shipping

Free Shipping. Full policy terms apply.

Warranty

30-Day Warranty. Standard coverage applies.

Returns

30-Day Returns. Return policy applies.

Price / Availability

Contact SOHO ProLab for current quote and availability.

Lifecycle services

Source, rent or repair the exact model

Choose pricing, rental or repair for this exact model.

Get Price

Current price, availability and exact unit details.

Rent This Model

Request the exact model or a suitable alternative.

Repair This Model

Send the model and failure symptoms for review.

FAQ

Product-specific questions

Product-specific answers based on available technical information.

What is the NI part number for the PXIe-6341?

The supplied verified catalog record lists NI part number 781052-01.

How many analog input channels does the PXIe-6341 provide?

It supports up to 16 single-ended or 8 differential analog input channels, with 16-bit resolution and a maximum sample rate of 500 kS/s.

Does the PXIe-6341 support simultaneous sampling?

No. Simultaneous sampling is listed as not supported.

What output and digital I/O functions are included?

The module provides two 16-bit analog output channels, 24 bidirectional digital channels with 5 V logic levels and four counters/timers.

What platform and front connection does the module use?

The PXIe-6341 uses the PXI Express bus and a VHDCI front connection. Check NI documentation for the required chassis slot and signal-connection accessories.
