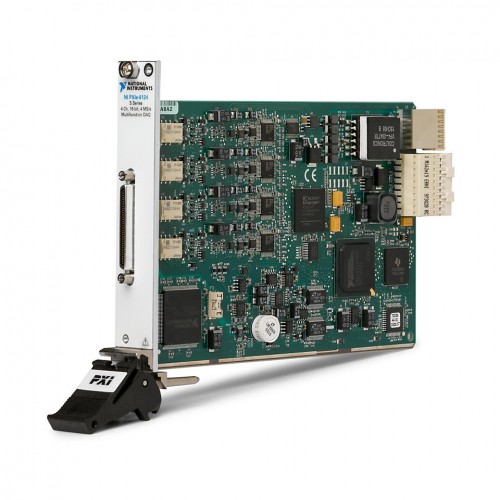

NI (National Instruments) PXIe-6124 PXIe, 4 AI (16-Bit, 4 MS/s/ch), 2 AO, 24 DIO, PXI Multifunction I/O Module

1 image: Click to enlarge

NI (National Instruments) · PXI Express

PXIe-6124

Name: PXIe-6124
Brand: NI (National Instruments)

The NI PXIe-6124, part number 780536-01, is a PXI Express multifunction DAQ module with four 16-bit simultaneous analog inputs at up to 4 MS/s per channel. It also provides two analog outputs, 24 bidirectional digital channels and two counters/timers.

ManufacturerNI (National Instruments)

ModelPXIe-6124

Part Number780536-01

Product TypePXIe, 4 AI (16-Bit, 4 MS/s/ch), 2 AO, 24 DIO, PXI Multifunction I/O Module

● Available to Order

Condition: confirmed per unit

Request current pricing and lead time for this model. Our team will confirm the exact equipment configuration and condition.

Fast RFQ

Quote: PXIe-6124

Free Shippingfull policy linked

30-Day Warrantystandard coverage

30-Day Returnspolicy applies

Technical Supportmodel & compatibility help

Analog Input Resolution16 bits

Simultaneous SamplingYes

Maximum Sample Rate4 MS/s/ch

Analog Input Absolute Accuracy393 μV

Number of Counters/Timers2

SOHO Assistant

Ask about this exact model, a replacement, accessory, driver, rental or repair question.

Ask about specifications, compatibility, availability, rental or repair.

Ask SOHO Assistant

Overview

Product overview

Key product information and technical features.

The PXIe-6124 combines simultaneous voltage acquisition with analog output, digital I/O and counter/timer functions in a PXI Express module. Its four differential analog inputs offer 16-bit resolution and a maximum sampling rate of 4 MS/s per channel.

Two 16-bit analog outputs provide a ±10 V output range and a maximum update rate of 4 MS/s per channel. The module also includes 24 bidirectional digital channels, analog and digital triggering, and a VHDCI front connection.

Four simultaneous differential analog inputs with selectable ±10 V, ±5 V, ±2 V and ±1 V ranges.
16-bit analog input resolution with sampling up to 4 MS/s per channel.
Two 16-bit analog outputs with a ±10 V range.
24 bidirectional digital channels with 5 V logic levels.
Two counters/timers and support for analog and digital triggering.
PXI Express bus interface and VHDCI front connection.

Verified specifications

Technical data

Verified product specifications.

Analog Input Resolution	16 bits
Simultaneous Sampling	Yes
Maximum Sample Rate	4 MS/s/ch
Analog Input Absolute Accuracy	393 μV
Number of Counters/Timers	2
Number of Analog Output Channels	2
Maximum Analog Update Rate	4 MS/s/ch
Bus Connector	PXI Express
Number of Bidirectional Digital Channels	24
Electrical Signal Measured	Voltage
Analog Input FIFO Buffer Size	16382 samples
Maximum Number of Differential Analog Input Channels	4
Reconfigurable	Yes
Number of Analog Input Channels	4
Maximum Digital Update Rate	100 ns
Operating Temperature Range	0 °C to 55 °C
Bus Connection	PXI Express
Digital I/O Logic Levels	5 V
Front Connection Type	VHDCI
Maximum Clock Rate	10 MHz
Number of External Clock Inputs	4
Signaling Type	Single-Ended
Analog Input Voltage Range	-10 V to 10 V -5 V to 5 V -2 V to 2 V -1 V to 1 V
Number of Voltage Output Channels	2
Analog Output Voltage Range	-10 V to 10 V
Analog Output Resolution	16 bits
NI part numbers	780536-01

Condition & included items

What the actual unit includes

Confirm condition, included accessories and revision before ordering.

Condition

Confirmed per unit.

Included

Device / accessories confirmed in quote.

Revision

Exact revision confirmed when relevant.

Compatibility

Complete the measurement chain

Review system components and compatibility requirements.

NI

Manufacturer

PXI Express

Bus Connector

PXIe-6124

This product

Platform shown as listed by NI. Confirm controller, chassis and software fit for your system with NI before integration.

Manuals & software

Technical resources

Manuals, software and technical resources for this model.

Getting Started (NI)Getting Started · ni.com

Open →

Specifications (NI)Specifications · ni.com

Open →

Dimensional Drawings (NI)Dimensional Drawings · ni.com

Open →

Product Page (NI)Product Page · ni.com

Open →

Shipping, warranty & returns

Commercial terms

Review shipping, warranty and return terms before ordering.

Shipping

Free Shipping. Full policy terms apply.

Warranty

30-Day Warranty. Standard coverage applies.

Returns

30-Day Returns. Return policy applies.

Price / Availability

Contact SOHO ProLab for current quote and availability.

Lifecycle services

Source, rent or repair the exact model

Choose pricing, rental or repair for this exact model.

Get Price

Current price, availability and exact unit details.

Rent This Model

Request the exact model or a suitable alternative.

Repair This Model

Send the model and failure symptoms for review.

FAQ

Product-specific questions

Product-specific answers based on available technical information.

What is the NI part number for the PXIe-6124?

The listed NI part number is 780536-01.

Does the PXIe-6124 sample its analog inputs simultaneously?

Yes. Its four differential analog inputs support simultaneous sampling at up to 4 MS/s per channel with 16-bit resolution.

What outputs and digital I/O does the module provide?

It provides two 16-bit analog outputs with a ±10 V range, plus 24 bidirectional digital channels and two counters/timers.

Which platform and front connection does the PXIe-6124 use?

The module uses the PXI Express bus and a VHDCI front connection. Check the NI documentation for the required chassis slot and signal-connection accessories.
