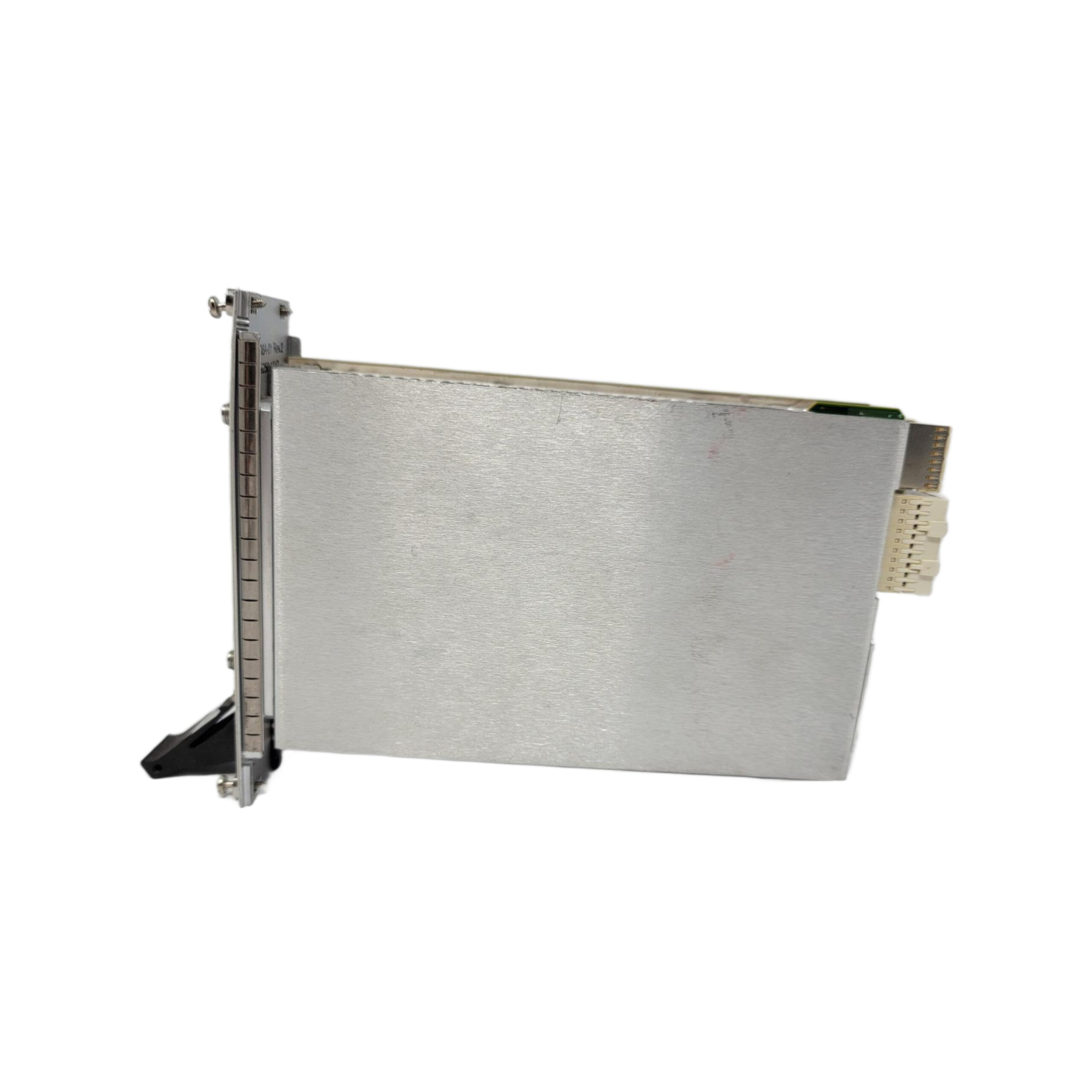

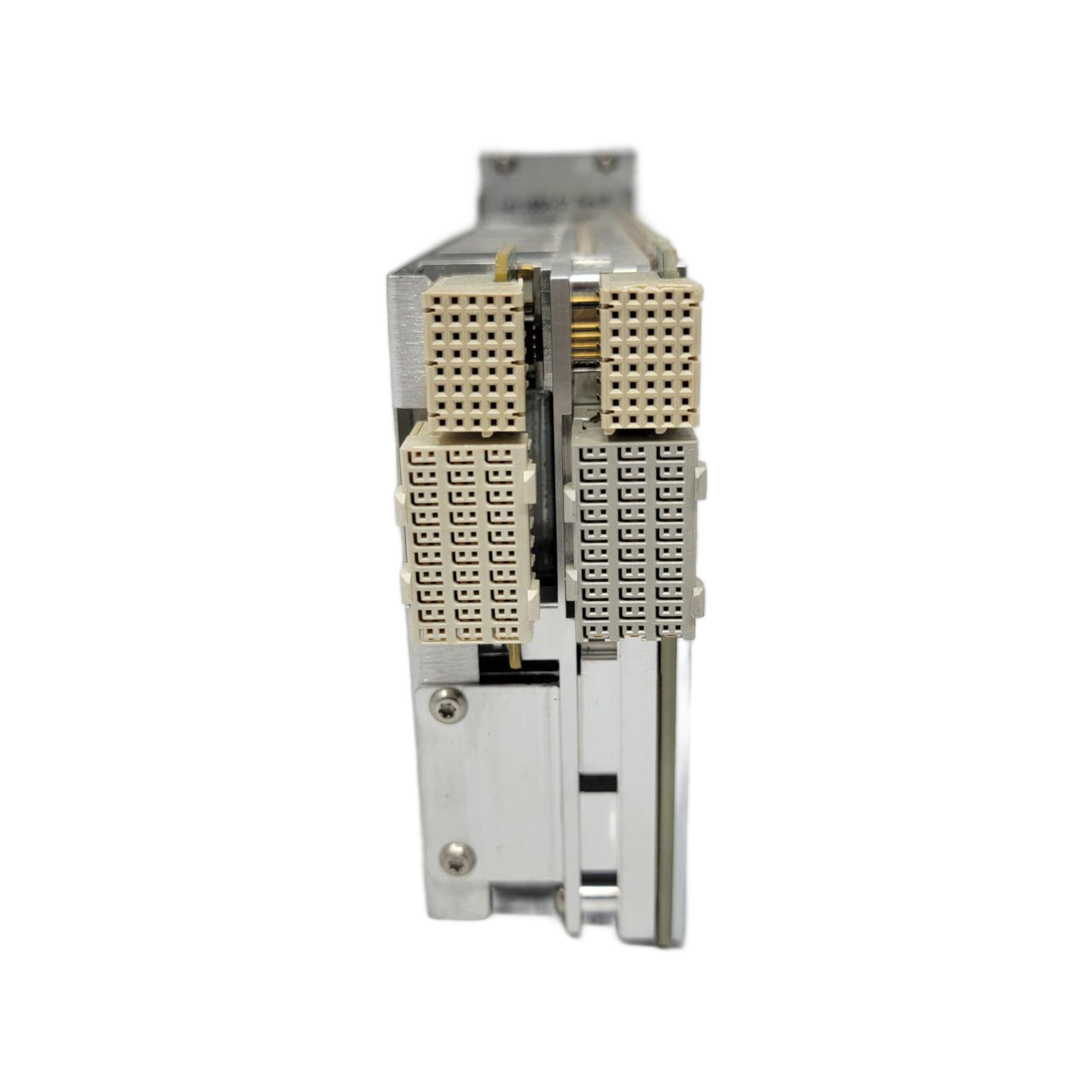

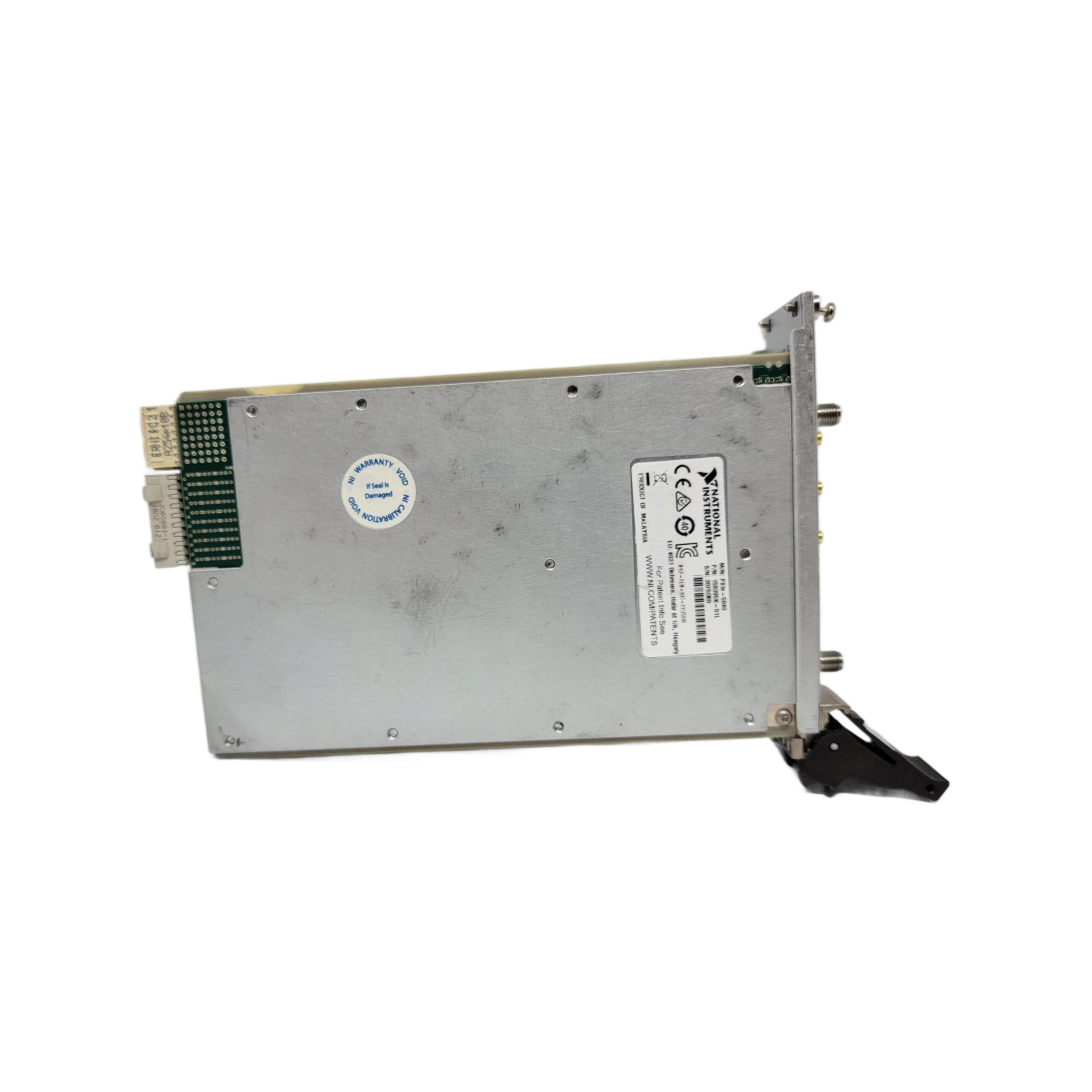

National Instruments PXIe-5840 product image 1 additional viewNational Instruments PXIe-5840 product image 1 additional viewNational Instruments PXIe-5840 product image 1 additional view
4 images: additional views below.Click to enlarge
National Instruments · PXI Express

PXIe-5840

The NI PXIe-5840 is a reconfigurable RF vector signal transceiver for signal generation and analysis. It covers 9 kHz to 6 GHz with up to 1 GHz instantaneous bandwidth, depending on center frequency.

ManufacturerNational Instruments
ModelPXIe-5840
Product TypeRF vector signal transceiver
● Available to Order
Condition: confirmed per unit

Request current pricing and lead time for this model. Our team will confirm the exact equipment configuration and condition.

Fast RFQ

Quote: PXIe-5840

We will reply by email.
Free Shippingfull policy linked
30-Day Warrantystandard coverage
30-Day Returnspolicy applies
Technical Supportmodel & compatibility help
Instrument typeRF vector signal transceiver
Frequency coverage9 kHz to 6 GHz, RF input and output
Maximum instantaneous bandwidth1 GHz at center frequencies above 2.2 GHz
Programming optionsRFmx, NI-RFSA and NI-RFSG
SOHO Assistant
Ask about this exact model, a replacement, accessory, driver, rental or repair question.
Ask about specifications, compatibility, availability, rental or repair.
Ask SOHO Assistant
Overview

Product overview

Key product information and technical features.

The PXIe-5840 brings RF generation and acquisition into a PXI Express instrument. NI documents installation, configuration and device testing in its model-specific getting-started guide.

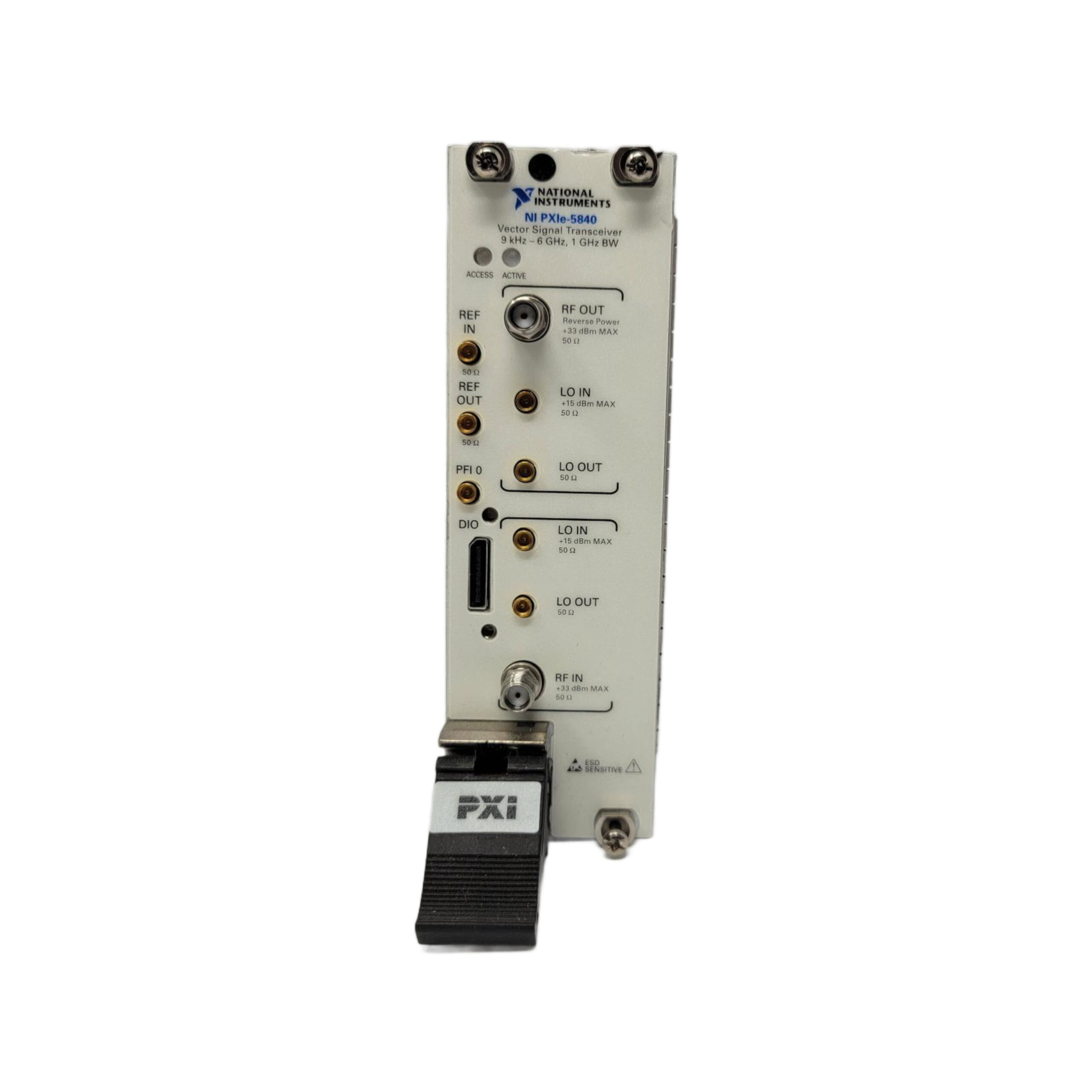

Front-panel reference-clock and programmable trigger connections support integration into measurement systems. The DIO connector provides access to FPGA multi-gigabit transceivers and general-purpose LVCMOS signals.

  • RF input and output for vector signal analysis and generation.
  • External 10 MHz reference-clock input and selectable 10 MHz reference or 156.25 MHz data-clock output.
  • Bidirectional PFI 0 connection for external triggers and exported events.
  • Software programming through RFmx or NI-RFSA and NI-RFSG drivers.
Verified specifications

Technical data

Verified product specifications.

RF input and output frequency range9 kHz to 6 GHz
Instantaneous bandwidth by center frequency9 kHz–<120 MHz: 410–650 MHz: 100 MHz; >650 MHz–1.3 GHz: 200 MHz; >1.3–2.2 GHz: 500 MHz; >2.2–6 GHz: 1 GHz.
External reference-clock input10 MHz
Reference-clock input connectorMMPX female
Condition & included items

What the actual unit includes

Confirm condition, included accessories and revision before ordering.

Condition

Confirmed per unit.

Included

Device / accessories confirmed in quote.

Revision

Exact revision confirmed when relevant.

Compatibility

Complete the measurement chain

Review system components and compatibility requirements.

National Instruments

Manufacturer

PXI Express

Modular instrumentation platform

PXIe-5840

RF vector signal transceiver

Acquisition driver

NI-RFSA

The DIO connector is not an OCuLink interface; do not connect it to an OCuLink port.
