National Instruments PXIe-5672 RF vector signal generator

1 image: Click to enlarge

National Instruments · PXI Express

PXIe-5672

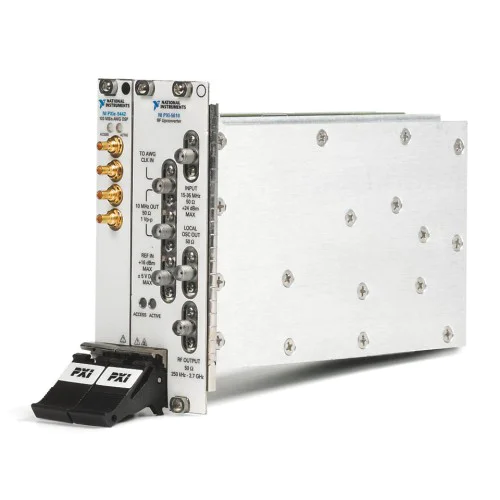

The National Instruments PXIe-5672 is an RF vector signal generator covering 250 kHz to 2.7 GHz with 20 MHz instantaneous bandwidth. Its two-module architecture combines a PXIe-5442 waveform generator and a PXI-5610 RF upconverter.

ManufacturerNational Instruments

ModelPXIe-5672

Part Number779900-03

Product TypeRF vector signal generator

● Available to Order

Condition: confirmed per unit

Request current pricing and lead time for this model. Our team will confirm the exact equipment configuration and condition.

Fast RFQ

Quote: PXIe-5672

Free Shippingfull policy linked

30-Day Warrantystandard coverage

30-Day Returnspolicy applies

Technical Supportmodel & compatibility help

Frequency range250 kHz to 2.7 GHz

Instantaneous bandwidth20 MHz

RF output channels1

Slot footprint3 slots

Memory configurationConfirm installed variant; catalog memory and part-number references conflict
