National Instruments · PXI Express

PXIe-5650

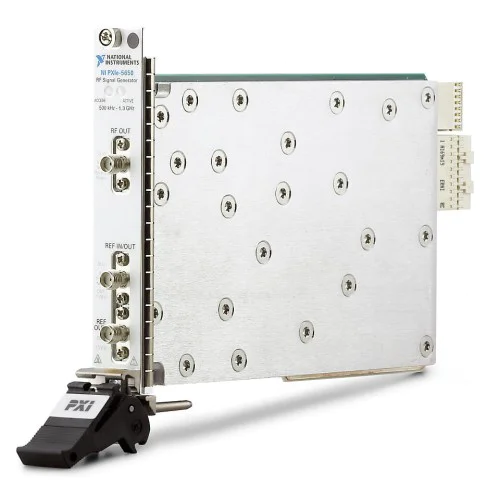

The National Instruments PXIe-5650 is a PXI Express continuous-wave RF signal generator with modulation capability. It is controlled through the NI-RFSG instrument driver or NI-RFSG Soft Front Panel.

ManufacturerNational Instruments

ModelPXIe-5650

Product TypeRF analog signal generator

● Available to Order

Condition: confirmed per unit

Request current pricing and lead time for this model. Our team will confirm the exact equipment configuration and condition.

Fast RFQ

Quote: PXIe-5650

Free Shippingfull policy linked

30-Day Warrantystandard coverage

30-Day Returnspolicy applies

Technical Supportmodel & compatibility help

FunctionContinuous-wave RF generation with modulation

PlatformPXI Express

Supported slotsPXI Express peripheral or hybrid peripheral

Control softwareNI-RFSG driver and Soft Front Panel

SOHO Assistant

Ask about this exact model, a replacement, accessory, driver, rental or repair question.

Ask about specifications, compatibility, availability, rental or repair.

Ask SOHO Assistant

Overview

Product overview

Key product information and technical features.

The PXIe-5650 belongs to NI's PXIe-5650/5651/5652 RF signal generator family. NI documents this family for stand-alone RF generation within a PXI Express chassis using a compatible embedded controller or MXI controller system.

NI-RFSG supports programmatic control, while the Soft Front Panel provides interactive frequency and power settings. NI Measurement & Automation Explorer is used for device discovery, configuration, and self-test.

Continuous-wave RF generation with modulation capability.
NI-RFSG instrument-driver and Soft Front Panel support.
RF OUT, REF IN/OUT, and REF OUT2 front-panel connections.
