National Instruments PXIe-5645 Vector signal transceiver

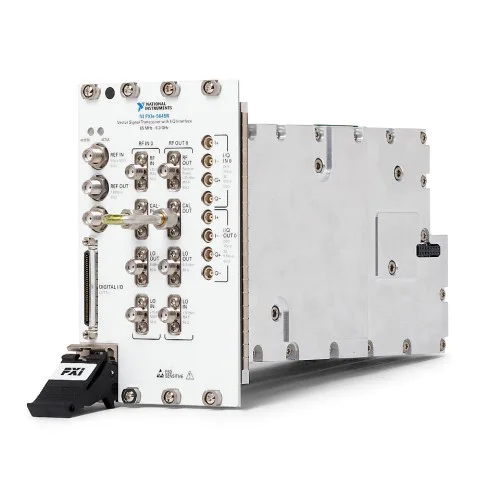

1 image: Click to enlarge
National Instruments · PXI Express

PXIe-5645

The NI PXIe-5645 combines vector signal generation, analysis, and FPGA-based real-time processing with baseband I/Q connectivity.

ManufacturerNational Instruments
ModelPXIe-5645
Part Number782377-01
Product TypeVector signal transceiver
● Available to Order
Condition: confirmed per unit

Request current pricing and lead time for this model. Our team will confirm the exact equipment configuration and condition.

Fast RFQ

Quote: PXIe-5645

We will reply by email.
Free Shippingfull policy linked
30-Day Warrantystandard coverage
30-Day Returnspolicy applies
Technical Supportmodel & compatibility help
RF generation65 MHz to 6 GHz
Analyzer bandwidth80 MHz instantaneous
Baseband interfaceDifferential or single-ended I/Q
