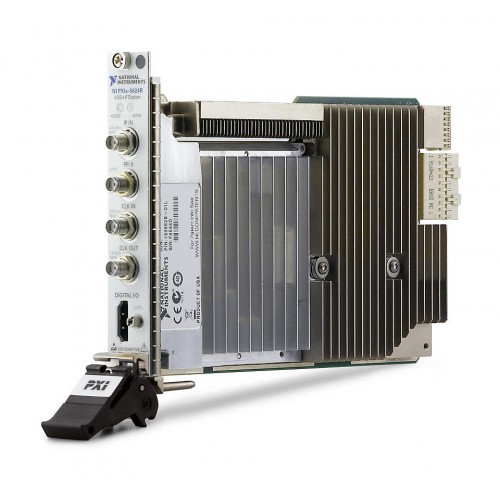

NI (National Instruments) PXIe-5624 2 GS/s, 12-Bit PXI IF Digitizer
1 image: Click to enlarge
NI (National Instruments) · PXI

PXIe-5624

The NI PXIe-5624, part number 783132-01, is a single-channel PXI Express IF digitizer with 2 GS/s sampling, 12-bit resolution and 2 GB onboard memory. It includes an onboard digital downconverter for converting IF signals to I/Q data.

ManufacturerNI (National Instruments)
ModelPXIe-5624
Part Number783132-01
Product Type2 GS/s, 12-Bit PXI IF Digitizer
● Available to Order
Condition: confirmed per unit

Request current pricing and lead time for this model. Our team will confirm the exact equipment configuration and condition.

Fast RFQ

Quote: PXIe-5624

We will reply by email.
Free Shippingfull policy linked
30-Day Warrantystandard coverage
30-Day Returnspolicy applies
Technical Supportmodel & compatibility help
Input Impedance50 Ohm
IF Digitizer Channels1
IF Digitizer Maximum Bandwidth2 GHz
IF Digitizing Resolution12 bits
IF Digitizer Onboard Memory Size2 GB
Sample Rate2 GS/s
SOHO Assistant
Ask about this exact model, a replacement, accessory, driver, rental or repair question.
Ask about specifications, compatibility, availability, rental or repair.
Ask SOHO Assistant
Overview

Product overview

Key product information and technical features.

The PXIe-5624 is an IF digitizer optimized for superheterodyne receiver architectures. Its single analog input provides AC coupling and 50 Ohm impedance, with 12-bit digitizing at up to 2 GS/s.

The module uses a PXI Express bus connection and supports reconfiguration and peer-to-peer streaming. Its onboard digital downconverter converts IF signals to I/Q data. It can serve as a stand-alone IF digitizer or as part of a PXI Vector Signal Analyzer.

  • Single-channel IF digitizing with 12-bit resolution and a maximum sample rate of 2 GS/s.
  • 2 GHz maximum IF digitizer bandwidth.
  • 2 GB onboard DRAM for acquisition data.
  • Onboard digital downconverter for IF-to-I/Q conversion.
  • AC-coupled, 50 Ohm analog input.
  • PXI Express interface with peer-to-peer streaming support.
Verified specifications

Technical data

Verified product specifications.

Input Impedance50 Ohm
Number of IF Digitizer Channels1
IF Digitizer Maximum Bandwidth2 GHz
IF Digitizing Resolution12 bits
IF Digitizer Onboard Memory Size2 GB
Sample Rate2 GS/s
SFDR-72 dBc
Supported Hardware PlatformPXI
ReconfigurableYes
Supports Peer To Peer StreamingYes
Bus ConnectionPXI Express
Analog Input Bandwidth2 GHz
Analog Input CouplingAC
Analog Input Impedance50 Ohm
Analog Input Resolution12 bits
Analog Input Voltage Range-0.5 V to 5.5 V
Dynamic RAM (DRAM)2 GB
EnclosedYes
Maximum Sample Rate2 GS/s
Number of Voltage Input Channels1
Onboard Digital DownconverterYes
NI part numbers783132-01
Condition & included items

What the actual unit includes

Confirm condition, included accessories and revision before ordering.

Condition

Confirmed per unit.

Included

Device / accessories confirmed in quote.

Revision

Exact revision confirmed when relevant.

Compatibility

Complete the measurement chain

Review system components and compatibility requirements.

NI

Manufacturer

PXI

Supported Hardware Platform

PXIe-5624

This product

Platform shown as listed by NI. Confirm controller, chassis and software fit for your system with NI before integration.
