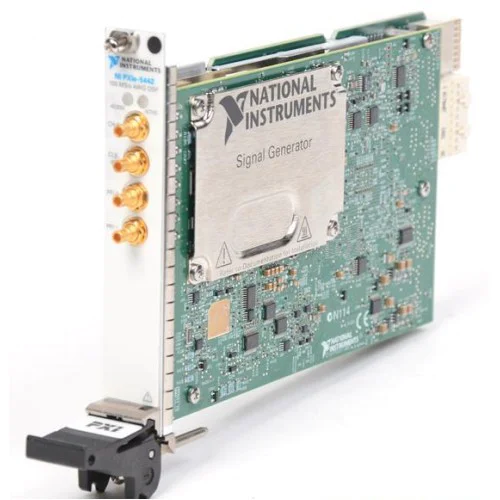

1 image: Click to enlarge

National Instruments · PXI Express

PXIe-5442

The NI PXIe-5442 is a 100 MS/s, 16-bit arbitrary waveform generator with onboard signal processing.

ManufacturerNational Instruments

ModelPXIe-5442

Product TypeArbitrary waveform generator

● Available to Order

Condition: confirmed per unit

Request current pricing and lead time for this model. Our team will confirm the exact equipment configuration and condition.

Fast RFQ

Quote: PXIE-5442

Free Shippingfull policy linked

30-Day Warrantystandard coverage

30-Day Returnspolicy applies

Technical Supportmodel & compatibility help

Channels1

Output connectorSMB jack

Form factor3U, single-slot

SOHO Assistant

Ask about this exact model, a replacement, accessory, driver, rental or repair question.

Ask about specifications, compatibility, availability, rental or repair.

Ask SOHO Assistant

Overview

Product overview

Key product information and technical features.

This PXI Express module provides selectable Main and Direct output paths. The Direct path is optimized for intermediate-frequency applications.

Arbitrary waveform and sequence modes
Software-selectable DAC interpolation
Onboard signal processing

Verified specifications

Technical data

Verified product specifications.

Internal sample rate, maximum	100 MS/s
DAC resolution	16 bits
Main-path amplitude into 50 Ω	0.00564–2.00 Vpk-pk
Output impedance, nominal	50 or 75, software-selectable Ω
Effective DAC rate with interpolation, maximum	400 MS/s

Condition & included items

What the actual unit includes

Confirm condition, included accessories and revision before ordering.

Condition

Confirmed per unit.

Included

Device / accessories confirmed in quote.

Revision

Exact revision confirmed when relevant.

Compatibility

Complete the measurement chain

Review system components and compatibility requirements.

National Instruments

Manufacturer

PXI Express

Platform

PXIe-5442

Waveform generation

Confirm the installed memory option before planning waveform storage.

Manuals & software

Technical resources

Manuals, software and technical resources for this model.

NI PXIe-5442 SpecificationsSpecifications PDF · download.ni.com

Open →

NI-FGEN 18.5 ReadmeTechnical resource

Open →

Shipping, warranty & returns

Commercial terms

Review shipping, warranty and return terms before ordering.

Shipping

Free Shipping. Full policy terms apply.

Warranty

30-Day Warranty. Standard coverage applies.

Returns

30-Day Returns. Return policy applies.

Price / Availability

Contact SOHO ProLab for current quote and availability.

Lifecycle services

Source, rent or repair the exact model

Choose pricing, rental or repair for this exact model.

Get Price

Current price, availability and exact unit details.

Rent This Model

Request the exact model or a suitable alternative.

Repair This Model

Send the model and failure symptoms for review.

Explore equipment

PXI Platform

Shipping, warranty and returns

FAQ

Product-specific questions

Product-specific answers based on available technical information.

Is 400 MS/s the native sample rate?

No. It is the effective DAC rate with interpolation.

Which memory options were documented?

32, 256 and 512 MB; this unit's option is unspecified.
