NI (National Instruments) PXIe-5433 PXIe, 80 MHz Bandwidth, 1- or 2-Channel, 16-Bit PXI Waveform Generator
1 image: Click to enlarge
NI (National Instruments) · PXI

PXIe-5433

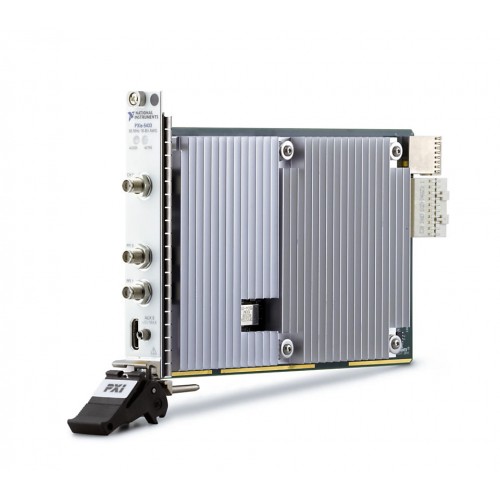

The NI PXIe-5433 is a PXI Express arbitrary waveform generator with 80 MHz bandwidth and 16-bit analog output resolution. The model family includes 1- and 2-channel variants.

ManufacturerNI (National Instruments)
ModelPXIe-5433
Part Number785118-01 · 785117-01
Product TypePXIe, 80 MHz Bandwidth, 1- or 2-Channel, 16-Bit PXI Waveform Generator
● Available to Order
Condition: confirmed per unit

Request current pricing and lead time for this model. Our team will confirm the exact equipment configuration and condition.

Fast RFQ

Quote: PXIe-5433

We will reply by email.
Free Shippingfull policy linked
30-Day Warrantystandard coverage
30-Day Returnspolicy applies
Technical Supportmodel & compatibility help
Supports Arbitrary WaveformsYes
Maximum Bandwidth80 MHz
Analog Output Voltage Range-12 V to 12 V
Analog Output Resolution16 bits
RF Signal GenerationYes
Supports Digital UpconversionNo
SOHO Assistant
Ask about this exact model, a replacement, accessory, driver, rental or repair question.
Ask about specifications, compatibility, availability, rental or repair.
Ask SOHO Assistant
Overview

Product overview

Key product information and technical features.

The PXIe-5433 provides arbitrary waveform generation in the PXI platform using a PXI Express bus connection. Its 80 MHz bandwidth and 16-bit output resolution define the model's core signal-generation capabilities.

The supplied structured record identifies both single-channel and dual-channel versions. Confirm the installed unit's part number when selecting a channel configuration; the model name alone does not distinguish these variants.

  • 80 MHz maximum bandwidth.
  • 16-bit analog output resolution.
  • Supports user-defined arbitrary waveforms.
  • Analog output voltage range from -12 V to +12 V.
  • Supports waveform scripting.
  • Includes reconstruction filtering.
Verified specifications

Technical data

Verified product specifications.

Supports Arbitrary WaveformsYes
Maximum Bandwidth80 MHz
Supports Digital UpconversionNo
Analog Output Voltage Range-12 V to 12 V
Analog Output Resolution16 bits
RF Signal GenerationYes
Maximum Analog Update Rate400 MS/s
Supports ScriptingYes
Bus ConnectionPXI Express
Supported Hardware PlatformPXI
ReconfigurableNo
Maximum Sample Rate400 MS/s
Reconstruction FilterYes
NI part numbers785118-01, 785117-01
Condition & included items

What the actual unit includes

Confirm condition, included accessories and revision before ordering.

Condition

Confirmed per unit.

Included

Device / accessories confirmed in quote.

Revision

Exact revision confirmed when relevant.

Compatibility

Complete the measurement chain

Review system components and compatibility requirements.

NI

Manufacturer

PXI

Supported Hardware Platform

PXIe-5433

This product

Platform shown as listed by NI. Confirm controller, chassis and software fit for your system with NI before integration.
Manuals & software

Technical resources

Manuals, software and technical resources for this model.

Specifications (NI)Specifications · ni.com
Open →
User Manual (NI)User Manual · ni.com
Open →
Letter Of Volatility (NI)Letter Of Volatility · ni.com
Open →
Dimensional Drawings (NI)Dimensional Drawings · ni.com
Open →
Product Page (NI)Product Page · ni.com
Open →
Shipping, warranty & returns

Commercial terms

Review shipping, warranty and return terms before ordering.

Shipping
Free Shipping. Full policy terms apply.
Warranty
30-Day Warranty. Standard coverage applies.
Returns
30-Day Returns. Return policy applies.
Price / Availability
Contact SOHO ProLab for current quote and availability.
Lifecycle services

Source, rent or repair the exact model

Choose pricing, rental or repair for this exact model.

Get Price

Current price, availability and exact unit details.

Rent This Model

Request the exact model or a suitable alternative.

Repair This Model

Send the model and failure symptoms for review.

Explore equipment

Electronic Test and Instrumentation

Shipping, warranty and returns

FAQ

Product-specific questions

Product-specific answers based on available technical information.

Is the PXIe-5433 a single-channel or dual-channel generator?

Both variants are listed in the existing structured record: part number 785117-01 has one channel and 785118-01 has two channels. Confirm the specific unit's part number.

What bandwidth and resolution does the PXIe-5433 provide?

The existing verified specifications list 80 MHz maximum bandwidth and 16-bit analog output resolution.

Does the PXIe-5433 support arbitrary waveforms and scripting?

Yes. Both arbitrary waveform generation and waveform scripting are supported according to the existing verified specifications.

Does it support digital upconversion?

No. The existing verified specifications identify digital upconversion as unsupported.
