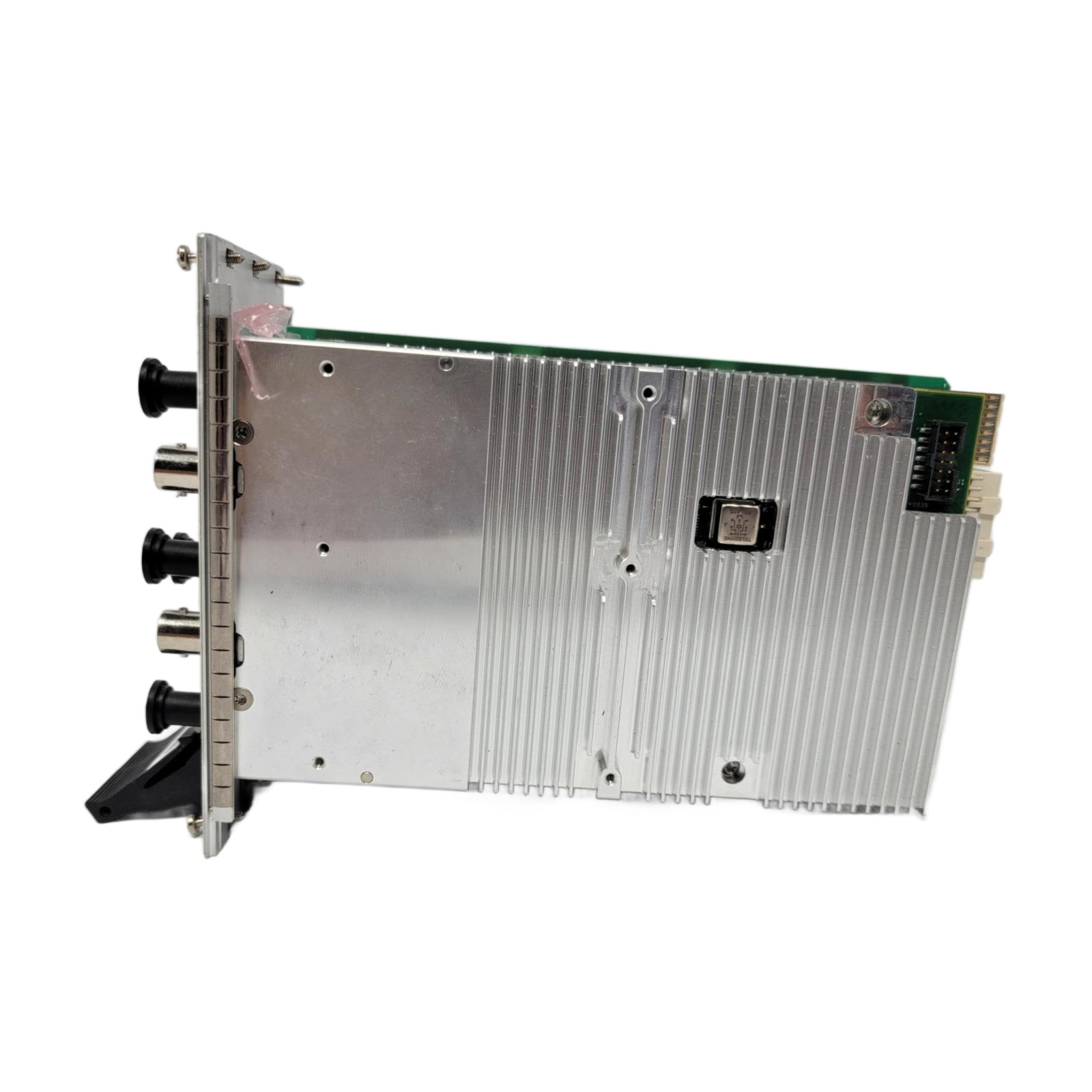

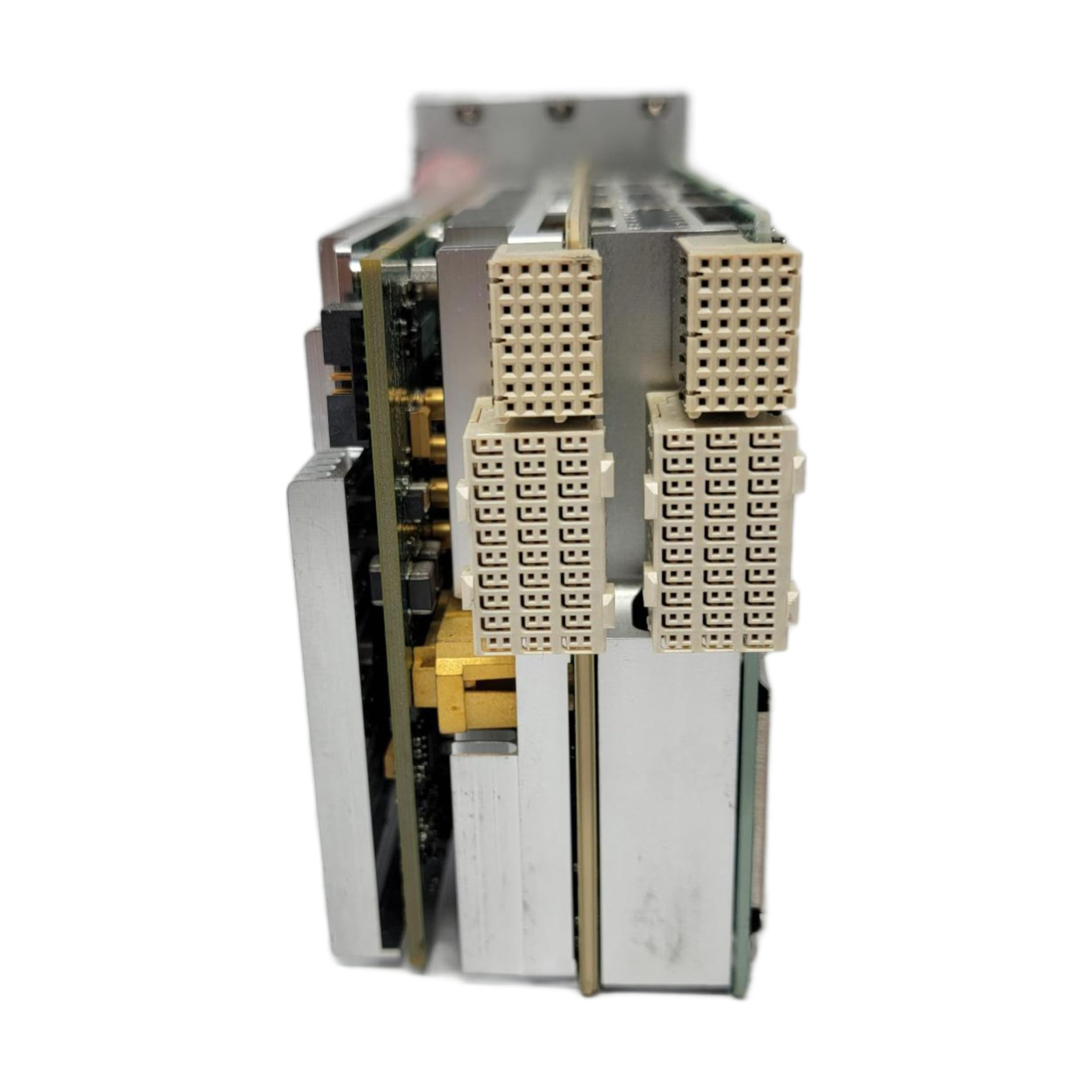

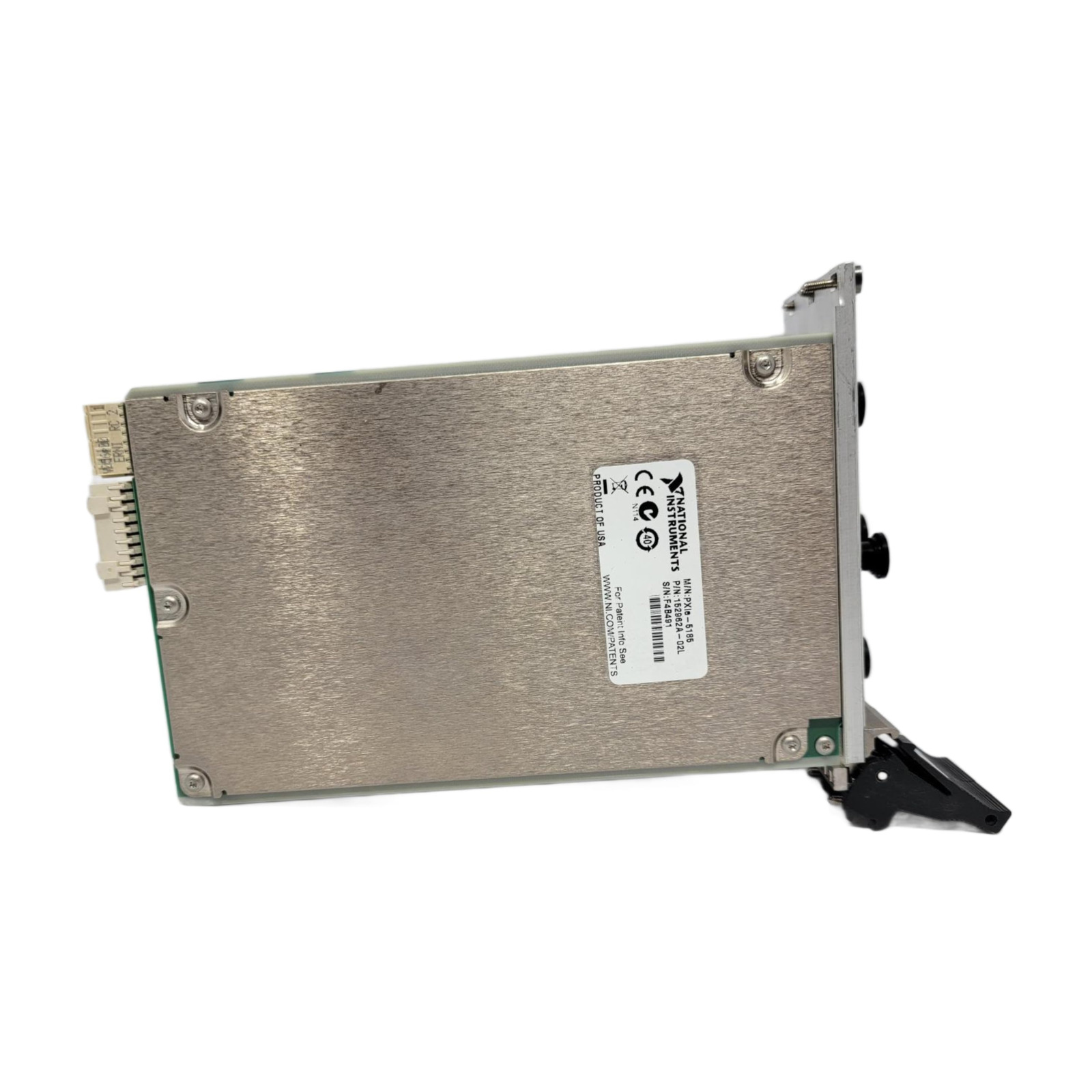

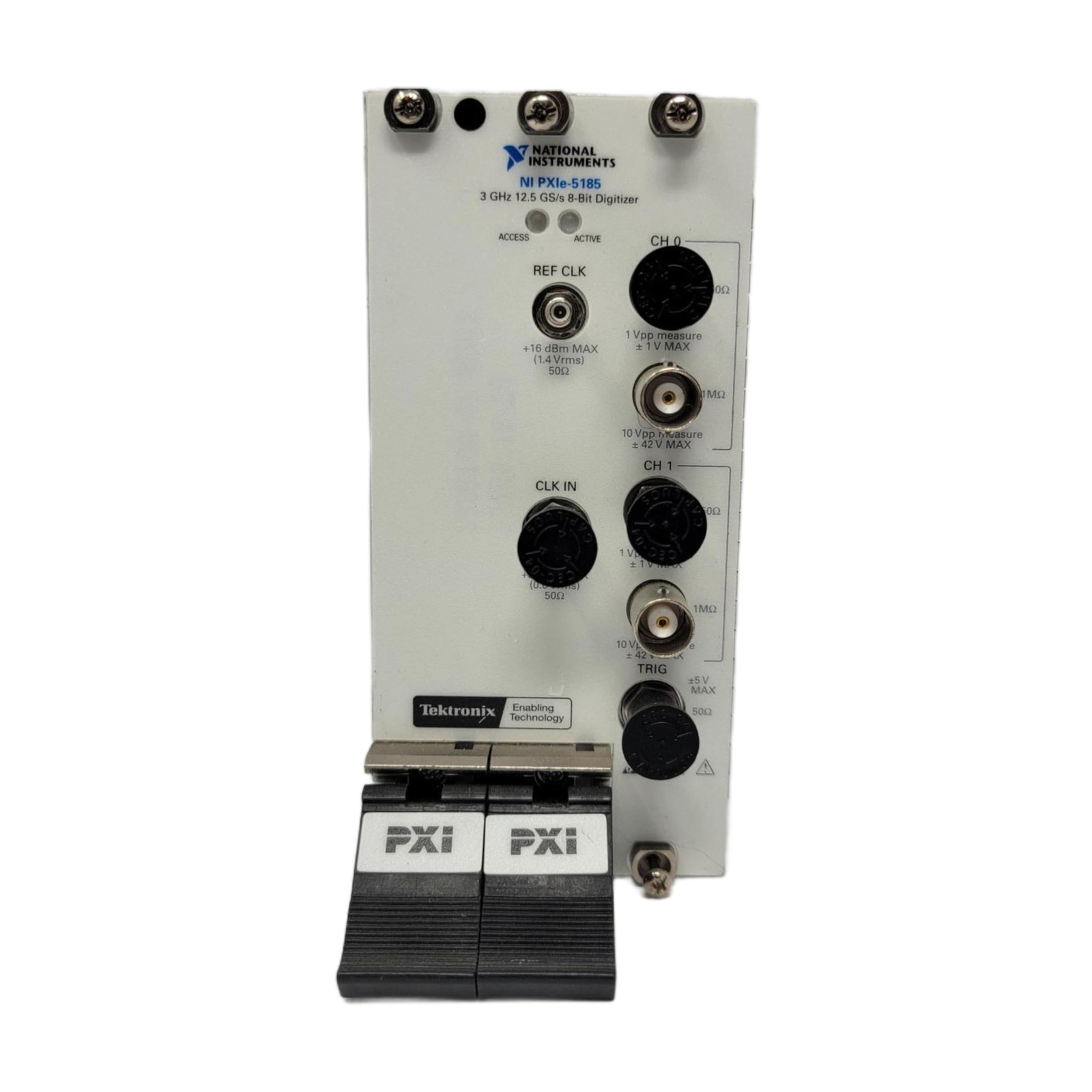

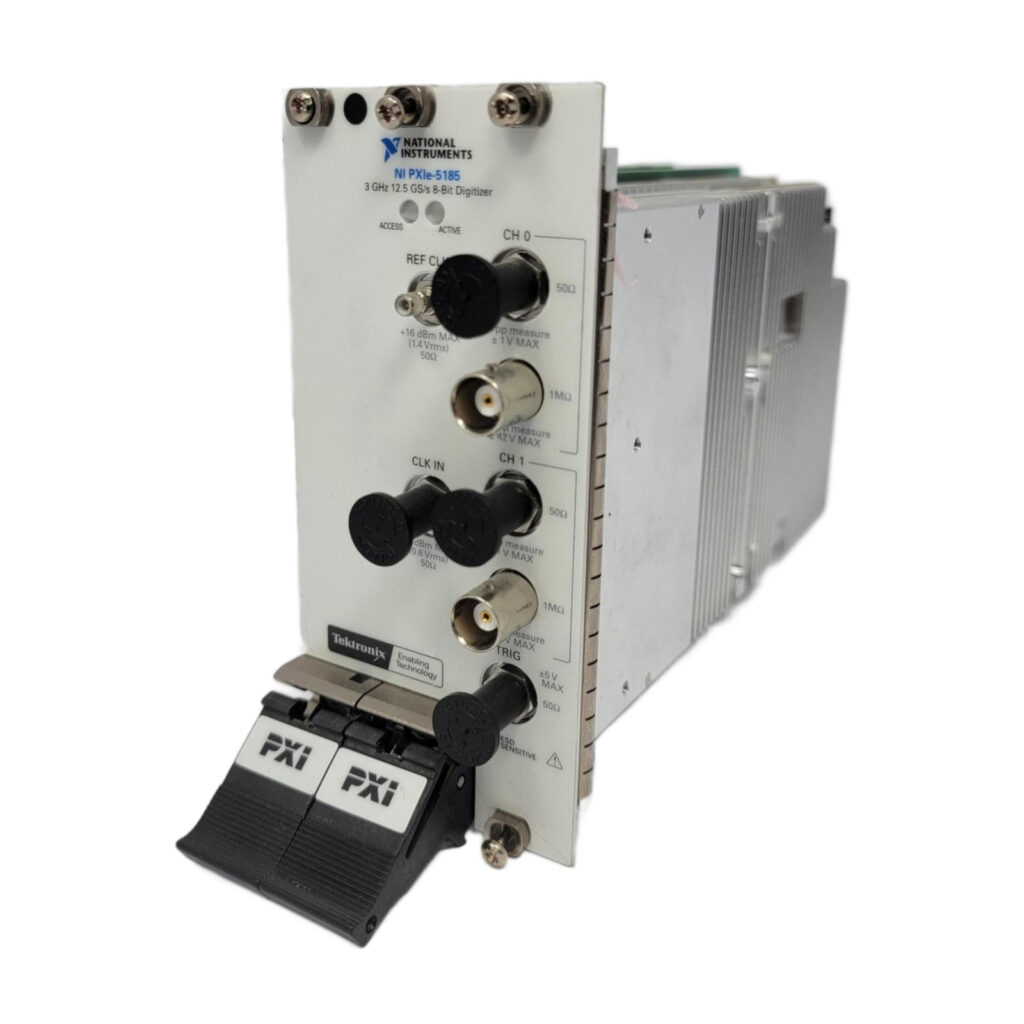

National Instruments PXIE-5185 product image 1

National Instruments PXIE-5185 product image 1 additional view

5 images: additional views below.Click to enlarge

NI (National Instruments) · PXI

PXIe-5185

The NI PXIe-5185 is a two-channel PXI Express oscilloscope with 3 GHz maximum bandwidth, a 12.5 GS/s maximum sample rate, and 8-bit analog input resolution.

ManufacturerNI (National Instruments)

ModelPXIe-5185

Part Number782057-12 · 782057-11

Product TypePXIe, 3 GHz, 12.5 GS/s, 8-Bit PXI Oscilloscope

● Available to Order

Condition: confirmed per unit

Request current pricing and lead time for this model. Our team will confirm the exact equipment configuration and condition.

Fast RFQ

Quote: PXIe-5185

Free Shippingfull policy linked

30-Day Warrantystandard coverage

30-Day Returnspolicy applies

Technical Supportmodel & compatibility help

Bus ConnectionPXI Express

Analog Input Impedance50 Ohm, 1 MOhm

Oscilloscope Maximum Bandwidth3 GHz

Voltage Input Channels2

Maximum Sample Rate12.5 GS/s

Analog Input Voltage Range-1 V to 1 V

SOHO Assistant

Ask about this exact model, a replacement, accessory, driver, rental or repair question.

Ask about specifications, compatibility, availability, rental or repair.

Ask SOHO Assistant

Overview

Product overview

Key product information and technical features.

The PXIe-5185 combines two voltage input channels with 3 GHz maximum bandwidth and 8-bit resolution in a PXI Express instrument. It belongs to NI's oscilloscope and digitizer family for PXI systems.

The listed input options include AC/DC coupling and 50 Ω or 1 MΩ impedance. For system integration, consult the model-specific specifications and NI high-speed digitizer getting-started guide; maximum bandwidth and sample rate should not be treated as unconditional settings for every acquisition configuration.

3 GHz maximum oscilloscope bandwidth and 12.5 GS/s maximum sample rate.
Two voltage input channels with 8-bit analog input resolution.
AC/DC input coupling with listed impedance options of 50 Ω and 1 MΩ.
PXI Express bus connection for the PXI hardware platform.
No onboard digital downconverter, CableSense, or peer-to-peer streaming support.

Verified specifications

Technical data

Verified product specifications.

Bus Connection	PXI Express
Analog Input Impedance	50 Ohm, 1 MOhm
Oscilloscope Maximum Bandwidth	3 GHz
Number of Voltage Input Channels	2
Maximum Sample Rate	12.5 GS/s
Analog Input Voltage Range	-1 V to 1 V
Analog Input Resolution	8 bits
CableSense™	No
Supported Hardware Platform	PXI
Reconfigurable	No
Supports Peer To Peer Streaming	No
Analog Input Coupling	AC/DC
Enclosed	Yes
Onboard Digital Downconverter	No
NI part numbers	782057-12, 782057-11

Condition & included items

What the actual unit includes

Confirm condition, included accessories and revision before ordering.

Condition

Confirmed per unit.

Included

Device / accessories confirmed in quote.

Revision

Exact revision confirmed when relevant.

Compatibility

Complete the measurement chain

Review system components and compatibility requirements.

NI

Manufacturer

PXI

Supported Hardware Platform

PXIe-5185

This product

Platform shown as listed by NI. Confirm controller, chassis and software fit for your system with NI before integration.

Manuals & software

Technical resources

Manuals, software and technical resources for this model.

Getting Started (NI)Getting Started · ni.com

Open →

Letter Of Volatility (NI)Letter Of Volatility · ni.com

Open →

Specifications (NI)Specifications · ni.com

Open →

Dimensional Drawings (NI)Dimensional Drawings · ni.com

Open →

Product Page (NI)Product Page · ni.com

Open →

Shipping, warranty & returns

Commercial terms

Review shipping, warranty and return terms before ordering.

Shipping

Free Shipping. Full policy terms apply.

Warranty

30-Day Warranty. Standard coverage applies.

Returns

30-Day Returns. Return policy applies.

Price / Availability

Contact SOHO ProLab for current quote and availability.

Lifecycle services

Source, rent or repair the exact model

Choose pricing, rental or repair for this exact model.

Get Price

Current price, availability and exact unit details.

Rent This Model

Request the exact model or a suitable alternative.

Repair This Model

Send the model and failure symptoms for review.

Explore equipment

Electronic Test and Instrumentation

Shipping, warranty and returns

FAQ

Product-specific questions

Product-specific answers based on available technical information.

What are the PXIe-5185 bandwidth and sample-rate specifications?

The listed maximum bandwidth is 3 GHz, and the maximum sample rate is 12.5 GS/s. Consult NI's specifications for acquisition configuration limits.

How many channels does the PXIe-5185 provide?

It has two voltage input channels with 8-bit analog input resolution.

What input coupling and impedance options are listed?

The preserved specifications list AC/DC coupling and input impedance options of 50 Ω and 1 MΩ.

Which NI part numbers are associated with the PXIe-5185?

The catalog's verified identity data lists 782057-12 and 782057-11. Configuration differences between these part numbers are not established in the supplied data.

Does the PXIe-5185 support peer-to-peer streaming?

No. The preserved verified specifications list peer-to-peer streaming support as No.
