NI (National Instruments) PXIe-5171 PXIe, 250 MHz, 8-Channel, 14-Bit, Kintex-7 410T FPGA Reconfigurable PXI Oscilloscope

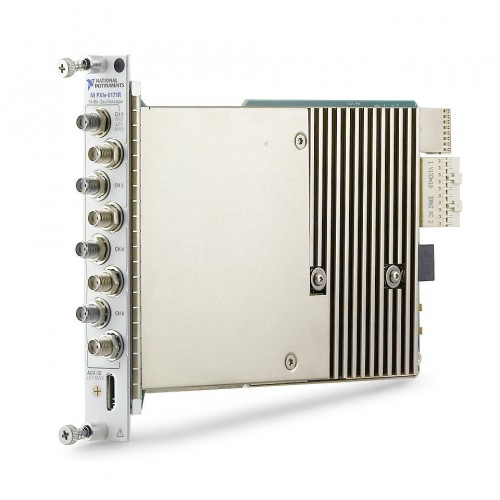

1 image: Click to enlarge
NI (National Instruments) · PXI

PXIe-5171

The NI PXIe-5171 is an 8-channel PXI Express oscilloscope with 14-bit resolution, 250 MS/s maximum sample rate, 250 MHz maximum bandwidth and a programmable Kintex-7 410T FPGA.

ManufacturerNI (National Instruments)
ModelPXIe-5171
Part Number783692-01
Product TypePXIe, 250 MHz, 8-Channel, 14-Bit, Kintex-7 410T FPGA Reconfigurable PXI Oscilloscope
● Available to Order
Condition: confirmed per unit

Request current pricing and lead time for this model. Our team will confirm the exact equipment configuration and condition.

Fast RFQ

Quote: PXIe-5171

We will reply by email.
Free Shippingfull policy linked
30-Day Warrantystandard coverage
30-Day Returnspolicy applies
Technical Supportmodel & compatibility help
Bus ConnectionPXI Express
Analog Input Impedance50 Ohm
Oscilloscope Maximum Bandwidth250 MHz
Voltage Input Channels8
Maximum Sample Rate250 MS/s
Analog Input Voltage Range-2.5 V to 2.5 V
SOHO Assistant
Ask about this exact model, a replacement, accessory, driver, rental or repair question.
Ask about specifications, compatibility, availability, rental or repair.
Ask SOHO Assistant
Overview

Product overview

Key product information and technical features.

The PXIe-5171 combines eight simultaneously sampled voltage inputs with a PXI Express interface. Its analog inputs provide AC/DC coupling, 50 Ω impedance and a voltage range of -2.5 V to 2.5 V.

The module includes 1.5 GB of onboard memory and a programmable Kintex-7 410T FPGA. Its reconfigurable architecture supports custom acquisition, triggering, signal processing and data streaming, including peer-to-peer streaming.

  • Eight voltage input channels with simultaneous sampling.
  • 250 MHz maximum analog bandwidth and 250 MS/s maximum sample rate.
  • 14-bit analog input resolution with a -2.5 V to 2.5 V input voltage range.
  • 1.5 GB of onboard oscilloscope memory.
  • Programmable Kintex-7 410T FPGA for custom acquisition, triggering, signal processing and streaming.
  • AC/DC input coupling and 50 Ω input impedance.
  • Support for peer-to-peer streaming.
Verified specifications

Technical data

Verified product specifications.

Bus ConnectionPXI Express
Analog Input Impedance50 Ohm
Oscilloscope Maximum Bandwidth250 MHz
Number of Voltage Input Channels8
Maximum Sample Rate250 MS/s
Analog Input Voltage Range-2.5 V to 2.5 V
Oscilloscope Onboard Memory Size1.5 GB
Analog Input Resolution14 bits
FPGAKintex-7 410T
CableSense™No
Supported Hardware PlatformPXI
ReconfigurableYes
Supports Peer To Peer StreamingYes
Analog Input CouplingAC/DC
EnclosedYes
Onboard Digital DownconverterNo
NI part numbers783692-01
