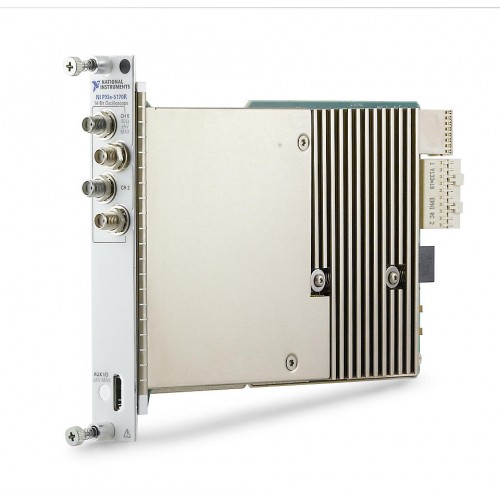

NI (National Instruments) PXIe-5170 PXIe, 100 MHz, 4- or 8-Channel, 14-Bit, Kintex-7 325T FPGA Reconfigurable PXI Oscilloscope
1 image: Click to enlarge
NI (National Instruments) · PXI

PXIe-5170

The NI PXIe-5170 is a PXI Express oscilloscope with 100 MHz bandwidth, 14-bit resolution, a maximum sample rate of 250 MS/s, and a reconfigurable Kintex-7 325T FPGA. The model is offered in 4- and 8-channel versions.

ManufacturerNI (National Instruments)
ModelPXIe-5170
Part Number783690-01 · 783691-01
Product TypePXIe, 100 MHz, 4- or 8-Channel, 14-Bit, Kintex-7 325T FPGA Reconfigurable PXI Oscilloscope
● Available to Order
Condition: confirmed per unit

Request current pricing and lead time for this model. Our team will confirm the exact equipment configuration and condition.

Fast RFQ

Quote: PXIe-5170

We will reply by email.
Free Shippingfull policy linked
30-Day Warrantystandard coverage
30-Day Returnspolicy applies
Technical Supportmodel & compatibility help
Bus ConnectionPXI Express
Analog Input Impedance50 Ohm
Oscilloscope Maximum Bandwidth100 MHz
Maximum Sample Rate250 MS/s
Analog Input Voltage Range-2.5 V to 2.5 V
Analog Input Resolution14 bits
SOHO Assistant
Ask about this exact model, a replacement, accessory, driver, rental or repair question.
Ask about specifications, compatibility, availability, rental or repair.
Ask SOHO Assistant
Overview

Product overview

Key product information and technical features.

The PXIe-5170 is a modular oscilloscope for the PXI platform using a PXI Express bus connection. Its 4- and 8-channel versions provide simultaneously sampled inputs with 100 MHz maximum bandwidth, 250 MS/s maximum sampling, and 14-bit resolution. The analog inputs have 50 Ω impedance and AC/DC coupling.

A reconfigurable Kintex-7 325T FPGA supports programmable acquisition, triggering, signal processing, and data streaming. Peer-to-peer streaming is also supported. Select the channel-count variant and confirm chassis, controller, and software requirements before system integration.

  • PXI Express interface for integration into the PXI platform.
  • 100 MHz maximum bandwidth and 250 MS/s maximum sample rate.
  • 14-bit analog input resolution with a -2.5 V to 2.5 V input voltage range.
  • 4- or 8-channel versions with simultaneously sampled inputs.
  • Reconfigurable Kintex-7 325T FPGA for programmable acquisition, triggering, signal processing, and streaming.
  • 50 Ω analog inputs with AC/DC coupling.
  • Peer-to-peer streaming support.
Verified specifications

Technical data

Verified product specifications.

Bus ConnectionPXI Express
Analog Input Impedance50 Ohm
Oscilloscope Maximum Bandwidth100 MHz
Maximum Sample Rate250 MS/s
Analog Input Voltage Range-2.5 V to 2.5 V
Analog Input Resolution14 bits
FPGAKintex-7 325T
CableSense™No
Supported Hardware PlatformPXI
ReconfigurableYes
Supports Peer To Peer StreamingYes
Analog Input CouplingAC/DC
EnclosedYes
Onboard Digital DownconverterNo
NI part numbers783690-01, 783691-01
Condition & included items

What the actual unit includes

Confirm condition, included accessories and revision before ordering.

Condition

Confirmed per unit.

Included

Device / accessories confirmed in quote.

Revision

Exact revision confirmed when relevant.

Compatibility

Complete the measurement chain

Review system components and compatibility requirements.

NI

Manufacturer

PXI

Supported Hardware Platform

PXIe-5170

This product

Platform shown as listed by NI. Confirm controller, chassis and software fit for your system with NI before integration.
Manuals & software

Technical resources

Manuals, software and technical resources for this model.

Letter Of Volatility (NI)Letter Of Volatility · ni.com
Open →
Specifications (NI)Specifications · ni.com
Open →
Dimensional Drawings (NI)Dimensional Drawings · ni.com
Open →
Product Page (NI)Product Page · ni.com
Open →
Shipping, warranty & returns

Commercial terms

Review shipping, warranty and return terms before ordering.

Shipping
Free Shipping. Full policy terms apply.
Warranty
30-Day Warranty. Standard coverage applies.
Returns
30-Day Returns. Return policy applies.
Price / Availability
Contact SOHO ProLab for current quote and availability.
Lifecycle services

Source, rent or repair the exact model

Choose pricing, rental or repair for this exact model.

Get Price

Current price, availability and exact unit details.

Rent This Model

Request the exact model or a suitable alternative.

Repair This Model

Send the model and failure symptoms for review.

Explore equipment

Electronic Test and Instrumentation

Shipping, warranty and returns

FAQ

Product-specific questions

Product-specific answers based on available technical information.

What are its bandwidth, sample rate, and resolution?

The PXIe-5170 has 100 MHz maximum bandwidth, a maximum sample rate of 250 MS/s, and 14-bit analog input resolution.

What are the analog input characteristics?

The analog inputs have 50 Ω impedance, a -2.5 V to 2.5 V voltage range, and AC/DC coupling.

Does the PXIe-5170 support FPGA reconfiguration and peer-to-peer streaming?

Yes. It has a reconfigurable Kintex-7 325T FPGA and supports peer-to-peer streaming. The FPGA supports programmable acquisition, triggering, signal processing, and data streaming.
