PXIe-5162

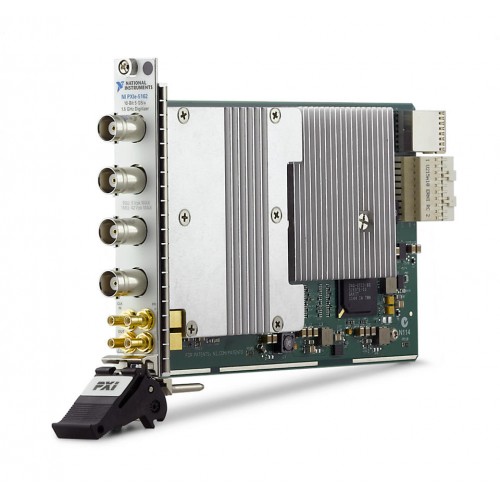

The NI PXIe-5162 is a PXI Express oscilloscope with 1.5 GHz maximum bandwidth, up to 5 GS/s sampling and 10-bit analog input resolution. Model configurations include two- and four-channel versions; confirm the installed configuration by part number.

ManufacturerNI (National Instruments)

ModelPXIe-5162

Part Number782622-05 · 782622-06

Product TypePXIe, 1.5 GHz, 5 GS/s, 10-Bit PXI Oscilloscope

● Available to Order

Condition: confirmed per unit

Request current pricing and lead time for this model. Our team will confirm the exact equipment configuration and condition.

Fast RFQ

Quote: PXIe-5162

Free Shippingfull policy linked

30-Day Warrantystandard coverage

30-Day Returnspolicy applies

Technical Supportmodel & compatibility help

Bus ConnectionPXI Express

Analog Input Impedance50 Ohm, 1 MOhm

Oscilloscope Maximum Bandwidth1.5 GHz

Maximum Sample Rate5 GS/s

Analog Input Voltage Range-25 V to 25 V

Analog Input Resolution10 bits
