NI (National Instruments) PXIe-4481 24-Bit, 6-Channel, 1.25 MS/s PXI Analog Input Module

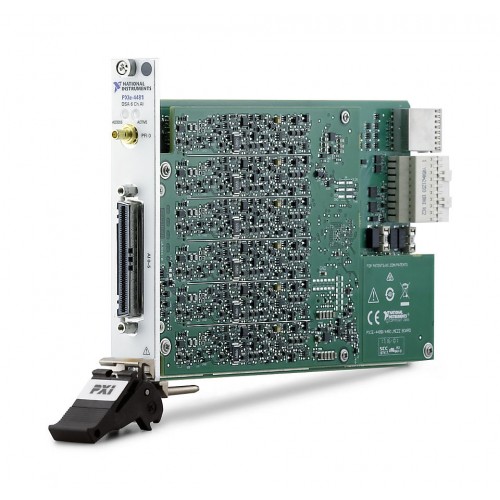

1 image: Click to enlarge

NI (National Instruments) · PXI Express

PXIe-4481

Name: PXIe-4481
Brand: NI (National Instruments)

The NI PXIe-4481 is a six-channel, 24-bit PXI Express analog input module for voltage measurement. It supports simultaneous sampling, selectable input ranges, and anti-alias and low-latency filtering.

ManufacturerNI (National Instruments)

ModelPXIe-4481

Part Number784278-01

Product Type24-Bit, 6-Channel, 1.25 MS/s PXI Analog Input Module

● Available to Order

Condition: confirmed per unit

Request current pricing and lead time for this model. Our team will confirm the exact equipment configuration and condition.

Fast RFQ

Quote: PXIe-4481

Free Shippingfull policy linked

30-Day Warrantystandard coverage

30-Day Returnspolicy applies

Technical Supportmodel & compatibility help

Maximum Sample Rate20 MS/s

Analog Input Voltage Range-10 V to 10 V -5 V to 5 V -1 V to 1 V -0.5 V to 0.5 V

Max Differential Analog Input Channels6

Analog Input Resolution24 bits

FilteringAnti-Alias, Low-Latency

Bus ConnectionPXI Express

SOHO Assistant

Ask about this exact model, a replacement, accessory, driver, rental or repair question.

Ask about specifications, compatibility, availability, rental or repair.

Ask SOHO Assistant

Overview

Product overview

Key product information and technical features.

The PXIe-4481 provides six simultaneously sampled differential analog inputs in a PXI Express module. Its voltage-measurement architecture combines 24-bit resolution with four selectable input ranges.

Anti-alias and low-latency filtering support signal acquisition within a PXI Express measurement system. NI provides model-specific specifications and dimensional drawings for integration planning.

Six differential analog input channels with simultaneous sampling.
24-bit analog input resolution.
Selectable bipolar voltage ranges of ±10 V, ±5 V, ±1 V, and ±0.5 V.
Anti-alias and low-latency filtering.
PXI Express bus connection.

Verified specifications

Technical data

Verified product specifications.

Maximum Sample Rate	20 MS/s
Analog Input Voltage Range	-10 V to 10 V -5 V to 5 V -1 V to 1 V -0.5 V to 0.5 V
Maximum Number of Differential Analog Input Channels	6
Analog Input Resolution	24 bits
Filtering	Anti-Alias, Low-Latency
Bus Connection	PXI Express
Simultaneous Sampling	Yes
Front Connection Type	InfiniBand (IB), SMB
Operating Temperature Range	0 °C to 55 °C
NI part numbers	784278-01
