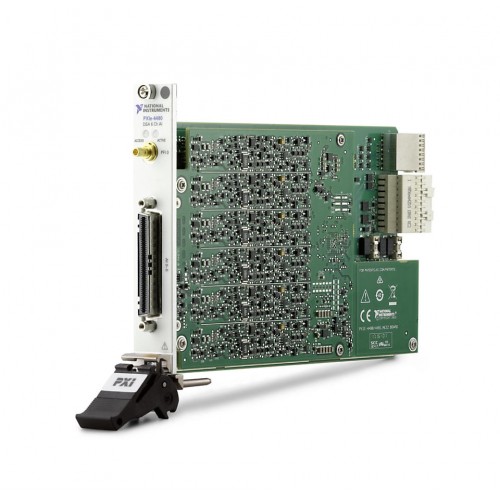

NI (National Instruments) PXIe-4480 1.25 MS/s, 3.4 Hz AC/DC-Coupled, 6-Input PXI Sound and Vibration Module
1 image: Click to enlarge
NI (National Instruments) · PXI Express

PXIe-4480

The NI PXIe-4480 is a PXI Express sound and vibration module with six differential analog inputs, simultaneous sampling, and software-configurable AC/DC coupling. It provides four input voltage ranges for dynamic signal acquisition.

ManufacturerNI (National Instruments)
ModelPXIe-4480
Part Number784277-01
Product Type1.25 MS/s, 3.4 Hz AC/DC-Coupled, 6-Input PXI Sound and Vibration Module
● Available to Order
Condition: confirmed per unit

Request current pricing and lead time for this model. Our team will confirm the exact equipment configuration and condition.

Fast RFQ

Quote: PXIe-4480

We will reply by email.
Free Shippingfull policy linked
30-Day Warrantystandard coverage
30-Day Returnspolicy applies
Technical Supportmodel & compatibility help
Max Differential Analog Input Channels6
Bus ConnectionPXI Express
Analog Input CouplingAC/DC
Number of Gain Settings4
Highpass Filter Cut-Off Frequency0.5 Hz
Front Connection TypeInfiniBand (IB), SMB
SOHO Assistant
Ask about this exact model, a replacement, accessory, driver, rental or repair question.
Ask about specifications, compatibility, availability, rental or repair.
Ask SOHO Assistant
Overview

Product overview

Key product information and technical features.

The PXIe-4480 is designed for high-bandwidth audio, acoustic, and vibration measurements. Its six differential analog inputs acquire signals simultaneously, while four gain settings allow the input range to be selected for the measurement.

The module supports voltage measurement, IEPE excitation, and software-configurable AC/DC coupling. Listed sensor types include IEPE sensors, accelerometers, charge sensors, and microphones. Consult the specifications and getting-started guide when selecting sensor connections and configuring acquisition timing.

  • Six differential analog input channels with simultaneous sampling.
  • Four input voltage ranges: ±0.5 V, ±1 V, ±5 V, and ±10 V.
  • Software-configurable AC/DC input coupling.
  • Listed DSA dynamic range of 115 dB.
  • IEPE excitation with support for accelerometer, charge, and microphone sensor types.
Verified specifications

Technical data

Verified product specifications.

Maximum Number of Differential Analog Input Channels6
Bus ConnectionPXI Express
Analog Input CouplingAC/DC
Number of Gain Settings4
Highpass Filter Cut-Off Frequency0.5 Hz
Front Connection TypeInfiniBand (IB), SMB
Maximum Sample Rate1.25 MS/s
DSA Dynamic Range115 dB
Number of Analog Input Channels6
Analog Input Voltage Range-0.5 V to 0.5 V -1 V to 1 V -5 V to 5 V -10 V to 10 V
Simultaneous SamplingYes
Operating Temperature Range0 °C to 55 °C
Analog Input IsolationNone
Electrical Signal MeasuredVoltage
IEPE Excitation20 mA
Supported Sensor TypeIEPE, Accelerometer, Charge, Microphone
NI part numbers784277-01
Condition & included items

What the actual unit includes

Confirm condition, included accessories and revision before ordering.

Condition

Confirmed per unit.

Included

Device / accessories confirmed in quote.

Revision

Exact revision confirmed when relevant.

Compatibility

Complete the measurement chain

Review system components and compatibility requirements.

NI

Manufacturer

PXI Express

Bus Connection

PXIe-4480

This product

Platform shown as listed by NI. Confirm controller, chassis and software fit for your system with NI before integration.
Manuals & software

Technical resources

Manuals, software and technical resources for this model.

Getting Started (NI)Getting Started · ni.com
Open →
Letter Of Volatility (NI)Letter Of Volatility · ni.com
Open →
Specifications (NI)Specifications · ni.com
Open →
Dimensional Drawings (NI)Dimensional Drawings · ni.com
Open →
Product Page (NI)Product Page · ni.com
Open →
Shipping, warranty & returns

Commercial terms

Review shipping, warranty and return terms before ordering.

Shipping
Free Shipping. Full policy terms apply.
Warranty
30-Day Warranty. Standard coverage applies.
Returns
30-Day Returns. Return policy applies.
Price / Availability
Contact SOHO ProLab for current quote and availability.
Lifecycle services

Source, rent or repair the exact model

Choose pricing, rental or repair for this exact model.

Get Price

Current price, availability and exact unit details.

Rent This Model

Request the exact model or a suitable alternative.

Repair This Model

Send the model and failure symptoms for review.

FAQ

Product-specific questions

Product-specific answers based on available technical information.

What is the NI part number for the PXIe-4480?

The retained verified catalog data lists NI part number 784277-01.

How many input channels does the PXIe-4480 provide?

It provides six differential analog input channels with simultaneous sampling.

Which sensor types are supported?

Listed sensor types include IEPE sensors, accelerometers, charge sensors, and microphones. Check the NI documentation for excitation and connection requirements for the specific sensor.
