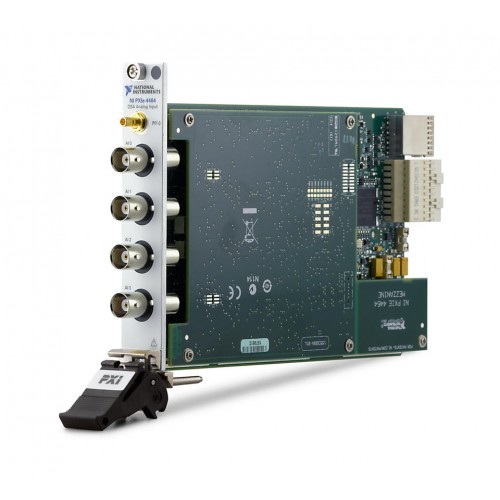

NI (National Instruments) PXIe-4464 204.8 kS/s, 119 dB, 6 Gains, AC/DC-Coupled, 4-Input PXI Sound and Vibration Module
1 image: Click to enlarge
NI (National Instruments) · PXI Express

PXIe-4464

The NI PXIe-4464 is a four-input PXI Express sound and vibration module with simultaneous sampling at up to 204.8 kS/s. It provides AC/DC coupling, six gain settings and 119 dB dynamic range.

ManufacturerNI (National Instruments)
ModelPXIe-4464
Part Number783087-01 · 783087-02
Product Type204.8 kS/s, 119 dB, 6 Gains, AC/DC-Coupled, 4-Input PXI Sound and Vibration Module
● Available to Order
Condition: confirmed per unit

Request current pricing and lead time for this model. Our team will confirm the exact equipment configuration and condition.

Fast RFQ

Quote: PXIe-4464

We will reply by email.
Free Shippingfull policy linked
30-Day Warrantystandard coverage
30-Day Returnspolicy applies
Technical Supportmodel & compatibility help
Max Differential Analog Input Channels4
Bus ConnectionPXI Express
Analog Input CouplingAC/DC
Number of Gain Settings6
Highpass Filter Cut-Off Frequency0.72 Hz
Maximum Sample Rate204.8 kS/s
SOHO Assistant
Ask about this exact model, a replacement, accessory, driver, rental or repair question.
Ask about specifications, compatibility, availability, rental or repair.
Ask SOHO Assistant
Overview

Product overview

Key product information and technical features.

The PXIe-4464 provides four differential analog input channels for sound and vibration measurement systems built on PXI Express. Simultaneous sampling captures the inputs together, while AC/DC coupling and six gain settings accommodate different measurement signals.

The module measures voltage and supports IEPE sensors, accelerometers and microphones. Its input ranges extend from ±0.316 V to ±42.4 V. Built-in antialiasing filters automatically adjust to the sampling rate, and TEDS smart sensor support assists sensor-based measurement setups.

  • Four differential analog input channels with simultaneous sampling.
  • Maximum sample rate of 204.8 kS/s and 119 dB dynamic range.
  • AC/DC input coupling and six software-selectable gain settings.
  • Built-in antialiasing filters that automatically adjust to the sampling rate.
  • IEPE excitation and support for accelerometers, microphones and TEDS smart sensors.
Verified specifications

Technical data

Verified product specifications.

Maximum Number of Differential Analog Input Channels4
Bus ConnectionPXI Express
Analog Input CouplingAC/DC
Number of Gain Settings6
Highpass Filter Cut-Off Frequency0.72 Hz
Maximum Sample Rate204.8 kS/s
DSA Dynamic Range119 dB
Number of Analog Input Channels4
Analog Input Voltage Range-0.316 V to 0.316 V, -1 V to 1 V, -3.16 V to 3.16 V, -10 V to 10 V
Analog Input Voltage Range (cont. 2)-31.6 V to 31.6 V, -42.4 V to 42.4 V
Simultaneous SamplingYes
Operating Temperature Range0 °C to 55 °C
Analog Input IsolationNone
Electrical Signal MeasuredVoltage
IEPE Excitation20 mA
Supported Sensor TypeIEPE, Accelerometer, Microphone
NI part numbers783087-01, 783087-02
Condition & included items

What the actual unit includes

Confirm condition, included accessories and revision before ordering.

Condition

Confirmed per unit.

Included

Device / accessories confirmed in quote.

Revision

Exact revision confirmed when relevant.

Compatibility

Complete the measurement chain

Review system components and compatibility requirements.

NI

Manufacturer

PXI Express

Bus Connection

PXIe-4464

This product

Platform shown as listed by NI. Confirm controller, chassis and software fit for your system with NI before integration.
Manuals & software

Technical resources

Manuals, software and technical resources for this model.

Letter Of Volatility (NI)Letter Of Volatility · ni.com
Open →
Specifications (NI)Specifications · ni.com
Open →
User Manual (NI)User Manual · ni.com
Open →
Dimensional Drawings (NI)Dimensional Drawings · ni.com
Open →
Product Page (NI)Product Page · ni.com
Open →
Shipping, warranty & returns

Commercial terms

Review shipping, warranty and return terms before ordering.

Shipping
Free Shipping. Full policy terms apply.
Warranty
30-Day Warranty. Standard coverage applies.
Returns
30-Day Returns. Return policy applies.
Price / Availability
Contact SOHO ProLab for current quote and availability.
Lifecycle services

Source, rent or repair the exact model

Choose pricing, rental or repair for this exact model.

Get Price

Current price, availability and exact unit details.

Rent This Model

Request the exact model or a suitable alternative.

Repair This Model

Send the model and failure symptoms for review.

FAQ

Product-specific questions

Product-specific answers based on available technical information.

How many input channels does the PXIe-4464 provide?

The module provides four differential analog input channels with simultaneous sampling.

What are the maximum sample rate and dynamic range?

The listed maximum sample rate is 204.8 kS/s, and the listed dynamic range is 119 dB. Consult the NI specifications for measurement conditions.

Which sensors does the PXIe-4464 support?

Supported sensor types include IEPE sensors, accelerometers and microphones. The module also supports TEDS smart sensors.

What NI part numbers are listed for this model?

The catalog lists NI part numbers 783087-01 and 783087-02 for the PXIe-4464. Confirm the required configuration before selecting a part number.
