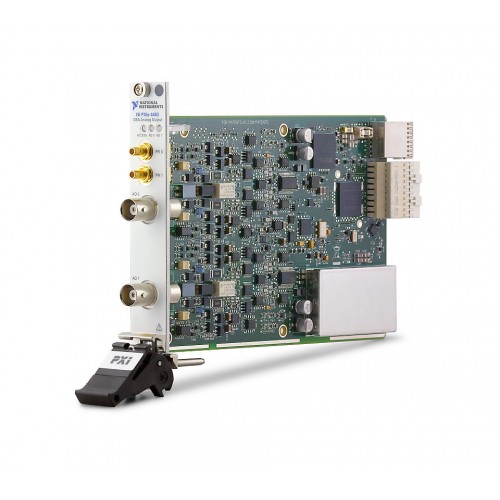

NI (National Instruments) PXIe-4463 51.2 kS/s, 2-Output PXI Sound and Vibration Module
1 image: Click to enlarge
NI (National Instruments) · PXI Express

PXIe-4463

The NI PXIe-4463 is a PXI Express sound and vibration module with two 24-bit analog output channels, a maximum update rate of 51.2 kS/s, and 116 dB DSA dynamic range.

ManufacturerNI (National Instruments)
ModelPXIe-4463
Part Number783086-02 · 783086-01
Product Type51.2 kS/s, 2-Output PXI Sound and Vibration Module
● Available to Order
Condition: confirmed per unit

Request current pricing and lead time for this model. Our team will confirm the exact equipment configuration and condition.

Fast RFQ

Quote: PXIe-4463

We will reply by email.
Free Shippingfull policy linked
30-Day Warrantystandard coverage
30-Day Returnspolicy applies
Technical Supportmodel & compatibility help
Analog Output Channels2
Bus ConnectionPXI Express
Number of Gain Settings3
Highpass Filter Cut-Off Frequency3.4 Hz
Maximum Sample Rate51.2 kS/s
DSA Dynamic Range116 dB
SOHO Assistant
Ask about this exact model, a replacement, accessory, driver, rental or repair question.
Ask about specifications, compatibility, availability, rental or repair.
Ask SOHO Assistant
Overview

Product overview

Key product information and technical features.

The PXIe-4463 provides two 24-bit digital-to-analog converters for fully differential simultaneous signal generation. Its three gain settings and programmable per-channel output configurations support adjustment of the output signal.

The module connects through PXI Express and provides an analog output voltage range of -10 V to 10 V. Two timing engines support multisample-rate operation and independent channel start and stop on a single module.

  • Two analog output channels with a maximum analog update rate of 51.2 kS/s.
  • 24-bit digital-to-analog conversion for fully differential simultaneous generation.
  • Three gain settings with programmable per-channel output configurations.
  • 116 dB DSA dynamic range.
  • Two timing engines support multisample-rate operation and independent channel start and stop.
  • Operating temperature range of 0 °C to 55 °C.
Verified specifications

Technical data

Verified product specifications.

Number of Analog Output Channels2
Bus ConnectionPXI Express
Number of Gain Settings3
Highpass Filter Cut-Off Frequency3.4 Hz
Maximum Sample Rate51.2 kS/s
DSA Dynamic Range116 dB
Maximum Analog Update Rate51.2 kS/s
Analog Output Voltage Range-10 V to 10 V
Simultaneous SamplingYes
Operating Temperature Range0 °C to 55 °C
Analog Input IsolationNone
NI part numbers783086-02, 783086-01
Condition & included items

What the actual unit includes

Confirm condition, included accessories and revision before ordering.

Condition

Confirmed per unit.

Included

Device / accessories confirmed in quote.

Revision

Exact revision confirmed when relevant.

Compatibility

Complete the measurement chain

Review system components and compatibility requirements.

NI

Manufacturer

PXI Express

Bus Connection

PXIe-4463

This product

Platform shown as listed by NI. Confirm controller, chassis and software fit for your system with NI before integration.
Manuals & software

Technical resources

Manuals, software and technical resources for this model.

Getting Started (NI)Getting Started · ni.com
Open →
Letter Of Volatility (NI)Letter Of Volatility · ni.com
Open →
Specifications (NI)Specifications · ni.com
Open →
User Manual (NI)User Manual · ni.com
Open →
Dimensional Drawings (NI)Dimensional Drawings · ni.com
Open →
Product Page (NI)Product Page · ni.com
Open →
Shipping, warranty & returns

Commercial terms

Review shipping, warranty and return terms before ordering.

Shipping
Free Shipping. Full policy terms apply.
Warranty
30-Day Warranty. Standard coverage applies.
Returns
30-Day Returns. Return policy applies.
Price / Availability
Contact SOHO ProLab for current quote and availability.
Lifecycle services

Source, rent or repair the exact model

Choose pricing, rental or repair for this exact model.

Get Price

Current price, availability and exact unit details.

Rent This Model

Request the exact model or a suitable alternative.

Repair This Model

Send the model and failure symptoms for review.

FAQ

Product-specific questions

Product-specific answers based on available technical information.

Does the PXIe-4463 provide analog inputs or outputs?

The PXIe-4463 provides two analog output channels and has no analog input channels.

What is the maximum analog update rate?

The maximum analog update rate is 51.2 kS/s.

What analog output voltage range is specified?

The specified analog output voltage range is -10 V to 10 V, with three gain settings.

Can the channels operate with independent timing?

Two timing engines support multisample-rate operation and independent channel start and stop on a single module.
