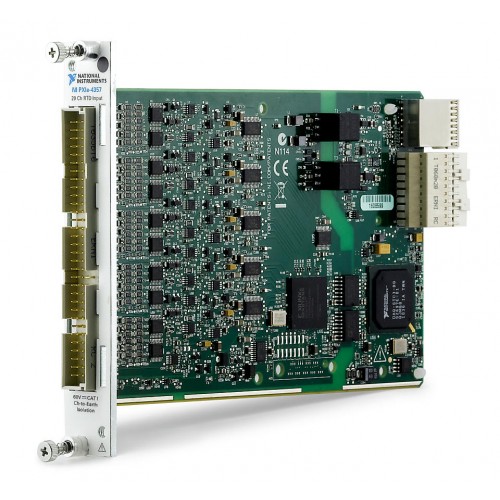

NI (National Instruments) PXIe-4357 20-Channel, 24-Bit PXI Temperature Input Module
1 image: Click to enlarge
NI (National Instruments) · PXI Express

PXIe-4357

The NI PXIe-4357 is a 20-channel, 24-bit temperature input module for PXI Express systems. It integrates data acquisition and signal conditioning for 2-, 3-, and 4-wire RTD measurements.

ManufacturerNI (National Instruments)
ModelPXIe-4357
Part Number782118-01
Product Type20-Channel, 24-Bit PXI Temperature Input Module
● Available to Order
Condition: confirmed per unit

Request current pricing and lead time for this model. Our team will confirm the exact equipment configuration and condition.

Fast RFQ

Quote: PXIe-4357

We will reply by email.
Free Shippingfull policy linked
30-Day Warrantystandard coverage
30-Day Returnspolicy applies
Technical Supportmodel & compatibility help
Max Differential Analog Input Channels20
Supported Sensor TypeRTD
Analog Input Isolation60 V Ch-Earth Ground Isolation
Maximum Sample Rate90 S/s
Analog Input Channels20
Simultaneous SamplingNo
SOHO Assistant
Ask about this exact model, a replacement, accessory, driver, rental or repair question.
Ask about specifications, compatibility, availability, rental or repair.
Ask SOHO Assistant
Overview

Product overview

Key product information and technical features.

The PXIe-4357 combines data acquisition and signal conditioning for resistance temperature detector measurements. It supports 2-, 3-, and 4-wire RTDs, per-channel software-programmable configurations, and automatic scaling of measured data into engineering units.

The module provides 20 differential analog input channels with high-speed and high-resolution operating modes. It uses a PXI Express bus connection and a DIN front connection; sampling is not simultaneous.

  • 20 differential analog input channels for RTD measurements.
  • 24-bit temperature input with integrated data acquisition and signal conditioning.
  • Supports 2-, 3-, and 4-wire RTD configurations.
  • Per-channel software-programmable configuration and automatic engineering-unit scaling.
  • High-speed and high-resolution measurement modes.
  • 60 V channel-to-earth-ground isolation.
Verified specifications

Technical data

Verified product specifications.

Maximum Number of Differential Analog Input Channels20
Supported Sensor TypeRTD
Analog Input Isolation60 V Ch-Earth Ground Isolation
Maximum Sample Rate90 S/s
Number of Analog Input Channels20
Simultaneous SamplingNo
Operating Temperature Range0 °C to 55 °C
Bus ConnectionPXI Express
Front Connection TypeDIN
NI part numbers782118-01
Condition & included items

What the actual unit includes

Confirm condition, included accessories and revision before ordering.

Condition

Confirmed per unit.

Included

Device / accessories confirmed in quote.

Revision

Exact revision confirmed when relevant.

Compatibility

Complete the measurement chain

Review system components and compatibility requirements.

NI

Manufacturer

PXI Express

Bus Connection

PXIe-4357

This product

Platform shown as listed by NI. Confirm controller, chassis and software fit for your system with NI before integration.
Manuals & software

Technical resources

Manuals, software and technical resources for this model.

Getting Started (NI)Getting Started · ni.com
Open →
Letter Of Volatility (NI)Letter Of Volatility · ni.com
Open →
Specifications (NI)Specifications · ni.com
Open →
Dimensional Drawings (NI)Dimensional Drawings · ni.com
Open →
Product Page (NI)Product Page · ni.com
Open →
Shipping, warranty & returns

Commercial terms

Review shipping, warranty and return terms before ordering.

Shipping
Free Shipping. Full policy terms apply.
Warranty
30-Day Warranty. Standard coverage applies.
Returns
30-Day Returns. Return policy applies.
Price / Availability
Contact SOHO ProLab for current quote and availability.
Lifecycle services

Source, rent or repair the exact model

Choose pricing, rental or repair for this exact model.

Get Price

Current price, availability and exact unit details.

Rent This Model

Request the exact model or a suitable alternative.

Repair This Model

Send the model and failure symptoms for review.

FAQ

Product-specific questions

Product-specific answers based on available technical information.

What sensors does the PXIe-4357 support?

The PXIe-4357 supports resistance temperature detectors (RTDs) in 2-, 3-, or 4-wire configurations.

How many input channels does the PXIe-4357 have?

It has 20 differential analog input channels.

Does the PXIe-4357 sample all channels simultaneously?

No. The PXIe-4357 does not support simultaneous sampling. Its listed maximum sample rate is 90 S/s; consult the specifications for measurement-mode and timing details.

What interfaces does the PXIe-4357 use?

It uses a PXI Express bus connection and a DIN front connection. Confirm the required chassis and sensor connection hardware before integration.
