PXIe-4353
PXIe-4353 additional viewPXIe-4353 additional viewPXIe-4353 additional viewPXIe-4353 additional viewPXIe-4353 additional view
9 images: additional views below.Click to enlarge
NI (National Instruments) · PXI Express

PXIe-4353

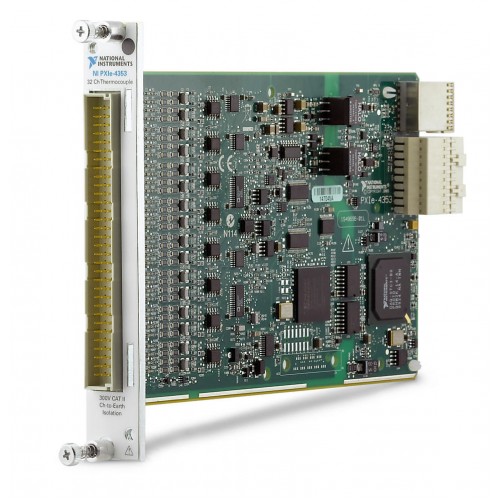

The NI PXIe-4353, part number 781348-01, is a 32-channel, 24-bit temperature input module for thermocouple measurements in PXI Express systems.

ManufacturerNI (National Instruments)
ModelPXIe-4353
Part Number781348-01
Product Type32-Channel, 24-Bit PXI Temperature Input Module
● Available to Order
Condition: confirmed per unit

Request current pricing and lead time for this model. Our team will confirm the exact equipment configuration and condition.

Fast RFQ

Quote: PXIe-4353

We will reply by email.
Free Shippingfull policy linked
30-Day Warrantystandard coverage
30-Day Returnspolicy applies
Technical Supportmodel & compatibility help
Max Differential Analog Input Channels32
Supported Sensor TypeThermocouple
Analog Input Isolation300 V Bank Isolation
Analog Input Channels32
Analog Input Voltage Range-80 mV to 80 mV
Simultaneous SamplingNo
SOHO Assistant
Ask about this exact model, a replacement, accessory, driver, rental or repair question.
Ask about specifications, compatibility, availability, rental or repair.
Ask SOHO Assistant
Overview

Product overview

Key product information and technical features.

The PXIe-4353 integrates data acquisition and signal conditioning for thermocouple temperature measurements. Its 32 differential analog input channels provide 24-bit measurement resolution in a PXI Express module.

Two auto-zero channels provide offset compensation, while open-thermocouple detection identifies disconnected thermocouples. The NI TB-4353 isothermal terminal block optimizes thermal conductivity between the thermocouple terminals and cold-junction compensation channels.

  • 32 differential analog input channels for thermocouple measurements.
  • 24-bit temperature input measurement resolution.
  • Analog input voltage range of -80 mV to 80 mV.
  • 300 V bank isolation for analog inputs.
  • Two auto-zero channels for offset compensation and open-thermocouple detection for disconnected sensors.
  • PXI Express bus connection with a DIN front connection.
Verified specifications

Technical data

Verified product specifications.

Maximum Number of Differential Analog Input Channels32
Supported Sensor TypeThermocouple
Analog Input Isolation300 V Bank Isolation
Number of Analog Input Channels32
Analog Input Voltage Range-80 mV to 80 mV
Simultaneous SamplingNo
Operating Temperature Range0 °C to 55 °C
Bus ConnectionPXI Express
Front Connection TypeDIN
NI part numbers781348-01
Condition & included items

What the actual unit includes

Confirm condition, included accessories and revision before ordering.

Condition

Confirmed per unit.

Included

Device / accessories confirmed in quote.

Revision

Exact revision confirmed when relevant.

Compatibility

Complete the measurement chain

Review system components and compatibility requirements.

NI

Manufacturer

PXI Express

Bus Connection

PXIe-4353

This product

Platform shown as listed by NI. Confirm controller, chassis and software fit for your system with NI before integration.
Manuals & software

Technical resources

Manuals, software and technical resources for this model.

Letter Of Volatility (NI)Letter Of Volatility · ni.com
Open →
Dimensional Drawings (NI)Dimensional Drawings · ni.com
Open →
Product Page (NI)Product Page · ni.com
Open →
Shipping, warranty & returns

Commercial terms

Review shipping, warranty and return terms before ordering.

Shipping
Free Shipping. Full policy terms apply.
Warranty
30-Day Warranty. Standard coverage applies.
Returns
30-Day Returns. Return policy applies.
Price / Availability
Contact SOHO ProLab for current quote and availability.
Lifecycle services

Source, rent or repair the exact model

Choose pricing, rental or repair for this exact model.

Get Price

Current price, availability and exact unit details.

Rent This Model

Request the exact model or a suitable alternative.

Repair This Model

Send the model and failure symptoms for review.

Explore equipment

Data Acquisition and Control Systems

Shipping, warranty and returns

FAQ

Product-specific questions

Product-specific answers based on available technical information.

What sensor type does the PXIe-4353 support?

The PXIe-4353 supports thermocouples and integrates signal conditioning for temperature measurements.

How many analog input channels does it have?

It has 32 analog input channels, with a maximum of 32 differential analog inputs.

What is the analog input voltage range?

The analog input voltage range is -80 mV to 80 mV.

Does the PXIe-4353 provide simultaneous sampling?

No. The PXIe-4353 does not provide simultaneous sampling.

What type of input isolation does it provide?

The module provides 300 V bank isolation for its analog inputs. This is a bank-isolation specification, not a channel-to-channel isolation rating.
