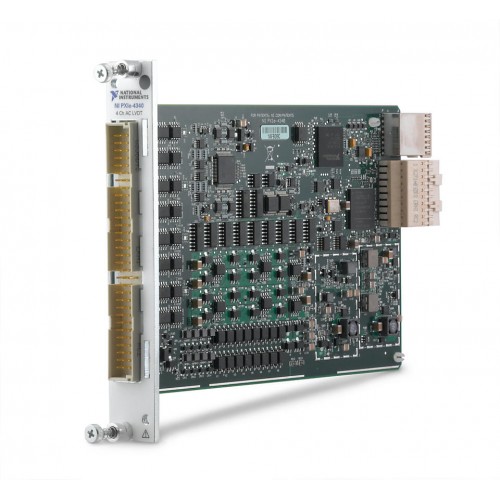

National Instruments PXIe-4340 product image 1
National Instruments PXIe-4340 product image 1 additional viewNational Instruments PXIe-4340 product image 1 additional viewNational Instruments PXIe-4340 product image 1 additional viewNational Instruments PXIe-4340 product image 1 additional view
5 images: additional views below.Click to enlarge
NI (National Instruments) · PXI

PXIe-4340

The NI PXIe-4340 is a 24-bit, 4-channel PXI Express displacement input module with a maximum sample rate of 25.6 kS/s/ch and a 7 Vrms analog input range.

ManufacturerNI (National Instruments)
ModelPXIe-4340
Part Number785068-01
Product Type24-Bit, 4-Channel, 25.6 kS/s/ch, ±7 Vrms PXI Displacement Input Module
● Available to Order
Condition: confirmed per unit

Request current pricing and lead time for this model. Our team will confirm the exact equipment configuration and condition.

Fast RFQ

Quote: PXIe-4340

We will reply by email.
Free Shippingfull policy linked
30-Day Warrantystandard coverage
30-Day Returnspolicy applies
Technical Supportmodel & compatibility help
Supported Hardware PlatformPXI
Maximum Sample Rate25.6 kS/s/ch
Analog Input Channels4
Analog Input Voltage Range7 Vrms
SOHO Assistant
Ask about this exact model, a replacement, accessory, driver, rental or repair question.
Ask about specifications, compatibility, availability, rental or repair.
Ask SOHO Assistant
Overview

Product overview

Key product information and technical features.

The PXIe-4340 is a filtered analog input module for AC LVDT, AC RVDT, resolver and synchro measurements. It supports 4-, 5- and 6-wire LVDT and RVDT measurements.

The module provides independently configurable excitation frequency and voltage for each channel. NI-DAQmx supports hardware configuration and measurement within a PXI Express acquisition system.

  • Four analog input channels with 24-bit resolution.
  • Maximum sample rate of 25.6 kS/s per channel.
  • Supports AC LVDT, AC RVDT, resolver and synchro measurements.
  • Supports 4-, 5- and 6-wire LVDT and RVDT measurements.
  • Excitation frequency and voltage can be set independently for each channel.
Verified specifications

Technical data

Verified product specifications.

Supported Hardware PlatformPXI
Maximum Sample Rate25.6 kS/s/ch
Number of Analog Input Channels4
Analog Input Voltage Range7 Vrms
Simultaneous SamplingNo
Operating Temperature Range0 °C to 55 °C
Bus ConnectionPXI Express
NI part numbers785068-01
Condition & included items

What the actual unit includes

Confirm condition, included accessories and revision before ordering.

Condition

Confirmed per unit.

Included

Device / accessories confirmed in quote.

Revision

Exact revision confirmed when relevant.

Compatibility

Complete the measurement chain

Review system components and compatibility requirements.

NI

Manufacturer

PXI

Supported Hardware Platform

PXIe-4340

This product

Platform shown as listed by NI. Confirm controller, chassis and software fit for your system with NI before integration.
Manuals & software

Technical resources

Manuals, software and technical resources for this model.

Getting Started (NI)Getting Started · ni.com
Open →
Letter Of Volatility (NI)Letter Of Volatility · ni.com
Open →
Dimensional Drawings (NI)Dimensional Drawings · ni.com
Open →
Product Page (NI)Product Page · ni.com
Open →
Shipping, warranty & returns

Commercial terms

Review shipping, warranty and return terms before ordering.

Shipping
Free Shipping. Full policy terms apply.
Warranty
30-Day Warranty. Standard coverage applies.
Returns
30-Day Returns. Return policy applies.
Price / Availability
Contact SOHO ProLab for current quote and availability.
Lifecycle services

Source, rent or repair the exact model

Choose pricing, rental or repair for this exact model.

Get Price

Current price, availability and exact unit details.

Rent This Model

Request the exact model or a suitable alternative.

Repair This Model

Send the model and failure symptoms for review.

Explore equipment

Data Acquisition and Control Systems

Shipping, warranty and returns

FAQ

Product-specific questions

Product-specific answers based on available technical information.

What measurements does the PXIe-4340 support?

It supports AC LVDT, AC RVDT, resolver and synchro measurements, including 4-, 5- and 6-wire LVDT and RVDT measurements.

How many input channels does it provide?

The PXIe-4340 provides four analog input channels with 24-bit resolution.

What is the maximum sample rate?

The maximum sample rate is 25.6 kS/s per channel.

Can excitation be configured separately for each channel?

Yes. Excitation frequency and voltage can be configured independently for each channel.

What driver supports configuration and measurement?

NI-DAQmx supports hardware configuration and measurement. Confirm the required driver version for your operating system and system configuration.
