PXIe-4331

Name: PXIe-4331
Brand: NI (National Instruments)

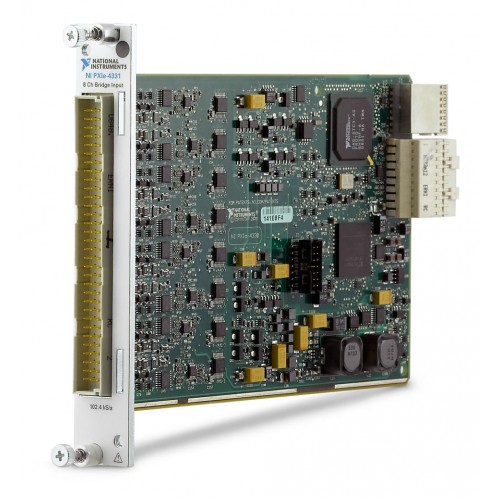

The NI PXIe-4331 is a PXI Express, 24-bit, 8-channel strain and bridge input module with a maximum sample rate of 102.4 kS/s. It supports full-, half- and quarter-bridge configurations.

ManufacturerNI (National Instruments)

ModelPXIe-4331

Part Number781345-01

Product Type102.4 kS/s, 24-Bit, 8-Channel PXI Strain/Bridge Input Module

● Available to Order

Condition: confirmed per unit

Request current pricing and lead time for this model. Our team will confirm the exact equipment configuration and condition.

Fast RFQ

Quote: PXIe-4331

Free Shippingfull policy linked

30-Day Warrantystandard coverage

30-Day Returnspolicy applies

Technical Supportmodel & compatibility help

Analog Input Voltage Range-25 mV/V to 25 mV/V -100 mV/V to 100 mV/V

Maximum Sample Rate102.4 kS/s

Max Differential Analog Input Channels8

Bridge ConfigurationsFull Bridge, Half Bridge, Quarter Bridge

Bridge Resistance120 Ohm, 1000 Ohm, 350 Ohm

Supported Hardware PlatformPXI

SOHO Assistant

Ask about this exact model, a replacement, accessory, driver, rental or repair question.

Ask about specifications, compatibility, availability, rental or repair.

Ask SOHO Assistant

Overview

Product overview

Key product information and technical features.

The PXIe-4331 integrates data acquisition and signal conditioning for dynamic strain, load and pressure measurements. Its eight differential analog input channels provide 24-bit resolution with a maximum sample rate of 102.4 kS/s.

The module supports full-, half- and quarter-bridge configurations, with input ranges of ±25 mV/V and ±100 mV/V. Per-channel filtering and independently programmable excitation provide integrated signal conditioning for bridge measurements.

24-bit resolution with a maximum sample rate of 102.4 kS/s.
Eight differential analog input channels.
Supports full-, half- and quarter-bridge configurations with specified bridge resistance values of 120 Ω, 350 Ω and 1000 Ω.
Antialiasing and digital filters on each channel help reduce noise.
Independent, programmable excitation voltage for each channel.
PXI Express bus interface within the PXI platform.

Verified specifications

Technical data

Verified product specifications.

Analog Input Voltage Range	-25 mV/V to 25 mV/V -100 mV/V to 100 mV/V
Maximum Sample Rate	102.4 kS/s
Maximum Number of Differential Analog Input Channels	8
Bridge Configurations	Full Bridge, Half Bridge, Quarter Bridge
Bridge Resistance	120 Ohm, 1000 Ohm, 350 Ohm
Supported Hardware Platform	PXI
Bus Connection	PXI Express
NI part numbers	781345-01
