PXIe-4330

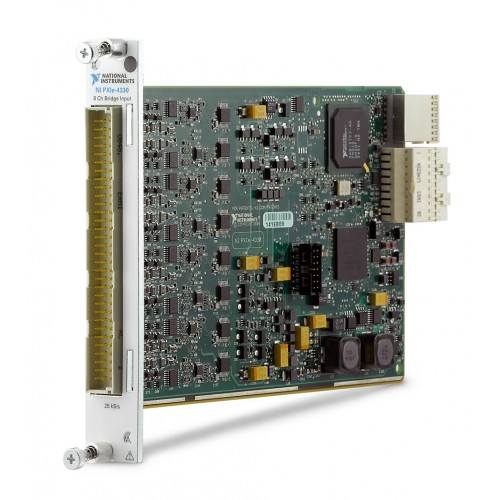

The NI PXIe-4330, part number 781346-01, is a PXI Express bridge input module with 8 differential channels, 24-bit resolution and a maximum sample rate of 25.6 kS/s. It supports full-, half- and quarter-bridge configurations.

ManufacturerNI (National Instruments)

ModelPXIe-4330

Part Number781346-01

Product Type25 kS/s, 24-Bit, 8-Channel PXI Strain/Bridge Input Module

● Available to Order

Condition: confirmed per unit

Request current pricing and lead time for this model. Our team will confirm the exact equipment configuration and condition.

Fast RFQ

Quote: PXIe-4330

Free Shippingfull policy linked

30-Day Warrantystandard coverage

30-Day Returnspolicy applies

Technical Supportmodel & compatibility help

Analog Input Voltage Range-25 mV/V to 25 mV/V -100 mV/V to 100 mV/V

Maximum Sample Rate25.6 kS/s

Max Differential Analog Input Channels8

Bridge ConfigurationsFull Bridge, Quarter Bridge, Half Bridge

Bridge Resistance120 Ohm, 1000 Ohm, 350 Ohm

Supported Hardware PlatformPXI

SOHO Assistant

Ask about this exact model, a replacement, accessory, driver, rental or repair question.

Ask about specifications, compatibility, availability, rental or repair.

Ask SOHO Assistant

Overview

Product overview

Key product information and technical features.

The PXIe-4330 is a simultaneous input module that combines data acquisition and signal conditioning for bridge-based sensors. Its eight differential analog input channels support full-, half- and quarter-bridge configurations.

Per-channel antialiasing and digital filters are provided alongside independently programmable excitation voltage for each channel. The module belongs to NI's PXI hardware platform and uses a PXI Express bus connection.

Eight differential analog input channels for bridge measurements.
24-bit resolution and a maximum sample rate of 25.6 kS/s.
Selectable bridge input ranges of ±25 mV/V and ±100 mV/V.
Support for full-, half- and quarter-bridge configurations with listed bridge resistance values of 120 Ω, 350 Ω and 1000 Ω.
Per-channel antialiasing and digital filters, with independently programmable excitation voltage.

Verified specifications

Technical data

Verified product specifications.

Analog Input Voltage Range	-25 mV/V to 25 mV/V -100 mV/V to 100 mV/V
Maximum Sample Rate	25.6 kS/s
Maximum Number of Differential Analog Input Channels	8
Bridge Configurations	Full Bridge, Quarter Bridge, Half Bridge
Bridge Resistance	120 Ohm, 1000 Ohm, 350 Ohm
Supported Hardware Platform	PXI
Bus Connection	PXI Express
