NI (National Instruments) PXIe-4322 16-Bit, 8-Channel, 250 kS/s Ch-Ch Isolated PXI Analog Output Module

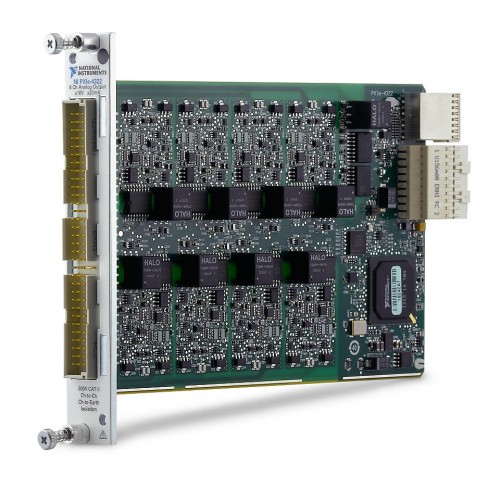

1 image: Click to enlarge
NI (National Instruments) · PXI Express

PXIe-4322

The NI PXIe-4322, part number 782878-01, is a PXI Express isolated analog output module with 8 channels, 16-bit resolution, and a maximum analog update rate of 250 kS/s. It supports voltage and current outputs with channel-to-channel isolation.

ManufacturerNI (National Instruments)
ModelPXIe-4322
Part Number782878-01
Product Type16-Bit, 8-Channel, 250 kS/s Ch-Ch Isolated PXI Analog Output Module
● Available to Order
Condition: confirmed per unit

Request current pricing and lead time for this model. Our team will confirm the exact equipment configuration and condition.

Fast RFQ

Quote: PXIe-4322

We will reply by email.
Free Shippingfull policy linked
30-Day Warrantystandard coverage
30-Day Returnspolicy applies
Technical Supportmodel & compatibility help
Analog Output Channels8
Analog Output Resolution16 bits
Maximum Analog Update Rate250 kS/s
Analog Output Voltage Range-16 V to 16 V
Bus ConnectorPXI Express
Output Current Range-20 mA to 20 mA
SOHO Assistant
Ask about this exact model, a replacement, accessory, driver, rental or repair question.
Ask about specifications, compatibility, availability, rental or repair.
Ask SOHO Assistant
Overview

Product overview

Key product information and technical features.

The PXIe-4322 provides channel-to-channel isolated analog output with integrated signal conditioning and simultaneous dynamic voltage and current outputs. It fits into the NI PXI Express platform.

Its output ranges extend from -16 V to 16 V for voltage and -20 mA to 20 mA for current. In current mode, four-quadrant operation allows the module to both sink and source current.

  • 8 analog output channels with 16-bit resolution.
  • Maximum analog update rate of 250 kS/s.
  • Voltage output range of -16 V to 16 V and current output range of -20 mA to 20 mA.
  • 300 Vrms channel-to-channel analog output isolation.
  • PXI Express bus connection with a DIN front connection.
  • Operating temperature range of 0 °C to 55 °C.
Verified specifications

Technical data

Verified product specifications.

Number of Analog Output Channels8
Analog Output Resolution16 bits
Maximum Analog Update Rate250 kS/s
Analog Output Voltage Range-16 V to 16 V
Bus ConnectorPXI Express
Output Current Range-20 mA to 20 mA
Bus ConnectionPXI Express
Number of Current Output Channels8
Analog Output Isolation300 Vrms Ch-Ch Isolation
Operating Temperature Range0 °C to 55 °C
Front Connection TypeDIN
Maximum Current Drive20 mA
NI part numbers782878-01
Condition & included items

What the actual unit includes

Confirm condition, included accessories and revision before ordering.

Condition

Confirmed per unit.

Included

Device / accessories confirmed in quote.

Revision

Exact revision confirmed when relevant.

Compatibility

Complete the measurement chain

Review system components and compatibility requirements.

NI

Manufacturer

PXI Express

Bus Connector

PXIe-4322

This product

Platform shown as listed by NI. Confirm controller, chassis and software fit for your system with NI before integration.
Manuals & software

Technical resources

Manuals, software and technical resources for this model.

Letter Of Volatility (NI)Letter Of Volatility · ni.com
Open →
Dimensional Drawings (NI)Dimensional Drawings · ni.com
Open →
Product Page (NI)Product Page · ni.com
Open →
Shipping, warranty & returns

Commercial terms

Review shipping, warranty and return terms before ordering.

Shipping
Free Shipping. Full policy terms apply.
Warranty
30-Day Warranty. Standard coverage applies.
Returns
30-Day Returns. Return policy applies.
Price / Availability
Contact SOHO ProLab for current quote and availability.
Lifecycle services

Source, rent or repair the exact model

Choose pricing, rental or repair for this exact model.

Get Price

Current price, availability and exact unit details.

Rent This Model

Request the exact model or a suitable alternative.

Repair This Model

Send the model and failure symptoms for review.

FAQ

Product-specific questions

Product-specific answers based on available technical information.

How many output channels does the PXIe-4322 provide?

The PXIe-4322 provides 8 analog output channels with 16-bit resolution.

What voltage and current output ranges are specified?

The voltage output range is -16 V to 16 V, and the current output range is -20 mA to 20 mA.

What is the maximum analog update rate?

The specified maximum analog update rate is 250 kS/s.

Can the PXIe-4322 sink and source current?

Yes. In current mode, the module operates in all four quadrants, allowing it to sink and source current.

What isolation does the PXIe-4322 provide?

The module provides 300 Vrms channel-to-channel analog output isolation.
