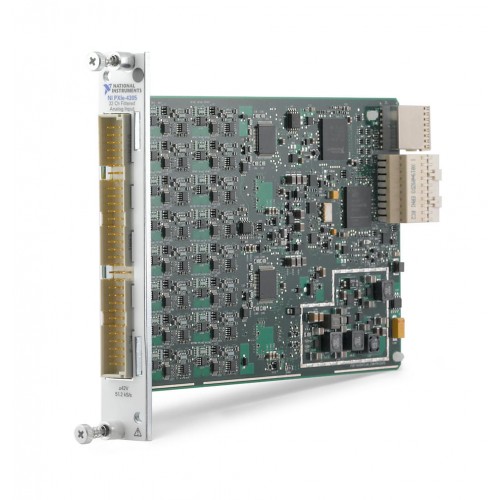

PXIe-4305

Name: PXIe-4305
Brand: NI (National Instruments)

The NI PXIe-4305 is a 24-bit, 32-channel PXI Express analog input module with a -42 V to 42 V input range and a maximum sample rate of 51.2 kS/s per channel. It supports simultaneous sampling and selectable filtering.

ManufacturerNI (National Instruments)

ModelPXIe-4305

Part Number783868-01

Product Type24-Bit, 32-Channel, 51.2 kS/s, 42 V, PXI Analog Input Module

● Available to Order

Condition: confirmed per unit

Request current pricing and lead time for this model. Our team will confirm the exact equipment configuration and condition.

Fast RFQ

Quote: PXIe-4305

Free Shippingfull policy linked

30-Day Warrantystandard coverage

30-Day Returnspolicy applies

Technical Supportmodel & compatibility help

Maximum Sample Rate51.2 kS/s/ch

Analog Input Voltage Range-42 V to 42 V

Max Differential Analog Input Channels32

Analog Input Resolution24 bits

Discrete Low-Pass Filter2 Hz, 20 Hz, 200 Hz, 1 kHz, 2 kHz

FilteringAnti-Alias

SOHO Assistant

Ask about this exact model, a replacement, accessory, driver, rental or repair question.

Ask about specifications, compatibility, availability, rental or repair.

Ask SOHO Assistant

Overview

Product overview

Key product information and technical features.

The PXIe-4305 is a filtered voltage input module for PXI Express systems. It provides 32 differential analog input channels with 24-bit resolution and simultaneous sampling through an A/D converter per channel.

Selectable digital filtering per channel and anti-alias filtering support signal conditioning during acquisition. The module supports up to four different sample rates and triggering configurations concurrently.

32 differential analog input channels with 24-bit resolution.
Simultaneous sampling at up to 51.2 kS/s per channel.
Analog input voltage range of -42 V to 42 V.
Selectable low-pass filter settings of 2 Hz, 20 Hz, 200 Hz, 1 kHz and 2 kHz, with anti-alias filtering.
Supports up to four sample rates and triggering configurations concurrently.
PXI Express bus connection and DIN front connection.

Verified specifications

Technical data

Verified product specifications.

Maximum Sample Rate	51.2 kS/s/ch
Analog Input Voltage Range	-42 V to 42 V
Maximum Number of Differential Analog Input Channels	32
Analog Input Resolution	24 bits
Discrete Low-Pass Filter	2 Hz, 20 Hz, 200 Hz, 1 kHz, 2 kHz
Filtering	Anti-Alias
Bus Connection	PXI Express
Simultaneous Sampling	Yes
Analog Input Absolute Accuracy	20 mV
Front Connection Type	DIN
Operating Temperature Range	0 °C to 55 °C
NI part numbers	783868-01
