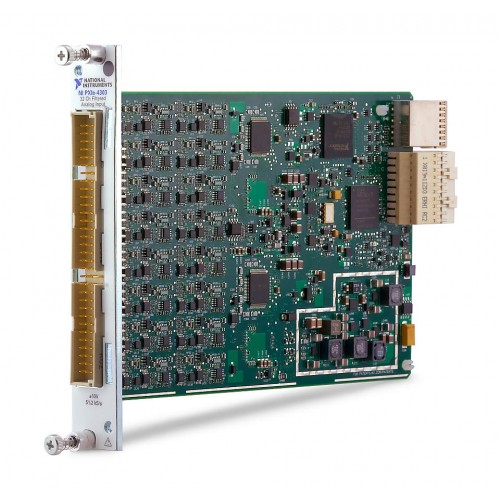

NI (National Instruments) PXIe-4303 24-Bit, 32-Channel, 51.2 kS/s, ±10 V PXI Analog Input Module
1 image: Click to enlarge
NI (National Instruments) · PXI Express

PXIe-4303

The NI PXIe-4303 is a PXI Express analog input module with 32 differential channels, 24-bit resolution, and simultaneous sampling at up to 51.2 kS/s per channel. It supports ±0.1 V and ±10 V input ranges with anti-alias filtering.

ManufacturerNI (National Instruments)
ModelPXIe-4303
Part Number783866-01
Product Type24-Bit, 32-Channel, 51.2 kS/s, ±10 V PXI Analog Input Module
● Available to Order
Condition: confirmed per unit

Request current pricing and lead time for this model. Our team will confirm the exact equipment configuration and condition.

Fast RFQ

Quote: PXIe-4303

We will reply by email.
Free Shippingfull policy linked
30-Day Warrantystandard coverage
30-Day Returnspolicy applies
Technical Supportmodel & compatibility help
Maximum Sample Rate51.2 kS/s/ch
Analog Input Voltage Range-0.1 V to 0.1 V -10 V to 10 V
Max Differential Analog Input Channels32
Analog Input Resolution24 bits
Discrete Low-Pass Filter2 Hz, 20 Hz, 200 Hz, 1 kHz, 2 kHz
FilteringAnti-Alias
SOHO Assistant
Ask about this exact model, a replacement, accessory, driver, rental or repair question.
Ask about specifications, compatibility, availability, rental or repair.
Ask SOHO Assistant
Overview

Product overview

Key product information and technical features.

The PXIe-4303 provides 32 differential analog inputs for voltage acquisition in a PXI Express system. Simultaneous sampling and an A/D converter per channel support multichannel measurements at up to 51.2 kS/s per channel.

Selectable digital filtering per channel and anti-alias filtering provide control over measurement bandwidth. The module supports concurrent operation with up to four different sample rates and triggering configurations.

  • 32 differential analog input channels with 24-bit resolution.
  • Simultaneous sampling at up to 51.2 kS/s per channel.
  • ±0.1 V and ±10 V analog input ranges.
  • Anti-alias filtering and discrete low-pass filter settings of 2 Hz, 20 Hz, 200 Hz, 1 kHz, and 2 kHz.
  • PXI Express bus interface and DIN front connection.
  • Operating temperature range of 0 °C to 55 °C.
Verified specifications

Technical data

Verified product specifications.

Maximum Sample Rate51.2 kS/s/ch
Analog Input Voltage Range-0.1 V to 0.1 V -10 V to 10 V
Maximum Number of Differential Analog Input Channels32
Analog Input Resolution24 bits
Discrete Low-Pass Filter2 Hz, 20 Hz, 200 Hz, 1 kHz, 2 kHz
FilteringAnti-Alias
Bus ConnectionPXI Express
Simultaneous SamplingYes
Analog Input Absolute Accuracy4362 μV
Front Connection TypeDIN
Operating Temperature Range0 °C to 55 °C
NI part numbers783866-01
Condition & included items

What the actual unit includes

Confirm condition, included accessories and revision before ordering.

Condition

Confirmed per unit.

Included

Device / accessories confirmed in quote.

Revision

Exact revision confirmed when relevant.

Compatibility

Complete the measurement chain

Review system components and compatibility requirements.

NI

Manufacturer

PXI Express

Bus Connection

PXIe-4303

This product

Platform shown as listed by NI. Confirm controller, chassis and software fit for your system with NI before integration.
Manuals & software

Technical resources

Manuals, software and technical resources for this model.

Letter Of Volatility (NI)Letter Of Volatility · ni.com
Open →
Specifications (NI)Specifications · ni.com
Open →
Dimensional Drawings (NI)Dimensional Drawings · ni.com
Open →
Product Page (NI)Product Page · ni.com
Open →
Shipping, warranty & returns

Commercial terms

Review shipping, warranty and return terms before ordering.

Shipping
Free Shipping. Full policy terms apply.
Warranty
30-Day Warranty. Standard coverage applies.
Returns
30-Day Returns. Return policy applies.
Price / Availability
Contact SOHO ProLab for current quote and availability.
Lifecycle services

Source, rent or repair the exact model

Choose pricing, rental or repair for this exact model.

Get Price

Current price, availability and exact unit details.

Rent This Model

Request the exact model or a suitable alternative.

Repair This Model

Send the model and failure symptoms for review.

FAQ

Product-specific questions

Product-specific answers based on available technical information.

What is the NI part number for the PXIe-4303?

The supplied verified catalog data identifies part number 783866-01.

How many channels does the PXIe-4303 provide?

It provides 32 differential analog input channels with 24-bit resolution and simultaneous sampling.

Is the maximum sample rate specified per channel?

Yes. The maximum sample rate is 51.2 kS/s per channel.

What voltage ranges and filtering options are supported?

The module supports ±0.1 V and ±10 V input ranges. It provides anti-alias filtering and discrete low-pass filter settings of 2 Hz, 20 Hz, 200 Hz, 1 kHz, and 2 kHz.
