NI (National Instruments) PXIe-4302 24-Bit, 32-Channel, 5 kS/s, ±10 V PXI Analog Input Module

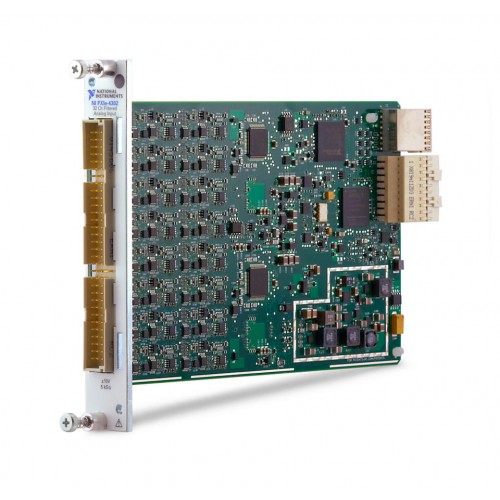

1 image: Click to enlarge
NI (National Instruments) · PXI Express

PXIe-4302

The NI PXIe-4302, part number 783865-01, is a PXI Express analog input module with 32 differential channels and 24-bit resolution. It supports simultaneous sampling at up to 5 kS/s per channel, ±0.1 V and ±10 V input ranges, and selectable filtering.

ManufacturerNI (National Instruments)
ModelPXIe-4302
Part Number783865-01
Product Type24-Bit, 32-Channel, 5 kS/s, ±10 V PXI Analog Input Module
● Available to Order
Condition: confirmed per unit

Request current pricing and lead time for this model. Our team will confirm the exact equipment configuration and condition.

Fast RFQ

Quote: PXIe-4302

We will reply by email.
Free Shippingfull policy linked
30-Day Warrantystandard coverage
30-Day Returnspolicy applies
Technical Supportmodel & compatibility help
Maximum Sample Rate5 kS/s/ch
Analog Input Voltage Range-0.1 V to 0.1 V -10 V to 10 V
Max Differential Analog Input Channels32
Analog Input Resolution24 bits
Discrete Low-Pass Filter2 Hz, 20 Hz, 200 Hz, 1 kHz, 2 kHz
FilteringAnti-Alias
SOHO Assistant
Ask about this exact model, a replacement, accessory, driver, rental or repair question.
Ask about specifications, compatibility, availability, rental or repair.
Ask SOHO Assistant
Overview

Product overview

Key product information and technical features.

The PXIe-4302 is a filtered analog input module for PXI Express measurement systems. Its 32 differential inputs use an A/D converter per channel to acquire signals simultaneously at up to 5 kS/s per channel.

Selectable digital filtering per channel allows acquisition settings to be tailored to the measurement. The module supports up to four different sample rates and triggering configurations concurrently, with NI-DAQmx providing hardware configuration and measurement support.

  • 32 differential analog input channels with 24-bit resolution.
  • Simultaneous sampling at up to 5 kS/s per channel.
  • Selectable ±0.1 V and ±10 V analog input ranges.
  • Anti-alias filtering and discrete low-pass filter settings of 2 Hz, 20 Hz, 200 Hz, 1 kHz, and 2 kHz.
  • PXI Express bus interface with a DIN front connection.
Verified specifications

Technical data

Verified product specifications.

Maximum Sample Rate5 kS/s/ch
Analog Input Voltage Range-0.1 V to 0.1 V -10 V to 10 V
Maximum Number of Differential Analog Input Channels32
Analog Input Resolution24 bits
Discrete Low-Pass Filter2 Hz, 20 Hz, 200 Hz, 1 kHz, 2 kHz
FilteringAnti-Alias
Bus ConnectionPXI Express
Simultaneous SamplingYes
Analog Input Absolute Accuracy4362 μV
Front Connection TypeDIN
Operating Temperature Range0 °C to 55 °C
NI part numbers783865-01
