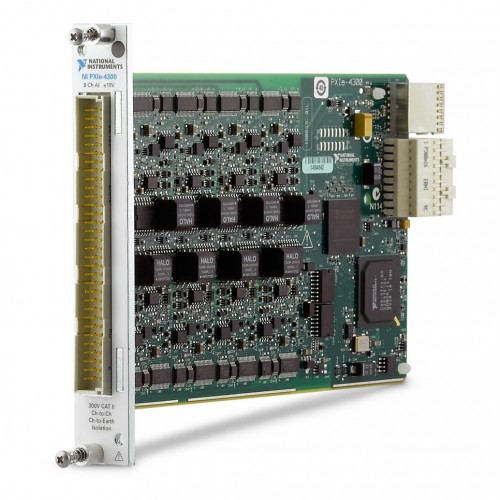

PXIe-4300
PXIe-4300 additional viewPXIe-4300 additional viewPXIe-4300 additional viewPXIe-4300 additional viewPXIe-4300 additional view
25 images: additional views below.Click to enlarge
NI (National Instruments) · PXI Express

PXIe-4300

The NI PXIe-4300, part number 781337-01, is an 8-channel PXI Express analog input module with 16-bit resolution, simultaneous sampling at up to 250 kS/s per channel, and 300 V channel-to-channel isolation.

ManufacturerNI (National Instruments)
ModelPXIe-4300
Part Number781337-01
Product Type16-Bit, 8-Channel, 250 kS/s, 300 V, Ch-Ch Isolated PXI Analog Input Module
● Available to Order
Condition: confirmed per unit

Request current pricing and lead time for this model. Our team will confirm the exact equipment configuration and condition.

Fast RFQ

Quote: PXIe-4300

We will reply by email.
Free Shippingfull policy linked
30-Day Warrantystandard coverage
30-Day Returnspolicy applies
Technical Supportmodel & compatibility help
Maximum Sample Rate250 kS/s/ch
Analog Input Voltage Range-1 V to 1 V, -2 V to 2 V, -5 V to 5 V, -10 V to 10 V, -30 V to 30 V
Analog Input Voltage Range (cont. 2)-60 V to 60 V, -150 V to 150 V, -300 V to 300 V
Analog Input Isolation300 V Ch-Ch Isolation
Max Differential Analog Input Channels8
Analog Input Resolution16 bits
SOHO Assistant
Ask about this exact model, a replacement, accessory, driver, rental or repair question.
Ask about specifications, compatibility, availability, rental or repair.
Ask SOHO Assistant
Overview

Product overview

Key product information and technical features.

The PXIe-4300 combines data acquisition and signal conditioning for voltage measurements in a PXI Express system. Its eight differential inputs support simultaneous sampling, allowing channels to be acquired together rather than scanned sequentially.

Selectable input ranges span ±1 V through ±300 V. The module provides 300 V channel-to-channel isolation and programmable Butterworth low-pass filtering with 10 kHz and 100 kHz settings.

  • Eight differential analog input channels with simultaneous sampling.
  • 16-bit resolution with a maximum sample rate of 250 kS/s per channel.
  • Eight selectable voltage ranges: ±1, ±2, ±5, ±10, ±30, ±60, ±150 and ±300 V.
  • 300 V channel-to-channel isolation.
  • Butterworth low-pass filtering with 10 kHz and 100 kHz settings.
  • PXI Express bus interface and DIN front connection.
Verified specifications

Technical data

Verified product specifications.

Maximum Sample Rate250 kS/s/ch
Analog Input Voltage Range-1 V to 1 V, -2 V to 2 V, -5 V to 5 V, -10 V to 10 V, -30 V to 30 V
Analog Input Voltage Range (cont. 2)-60 V to 60 V, -150 V to 150 V, -300 V to 300 V
Analog Input Isolation300 V Ch-Ch Isolation
Maximum Number of Differential Analog Input Channels8
Analog Input Resolution16 bits
Discrete Low-Pass Filter10 kHz, 100 kHz
FilteringButterworth
Bus ConnectionPXI Express
Simultaneous SamplingYes
Analog Input Absolute Accuracy2460 μV
Front Connection TypeDIN
Operating Temperature Range0 °C to 55 °C
NI part numbers781337-01
Condition & included items

What the actual unit includes

Confirm condition, included accessories and revision before ordering.

Condition

Confirmed per unit.

Included

Device / accessories confirmed in quote.

Revision

Exact revision confirmed when relevant.

Compatibility

Complete the measurement chain

Review system components and compatibility requirements.

NI

Manufacturer

PXI Express

Bus Connection

PXIe-4300

This product

Platform shown as listed by NI. Confirm controller, chassis and software fit for your system with NI before integration.
Manuals & software

Technical resources

Manuals, software and technical resources for this model.

Getting Started (NI)Getting Started · ni.com
Open →
Getting Started (NI)Getting Started · ni.com
Open →
Letter Of Volatility (NI)Letter Of Volatility · ni.com
Open →
Dimensional Drawings (NI)Dimensional Drawings · ni.com
Open →
Product Page (NI)Product Page · ni.com
Open →
Shipping, warranty & returns

Commercial terms

Review shipping, warranty and return terms before ordering.

Shipping
Free Shipping. Full policy terms apply.
Warranty
30-Day Warranty. Standard coverage applies.
Returns
30-Day Returns. Return policy applies.
Price / Availability
Contact SOHO ProLab for current quote and availability.
Lifecycle services

Source, rent or repair the exact model

Choose pricing, rental or repair for this exact model.

Get Price

Current price, availability and exact unit details.

Rent This Model

Request the exact model or a suitable alternative.

Repair This Model

Send the model and failure symptoms for review.

Explore equipment

Data Acquisition and Control Systems

Shipping, warranty and returns

FAQ

Product-specific questions

Product-specific answers based on available technical information.

What is the NI part number for the PXIe-4300?

The supplied verified catalog data lists NI part number 781337-01.

Does the PXIe-4300 sample its channels simultaneously?

Yes. It provides eight differential analog input channels with simultaneous sampling at up to 250 kS/s per channel.

What voltage input ranges does the PXIe-4300 offer?

The selectable ranges are ±1, ±2, ±5, ±10, ±30, ±60, ±150 and ±300 V. Consult NI documentation for connection requirements and applicable safety limits.

What filtering does the PXIe-4300 provide?

It provides Butterworth low-pass filtering with discrete 10 kHz and 100 kHz settings.
