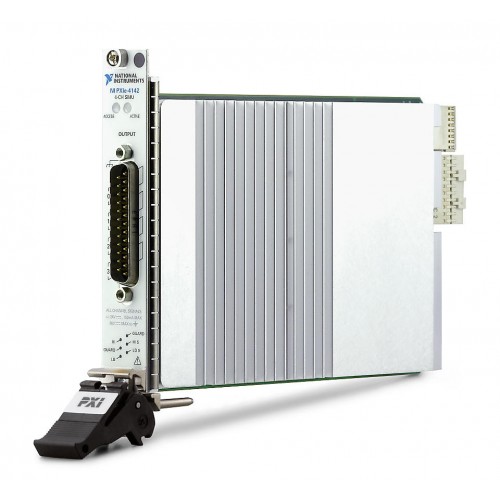

NI (National Instruments) PXIe-4142 PXIe, 4-Channel, ±24 V, 150 mA PXI Source Measure Unit
1 image: Click to enlarge
NI (National Instruments) · PXI

PXIe-4142

The NI PXIe-4142 is a 4-channel PXI Express source measure unit with a voltage range of -24 V to 24 V and a DC current range of -150 mA to 150 mA. It provides 4-quadrant operation and integrated remote 4-wire sensing on each channel.

ManufacturerNI (National Instruments)
ModelPXIe-4142
Part Number782430-01
Product TypePXIe, 4-Channel, ±24 V, 150 mA PXI Source Measure Unit
● Available to Order
Condition: confirmed per unit

Request current pricing and lead time for this model. Our team will confirm the exact equipment configuration and condition.

Fast RFQ

Quote: PXIe-4142

We will reply by email.
Free Shippingfull policy linked
30-Day Warrantystandard coverage
30-Day Returnspolicy applies
Technical Supportmodel & compatibility help
Current Sensitivity100 pA
Number of SMU Channels4
Voltage Range-24 V to 24 V
Max DC Sink Power3.6 W
Max DC Source Power3.6 W
SourceAdaptNo
SOHO Assistant
Ask about this exact model, a replacement, accessory, driver, rental or repair question.
Ask about specifications, compatibility, availability, rental or repair.
Ask SOHO Assistant
Overview

Product overview

Key product information and technical features.

The module supports transient device characterization and I-V characterization of devices under test. Its high-speed sequencing engine can synchronize the SMUs with each other or with switches and high-speed digital test modules.

  • Four SMU channels with 4-quadrant operation.
  • Voltage range of -24 V to 24 V and DC current range of -150 mA to 150 mA.
  • 100 pA current sensitivity.
  • Integrated remote 4-wire sensing on each channel.
  • High-speed sequencing for synchronized measurements with other SMUs, switches, and high-speed digital test modules.
  • Maximum DC source power and maximum DC sink power of 3.6 W.
Verified specifications

Technical data

Verified product specifications.

Current Sensitivity100 pA
Number of SMU Channels4
