NI (National Instruments) PXIe-4141 PXIe, 4-Channel, ±10 V, 100 mA, Precision PXI Source Measure Unit
1 image: Click to enlarge
NI (National Instruments) · PXI

PXIe-4141

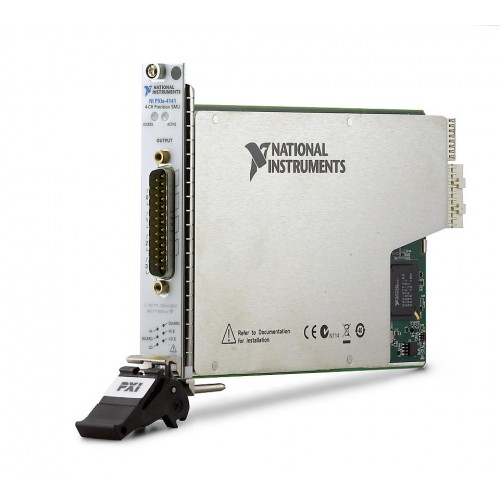

The NI PXIe-4141, part number 781743-01, is a PXI Express 4-channel precision source measure unit with a voltage range of -10 V to 10 V and a DC current range of -100 mA to 100 mA.

ManufacturerNI (National Instruments)
ModelPXIe-4141
Part Number781743-01
Product TypePXIe, 4-Channel, ±10 V, 100 mA, Precision PXI Source Measure Unit
● Available to Order
Condition: confirmed per unit

Request current pricing and lead time for this model. Our team will confirm the exact equipment configuration and condition.

Fast RFQ

Quote: PXIe-4141

We will reply by email.
Free Shippingfull policy linked
30-Day Warrantystandard coverage
30-Day Returnspolicy applies
Technical Supportmodel & compatibility help
Current Sensitivity10 pA
Number of SMU Channels4
Voltage Range-10 V to 10 V
SourceAdaptYes
Max DC Sink Power1 W
Max DC Source Power1 W
SOHO Assistant
Ask about this exact model, a replacement, accessory, driver, rental or repair question.
Ask about specifications, compatibility, availability, rental or repair.
Ask SOHO Assistant
Overview

Product overview

Key product information and technical features.

The PXIe-4141 is a 4-channel source measure unit for high-pin-count applications. It provides 4-quadrant operation and integrated remote 4-wire sensing on each channel.

Its sequencing engine supports synchronization between SMUs or with other instruments for device characterization. SourceAdapt technology allows the response to be tuned to the load for stability and reduced transients.

  • Four SMU channels in a PXI Express instrument.
  • Voltage range of -10 V to 10 V and DC current range of -100 mA to 100 mA.
  • Current sensitivity of 10 pA.
  • Maximum DC source power and maximum DC sink power of 1 W.
  • SourceAdapt technology for tuning response to the load.
  • 4-quadrant operation with remote 4-wire sensing on each channel.
Verified specifications

Technical data

Verified product specifications.

Current Sensitivity10 pA
Number of SMU Channels4
Voltage Range-10 V to 10 V
SourceAdaptYes
Max DC Sink Power1 W
Max DC Source Power1 W
DC Current Range-100 mA to 100 mA
Bus ConnectorPXI Express
Supported Hardware PlatformPXI
Bus ConnectionPXI Express
NI part numbers781743-01
