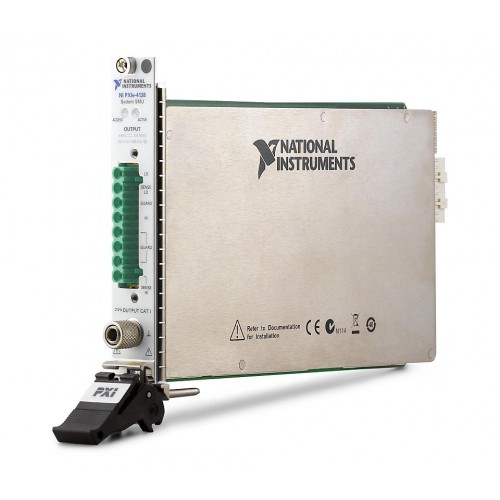

NI (National Instruments) PXIe-4138 PXIe, ±60 V, ±3 A DC, 20 W DC, 1 pA System PXI Source Measure Unit
1 image: Click to enlarge
NI (National Instruments) · PXI

PXIe-4138

The NI PXIe-4138 is a single-channel PXI Express source measure unit (SMU) with a -60 V to 60 V voltage range, a -3 A to 3 A DC current range, and 1 pA current sensitivity.

ManufacturerNI (National Instruments)
ModelPXIe-4138
Part Number782856-01
Product TypePXIe, ±60 V, ±3 A DC, 20 W DC, 1 pA System PXI Source Measure Unit
● Available to Order
Condition: confirmed per unit

Request current pricing and lead time for this model. Our team will confirm the exact equipment configuration and condition.

Fast RFQ

Quote: PXIe-4138

We will reply by email.
Free Shippingfull policy linked
30-Day Warrantystandard coverage
30-Day Returnspolicy applies
Technical Supportmodel & compatibility help
Current Sensitivity1 pA
Number of SMU Channels1
Voltage Range-60 V to 60 V
Max DC Sink Power12 W
Max DC Source Power20 W
SourceAdaptNo
